Accessory Delay Module

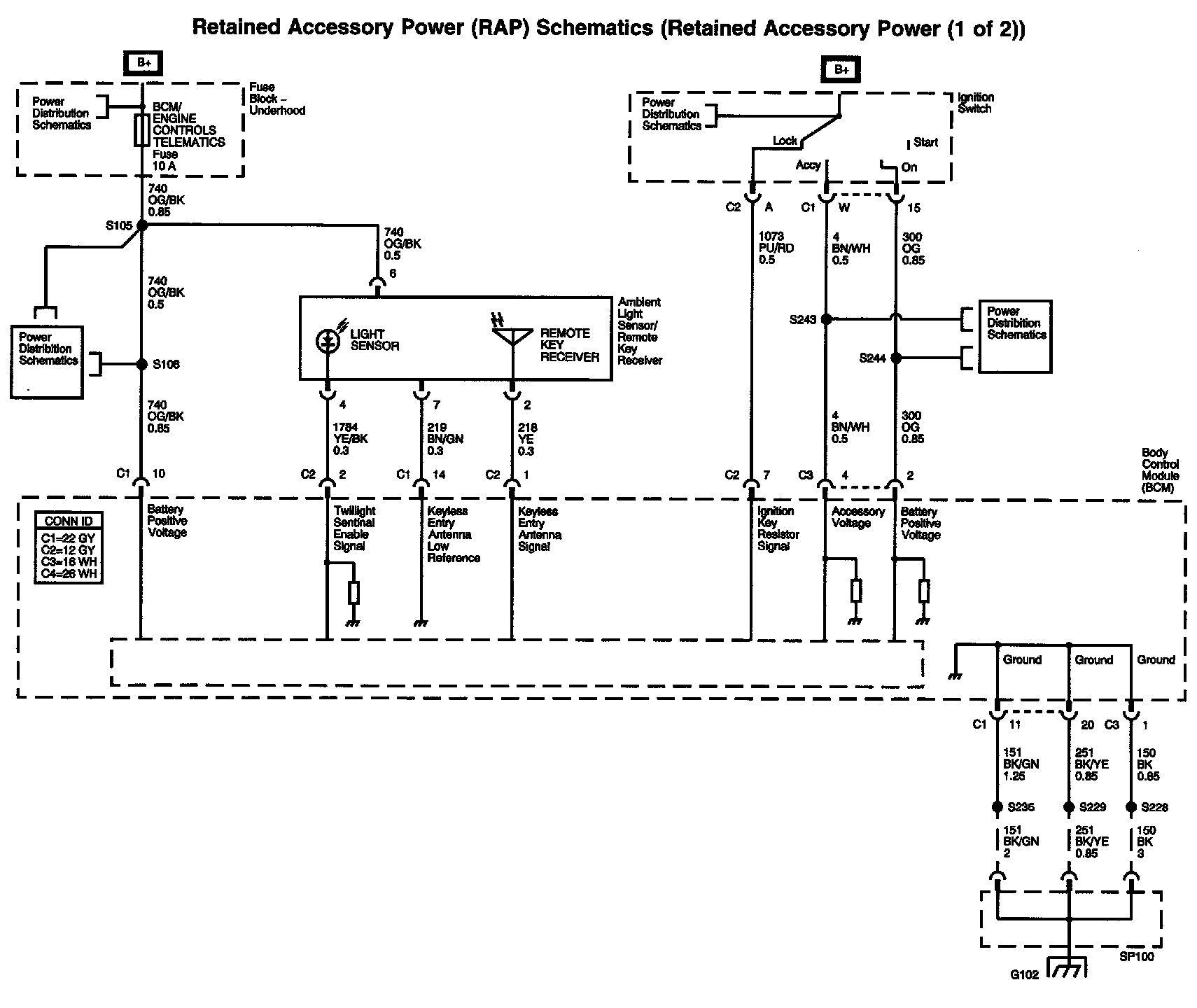

Retained Accessory Power (RAP) Diagram (1 Of 2):

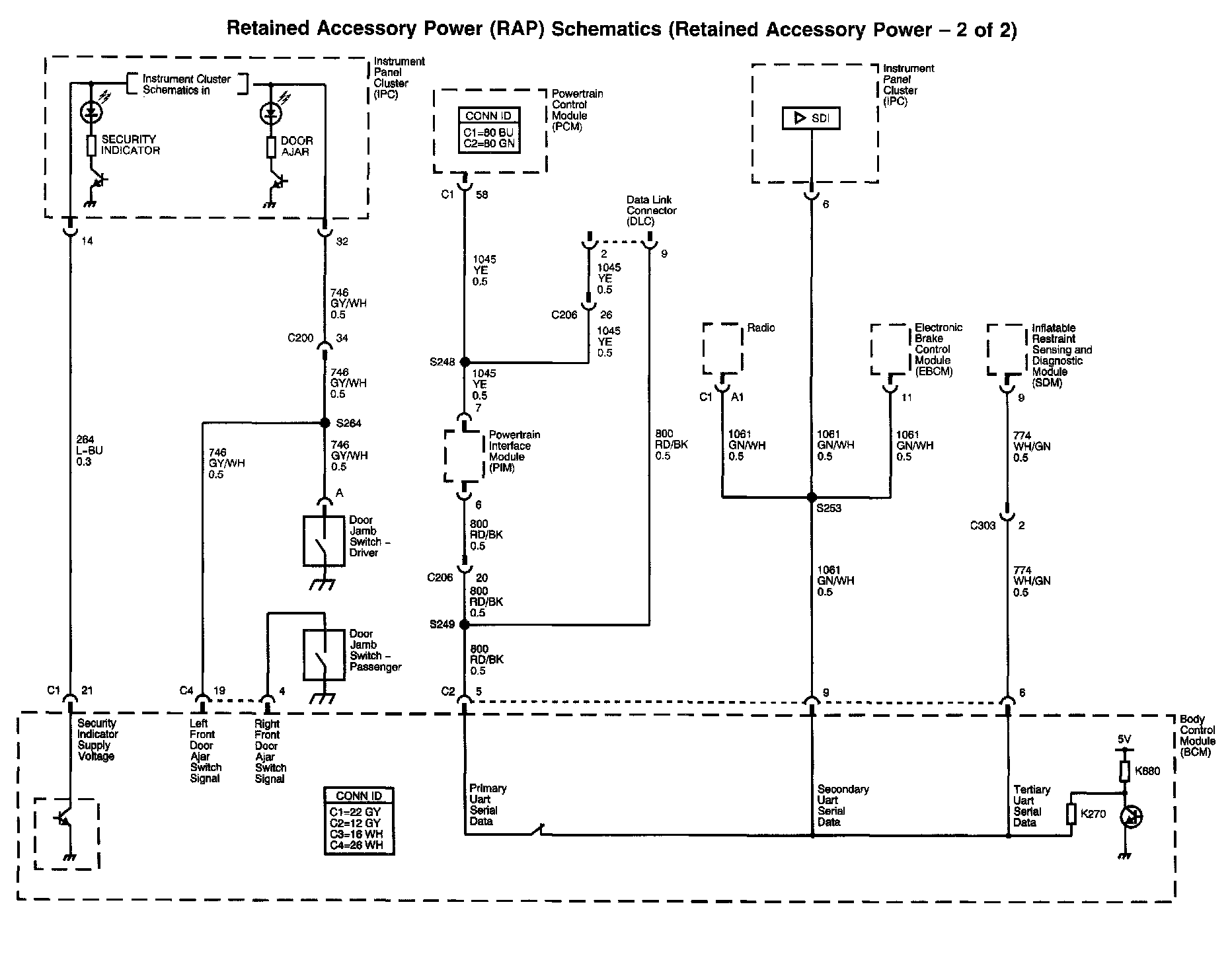

Retained Accessory Power (RAP) Diagram (2 Of 2):
