Installation Procedure

  1. Check the crankshaft rear oil gallery plug is not loose, damaged or leaking.
  2. If necessary, coat the new oil gallery plug (1) with Loctite™ 242 or equivalent.

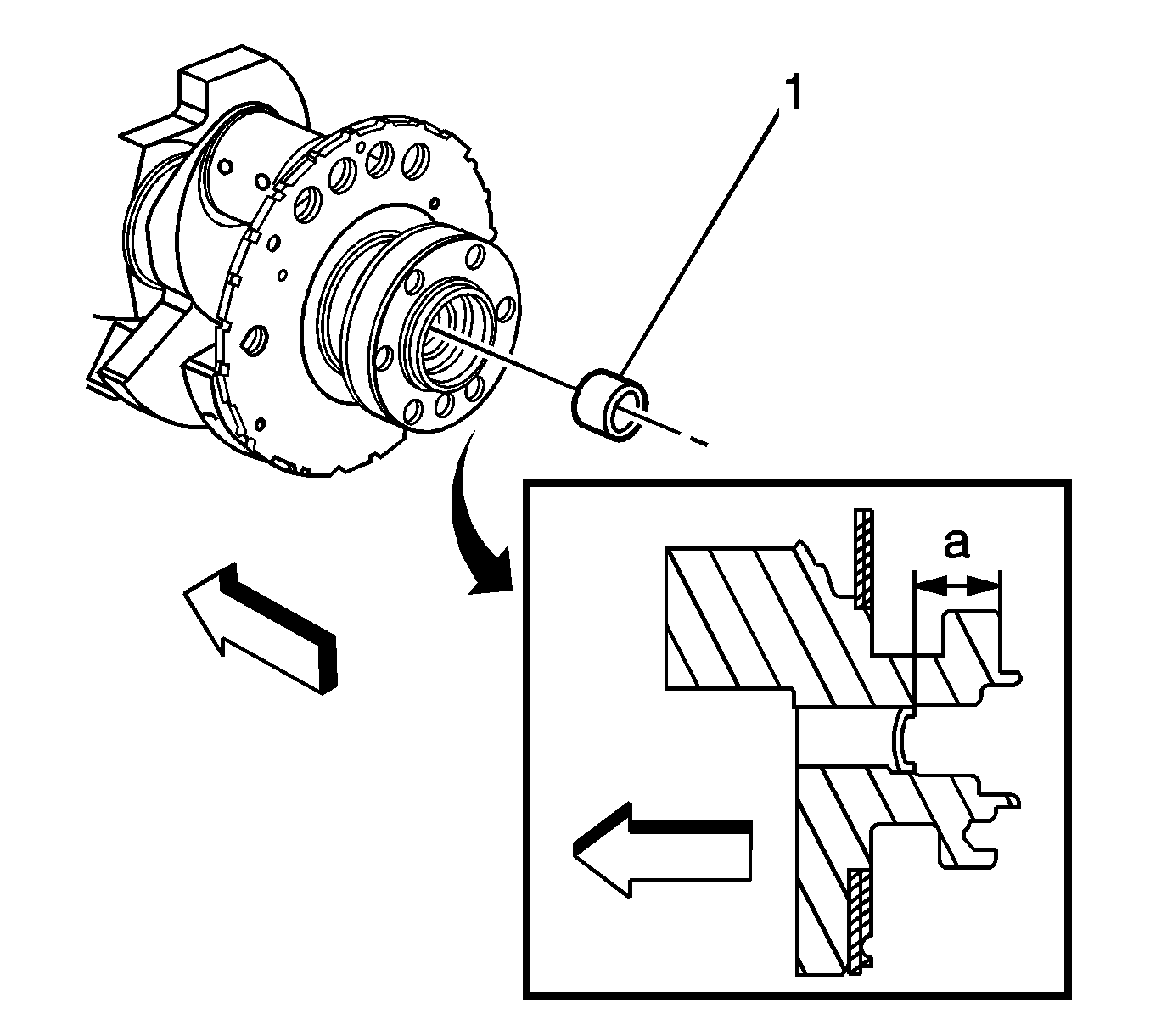

    3. Fig 1: Installing Oil Gallery Plug
    GM1349302Courtesy of GENERAL MOTORS CORP.
  3. Install the new oil gallery plug to a depth of 31.2-31.6 mm (1.22-1.24 in).
    4. Fig 2: Installing Pilot Bearing
    GM1349303Courtesy of GENERAL MOTORS CORP.
  4. Install the new pilot bearing, until flush with the crankshaft counterbore.
  5. Install the clutch. Refer to Clutch Assembly Replacement (5.7L) .
  6. Install the manual transmission in the vehicle. Refer to Transmission Replacement in Manual Transmission - Tremec 6-Speed.
