Installation Procedure

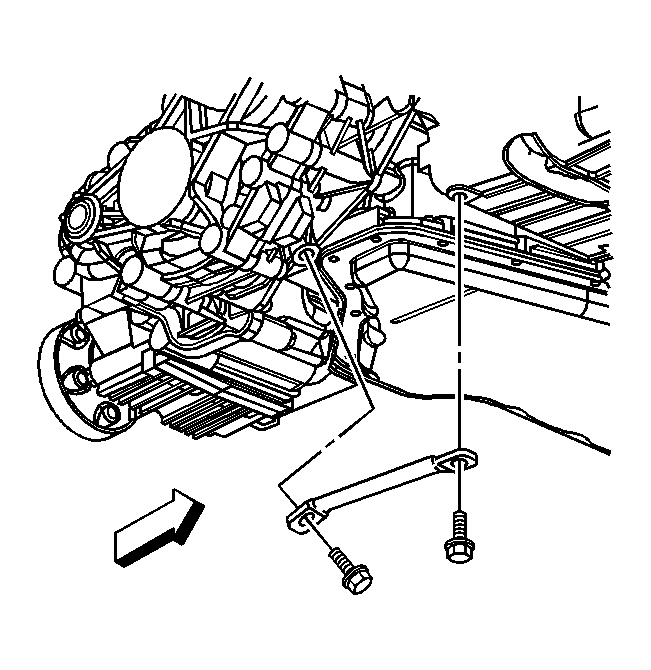

    Fig 1: View Of Transaxle Brace Bolts (LA1)
    GM821232Courtesy of GENERAL MOTORS CORP.
  1. Install the transaxle brace.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the transaxle brace bolts.

    Tighten:  Tighten the bolts to 47 N.m (35 lb ft).

  3. Lower the vehicle.
