Steering Wheel and Column Component Views

Fig 1: Center Console Component View - Pontiac

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Control Module (BCM) C2
2	Body Control Module (BCM) C1
3	Body Control Module (BCM) C0
4	Automatic Transmission Floor Shift Control
5	Fuse Block - Center Console C2
6	Fuse Block - Center Console C1

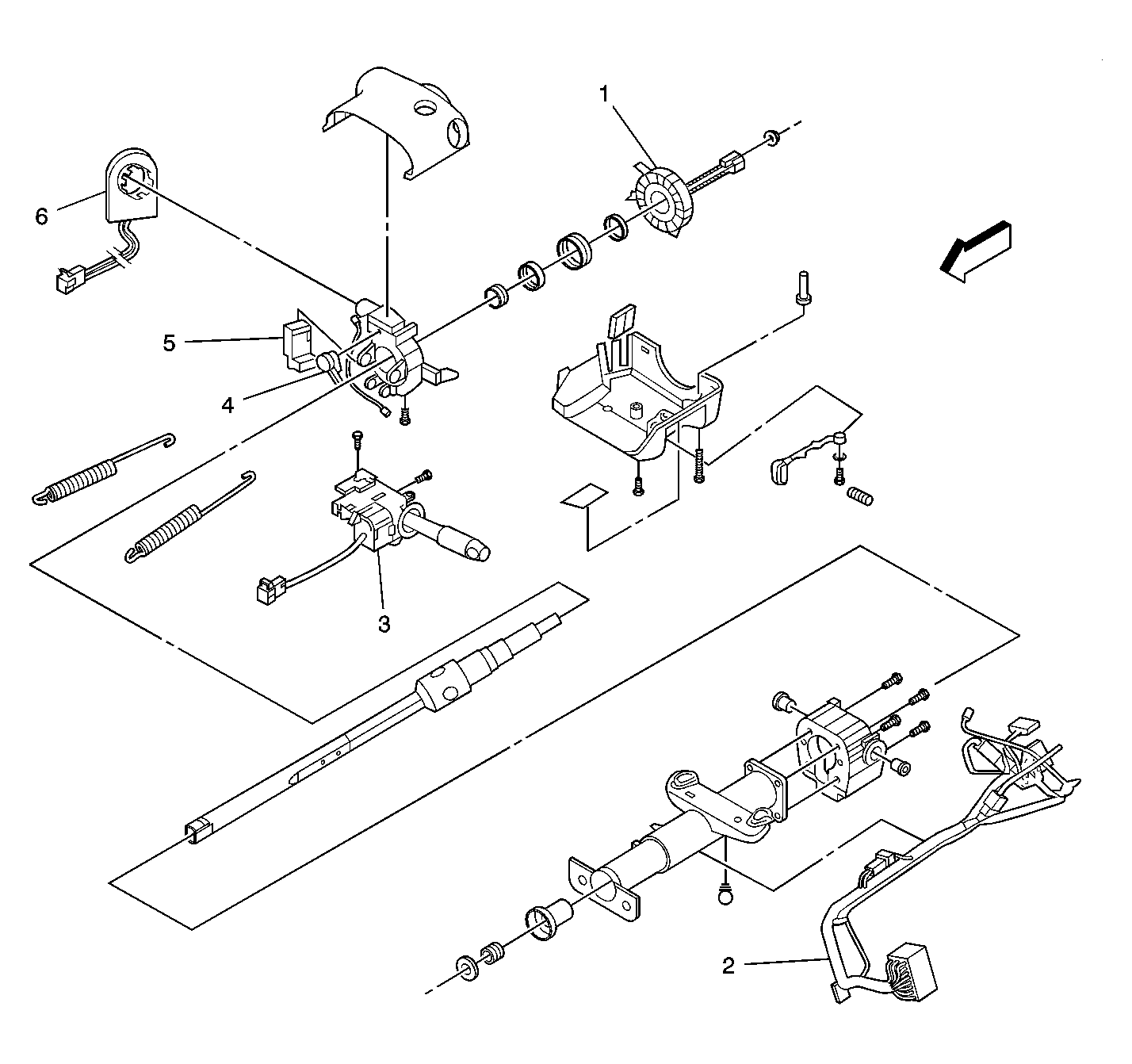

Fig 2: Steering Column Disassembled View (Pontiac)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module
2	Wire Harness Assembly
3	Multifunction Switch
4	Ignition Lock Cylinder Control Actuator
5	Ignition Switch
6	Theft Deterrent Module
