Routing Illustrations

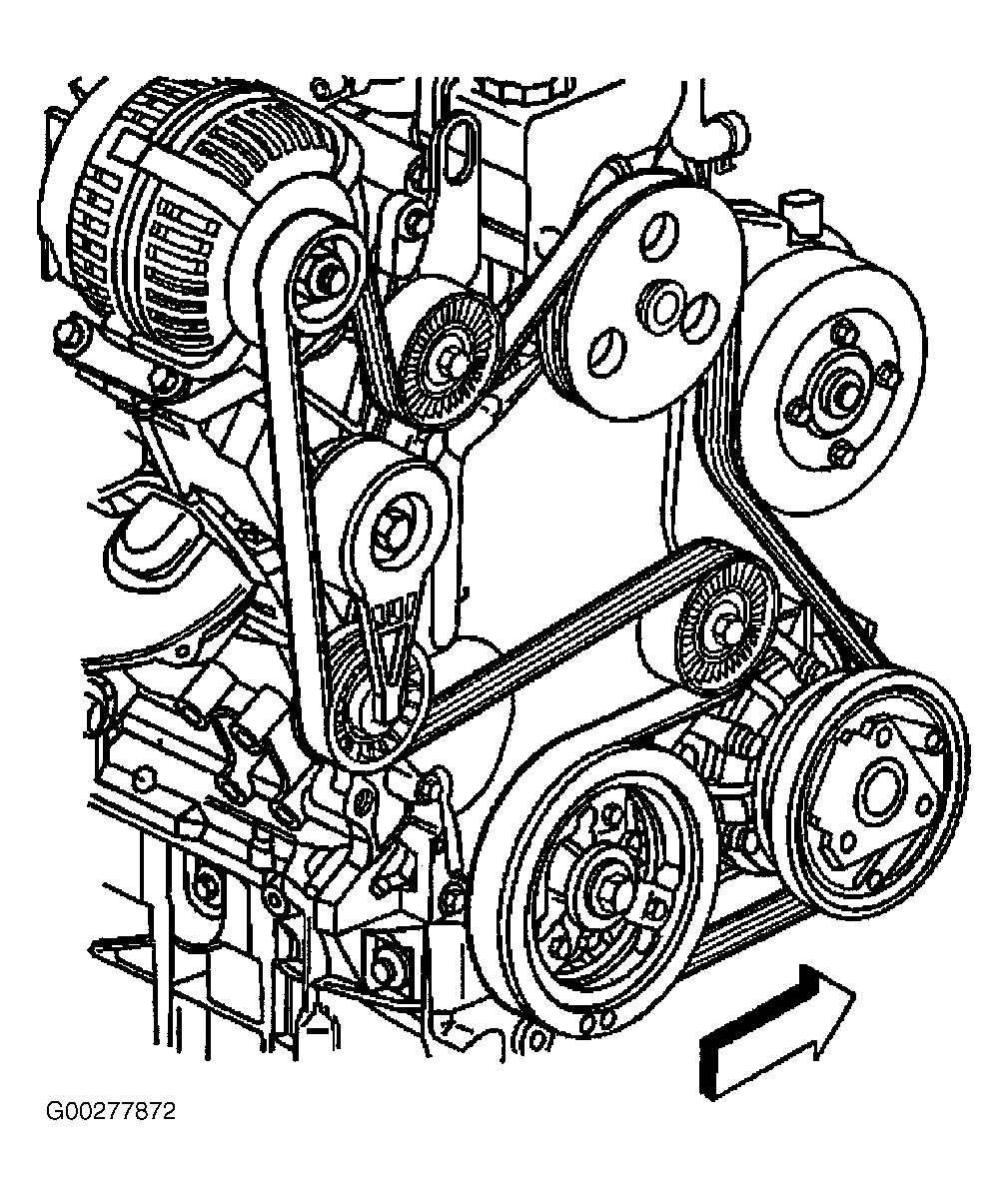

Fig 1: Drive Belt Routing (Aztek & Rendezvous - 3.4L)
G00277872Courtesy of GENERAL MOTORS CORP.

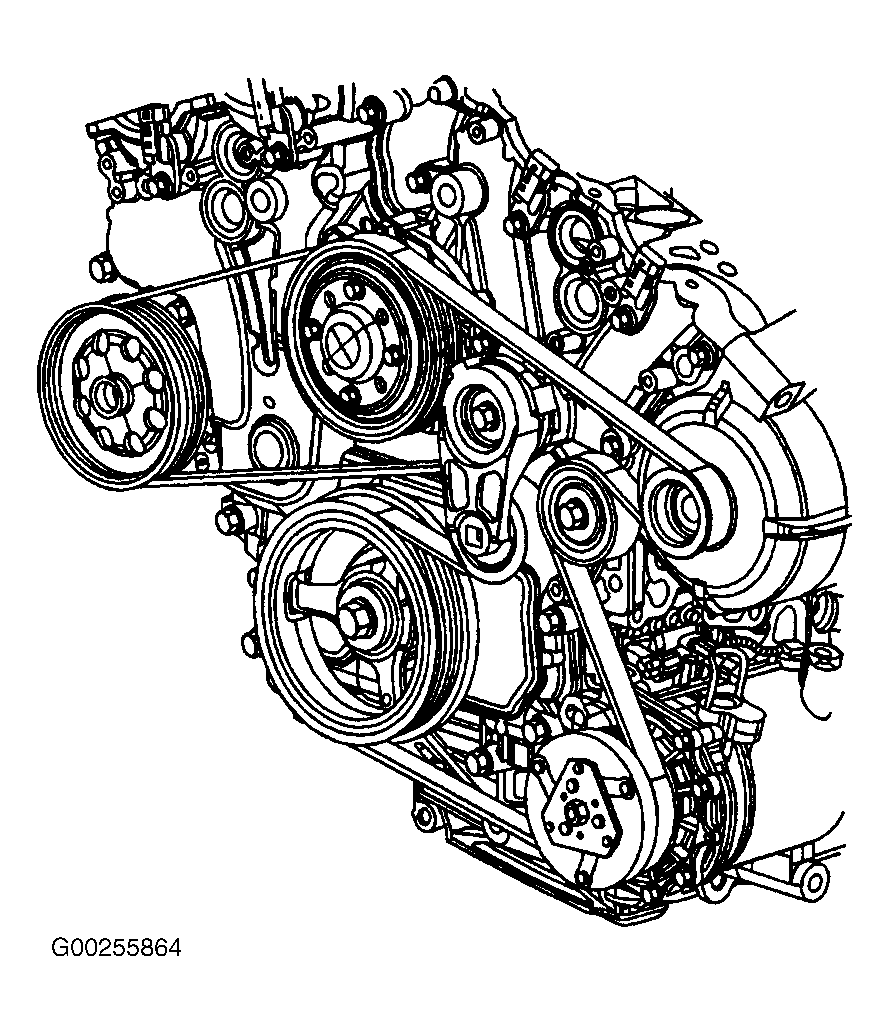

Fig 2: Drive Belt Routing (Rendezvous - 3.6L)
G00255864Courtesy of GENERAL MOTORS CORP.
