Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press the upper end of the assist rods on to the ball joint on the hood.
  2. Press the lower end of the assist rod on to the ball joint on the lower hood hinge.
  3. Remove the support from the hood.
  4. Close the hood.

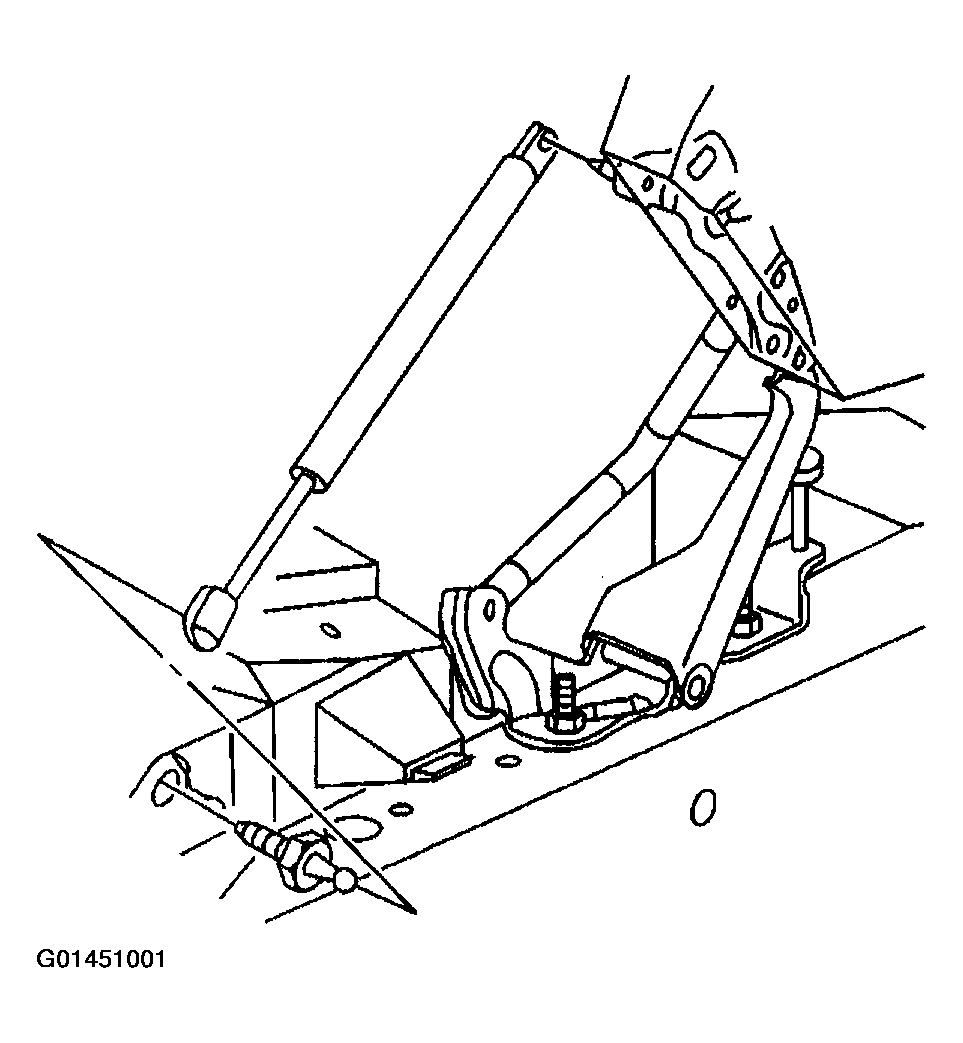

    Fig 1: Assist Rod
    G01451001Courtesy of GENERAL MOTORS CORP.
