Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Raise the door window to the full up position.
  3. Remove the rivet (3) from the inside handle.
    1. Use a center punch to drive the inside handle (2) mounting rivet (3) mandrel into the rivet head to create a pilot hole.
    2. Use a 6 mm (1/4 in) drill bit to drill out the rivet.
    3. Remove the inside handle rod (1) from the lock rod guide block.

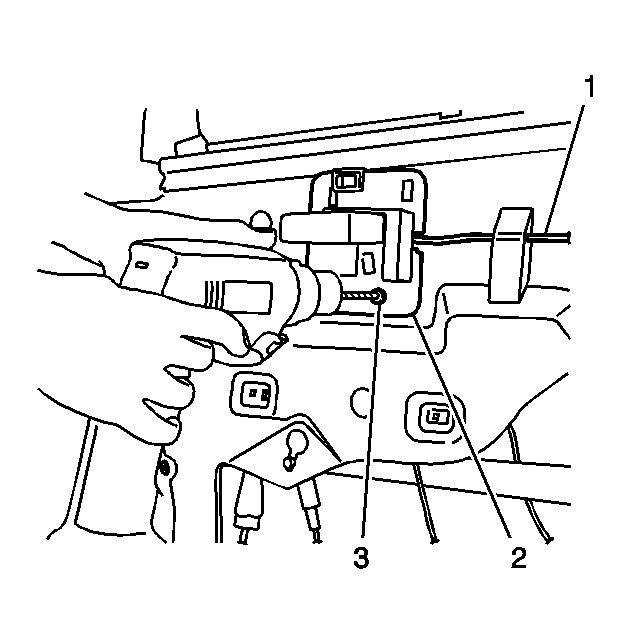

    4. Fig 1: Inside Handle Rod (Front Door)
    GM788784Courtesy of GENERAL MOTORS CORP.
  4. Remove the inside handle (2) by sliding it forward until it releases from the door.
  5. Turn the inside handle clockwise to release it from the inside handle rod.

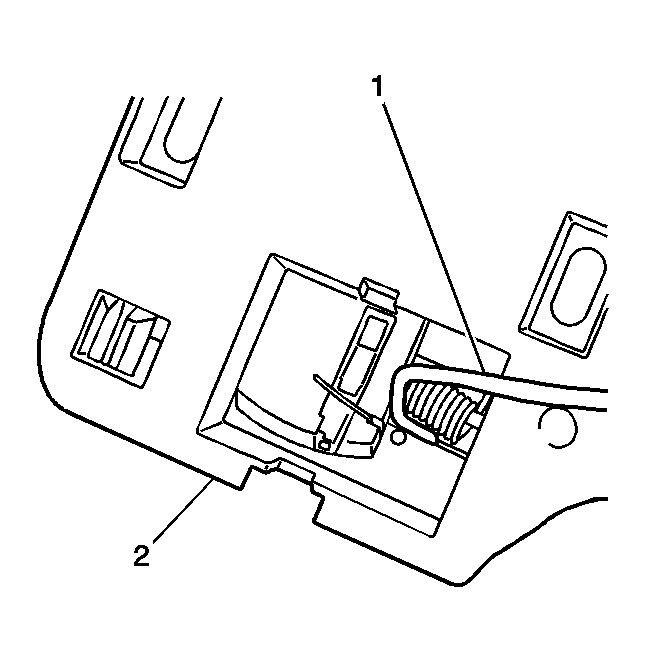

    6. Fig 2: Inside Handle (Front Door)
    GM788789Courtesy of GENERAL MOTORS CORP.
  6. Remove the inside handle from the door.
