Sunload Sensor Connector End View

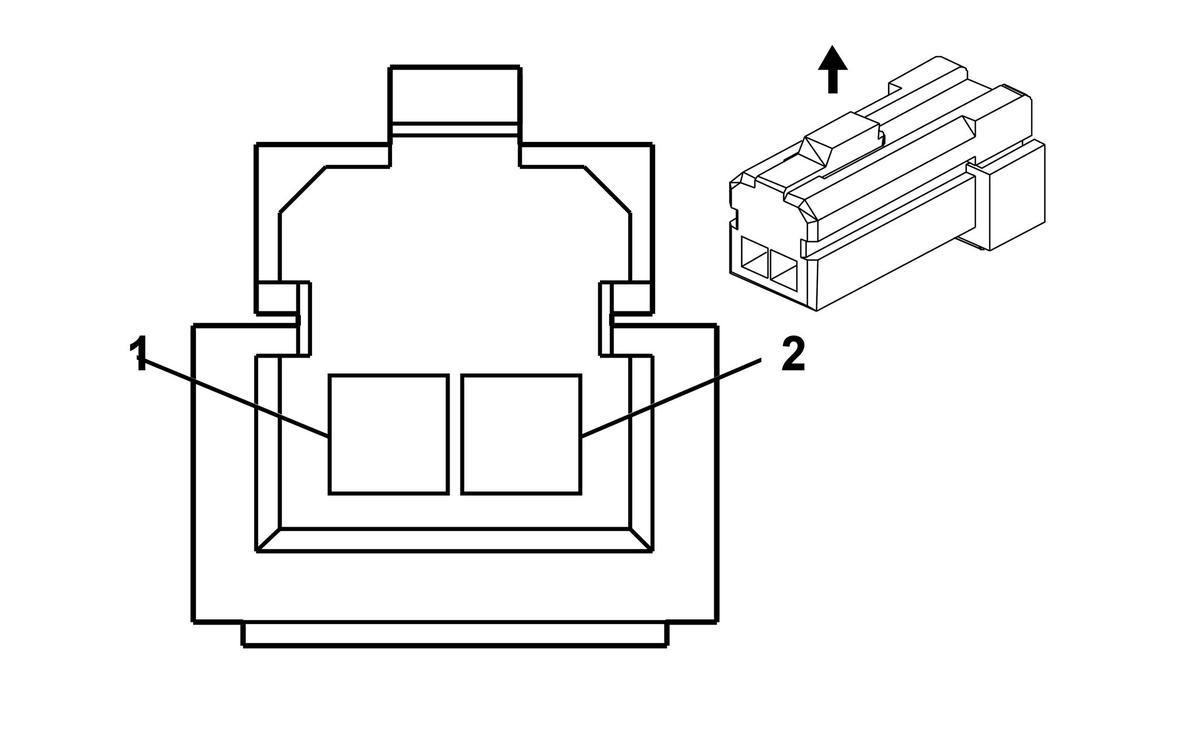

Sunload Sensor Connector End View

GM821858Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15316639
  • 2-Way F (BLK)
Pin Wire Color Circuit No. Function
1 LT BLU/BLK 590 Sunload Sensor Signal
2 BLK 552 Low Reference
