Fuse Block - Center Console - C1

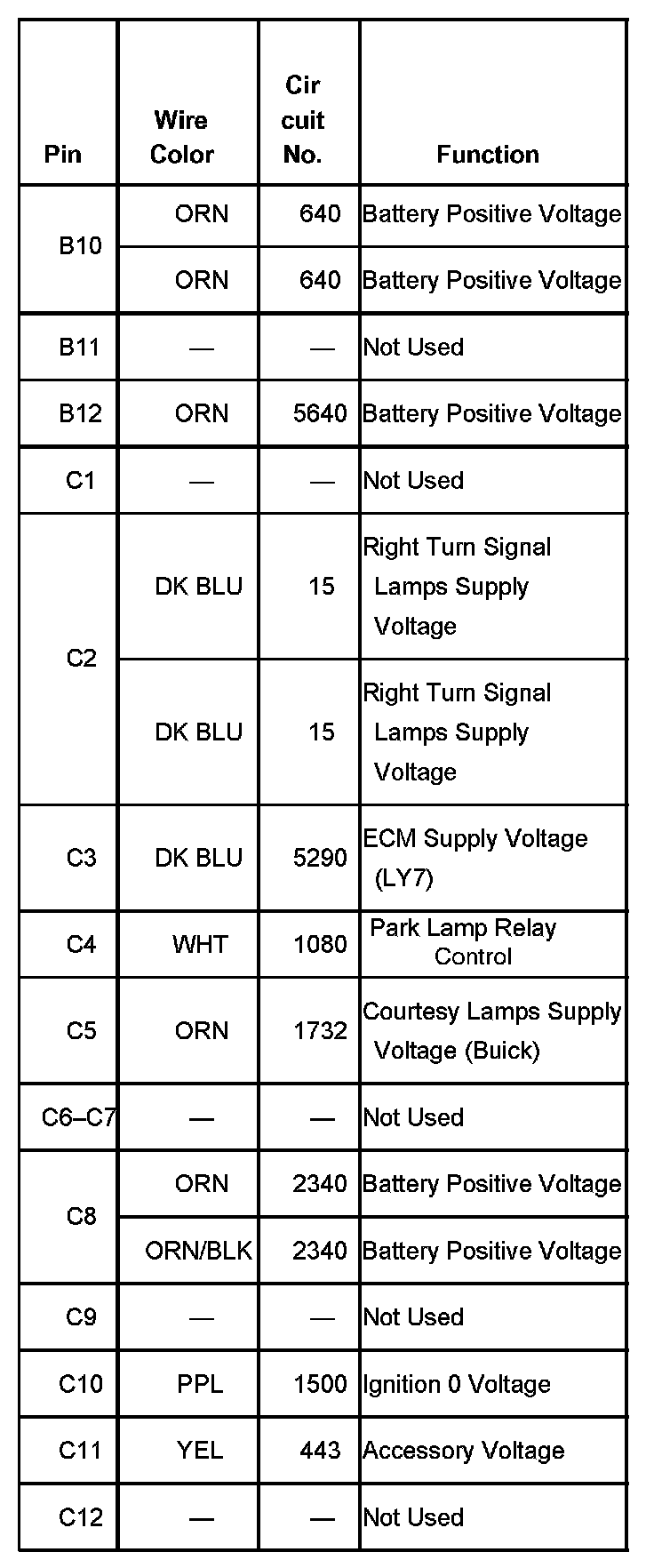

Fuse Block - Center Console - C1 Part 1:

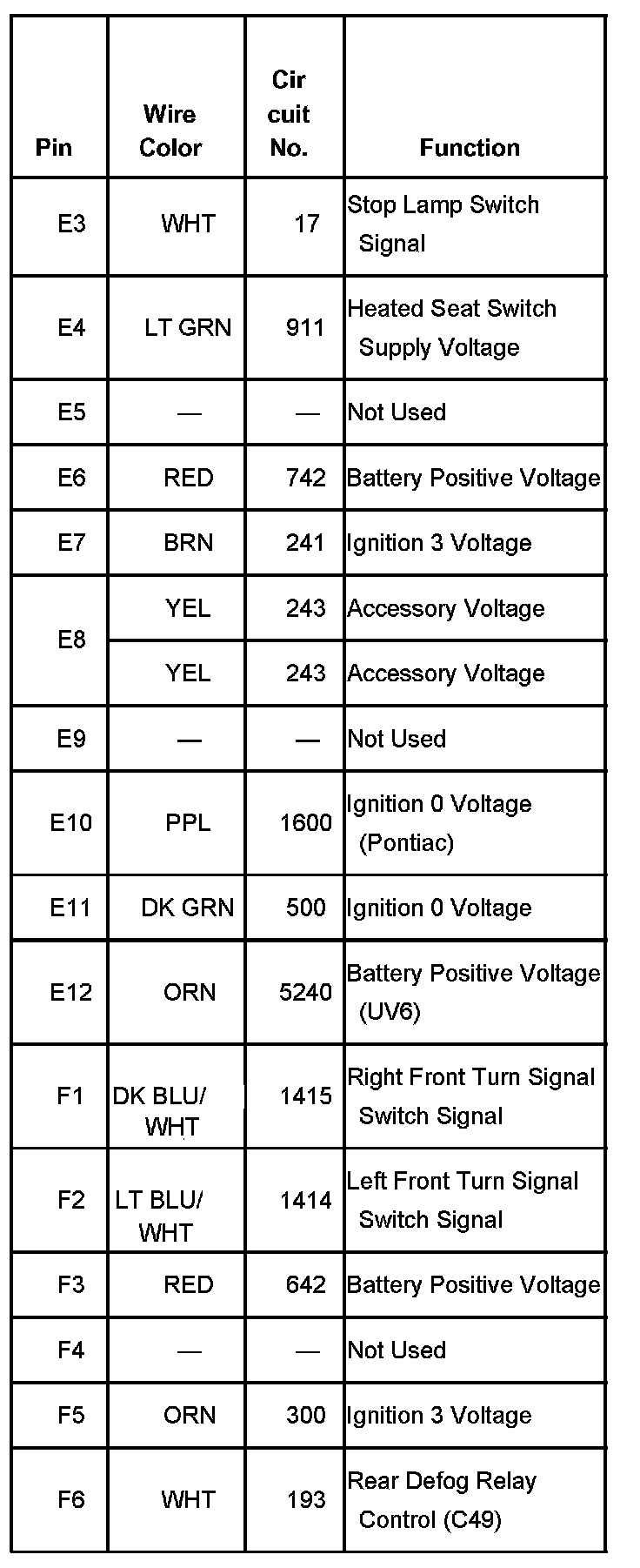

Fuse Block - Center Console - C1 Part 2:




Fuse Block - Center Console - C1 Part 3:




Fuse Block - Center Console - C1 Part 4:




Fuse Block - Center Console - C1 Part 5:




Fuel Block - Center Console - C1 Part 6:
