Power Steering Pressure Switch: Locations

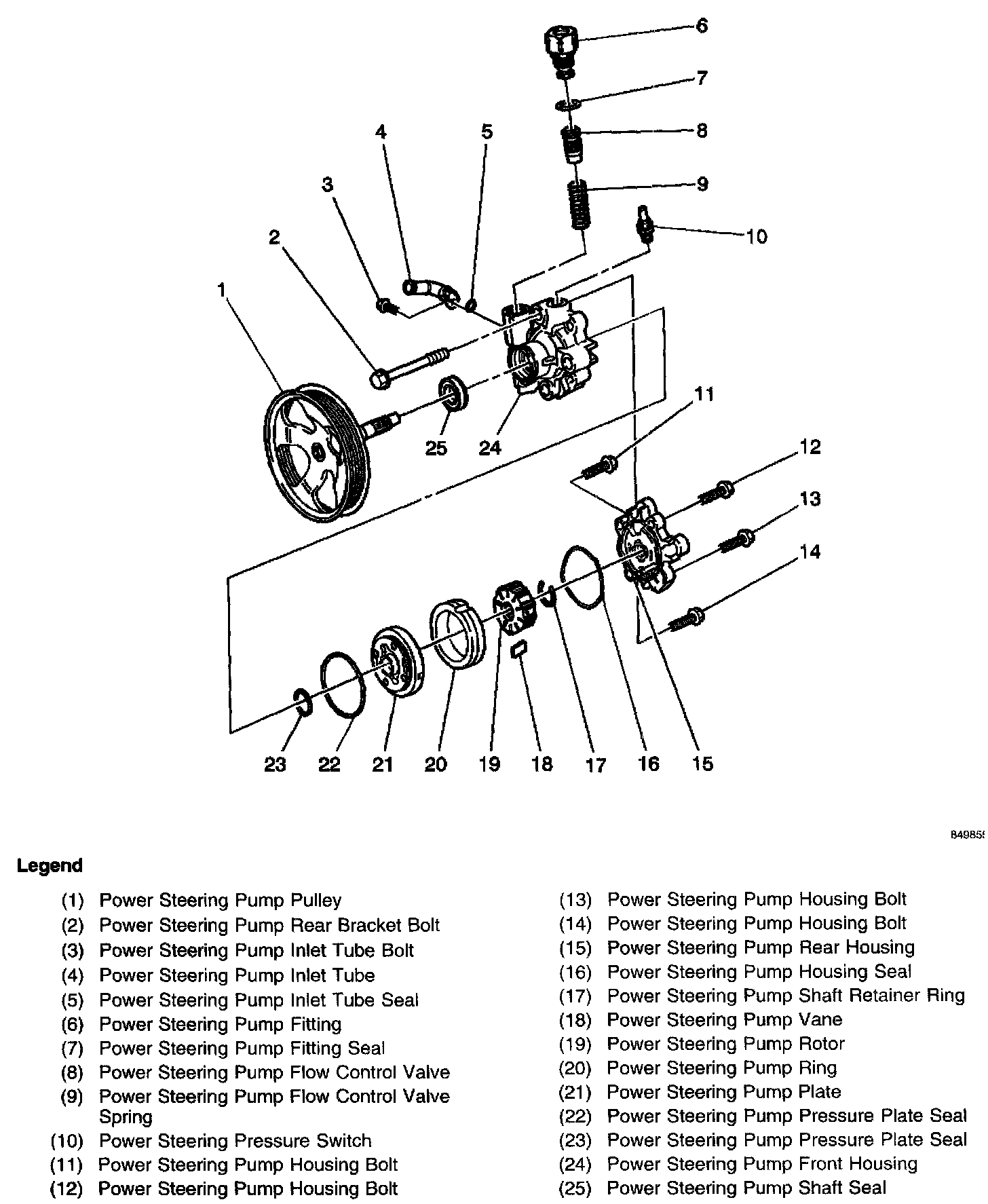

Power Steering Pump Disassembled View:



Information Sensors/Input Devices:

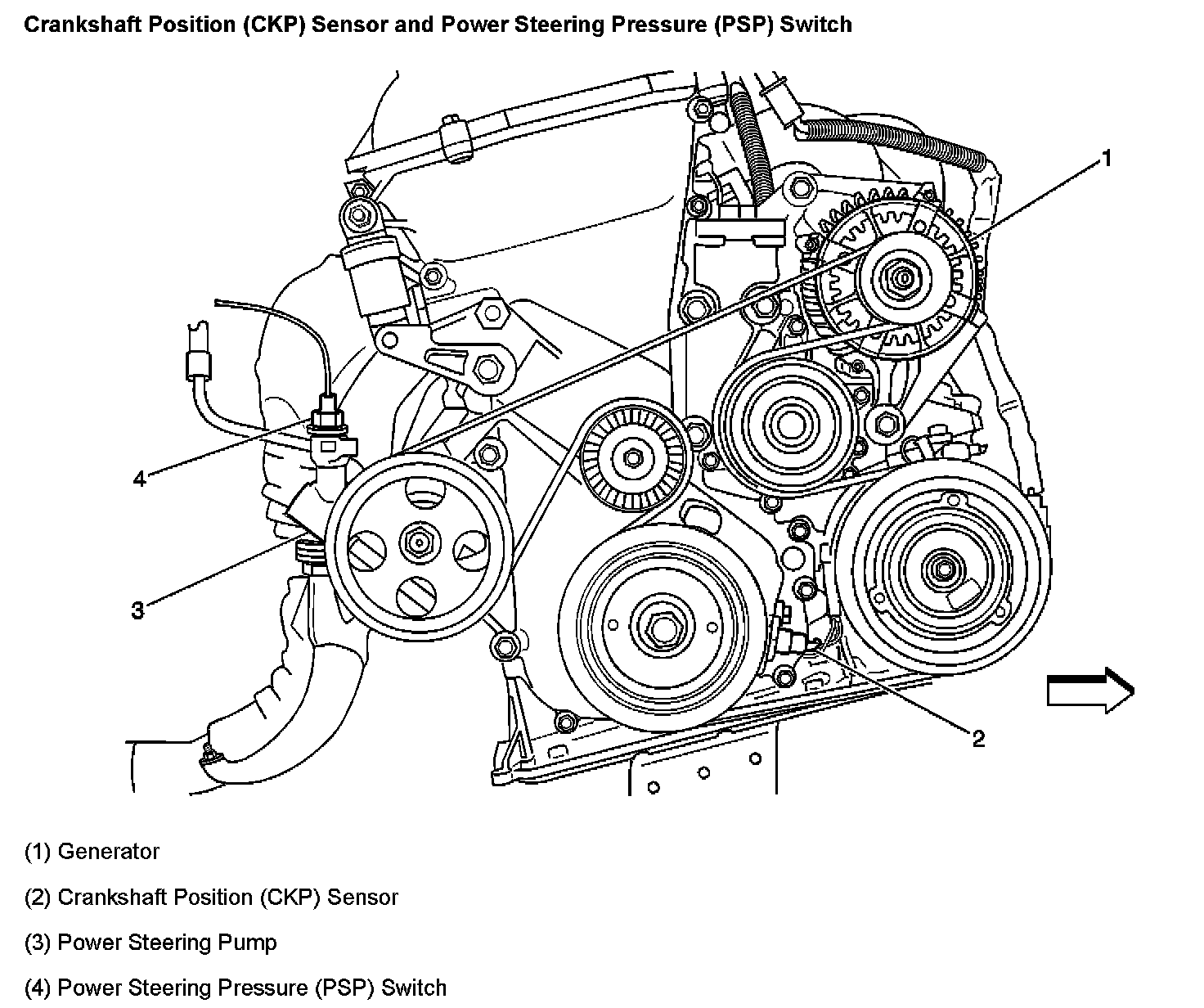

Crankshaft Position (CKP) Sensor And Power Steering Pressure (PSP) Switch:



Engine Compartment Connector Locations:
