Transfer Case - Vibe (Unit Repair)
>>
Component Locator
>>
Transfer Case Disassembled View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

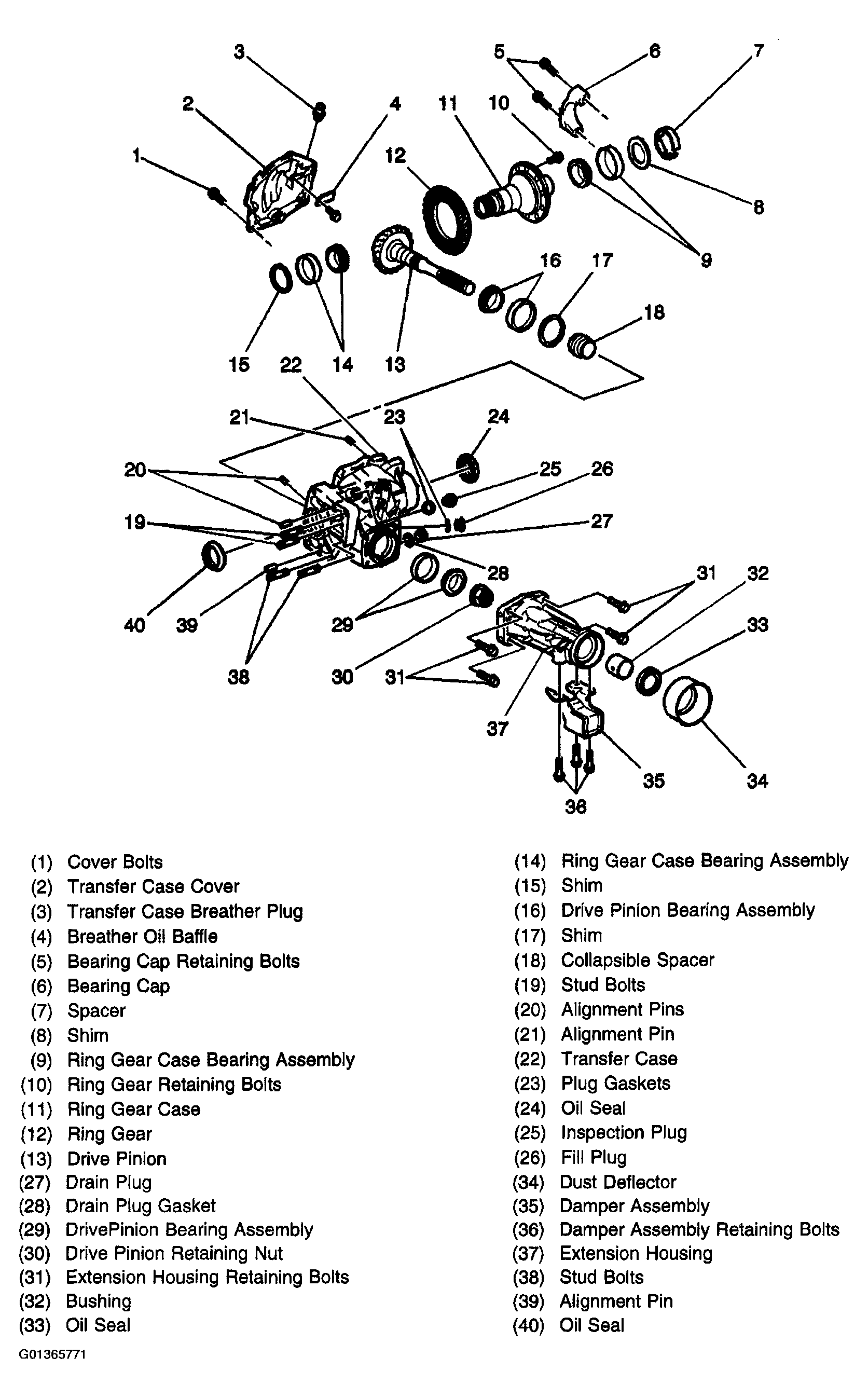

Transfer Case Disassembled View
Fig 1: Transfer Case Disassembled View
Courtesy of GENERAL MOTORS CORP.
