Engine Electrical Component Views

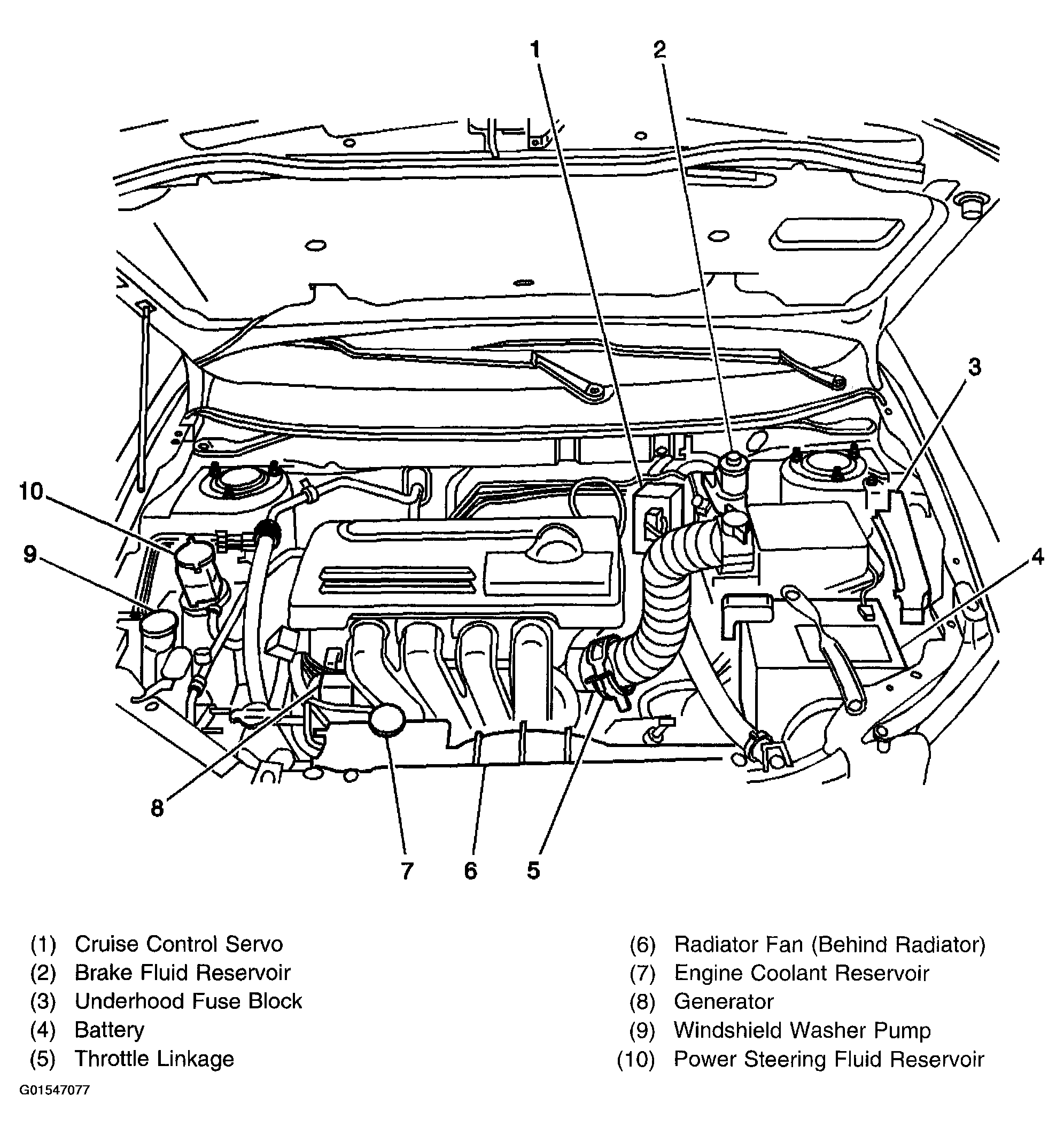

Fig 1: Locating Engine Compartment Component View
Courtesy of GENERAL MOTORS CORP.
