Installation Procedure

  1. Install the driver side inflatable restraint, if removed. Refer to REMOVAL & INSTALLATION (SIDE IMPACT AIR BAG) .
  2. Install the passenger side inflatable restraint, if removed. Refer to REMOVAL & INSTALLATION (SIDE IMPACT AIR BAG) .
  3. Install the front seat back cushion cover (1) and pad (2) to seat back frame (3). Refer to SEAT BACK COVER AND PAD REPLACEMENT - FRONT  .
  4. Install the front seat assembly. Refer to SEAT REPLACEMENT - FRONT BUCKET  .

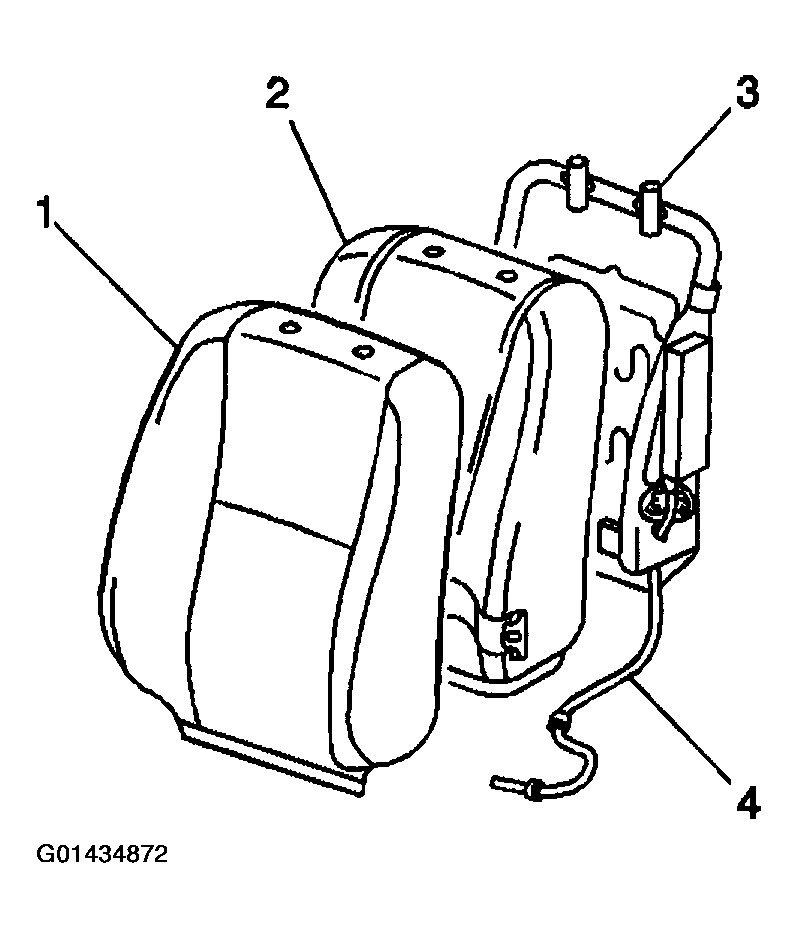

    Fig 1: Installing Front Seat Back Cushion Cover & Pad To Seat Back Frame
    G01434872Courtesy of GENERAL MOTORS CORP.
