Disassembled Views

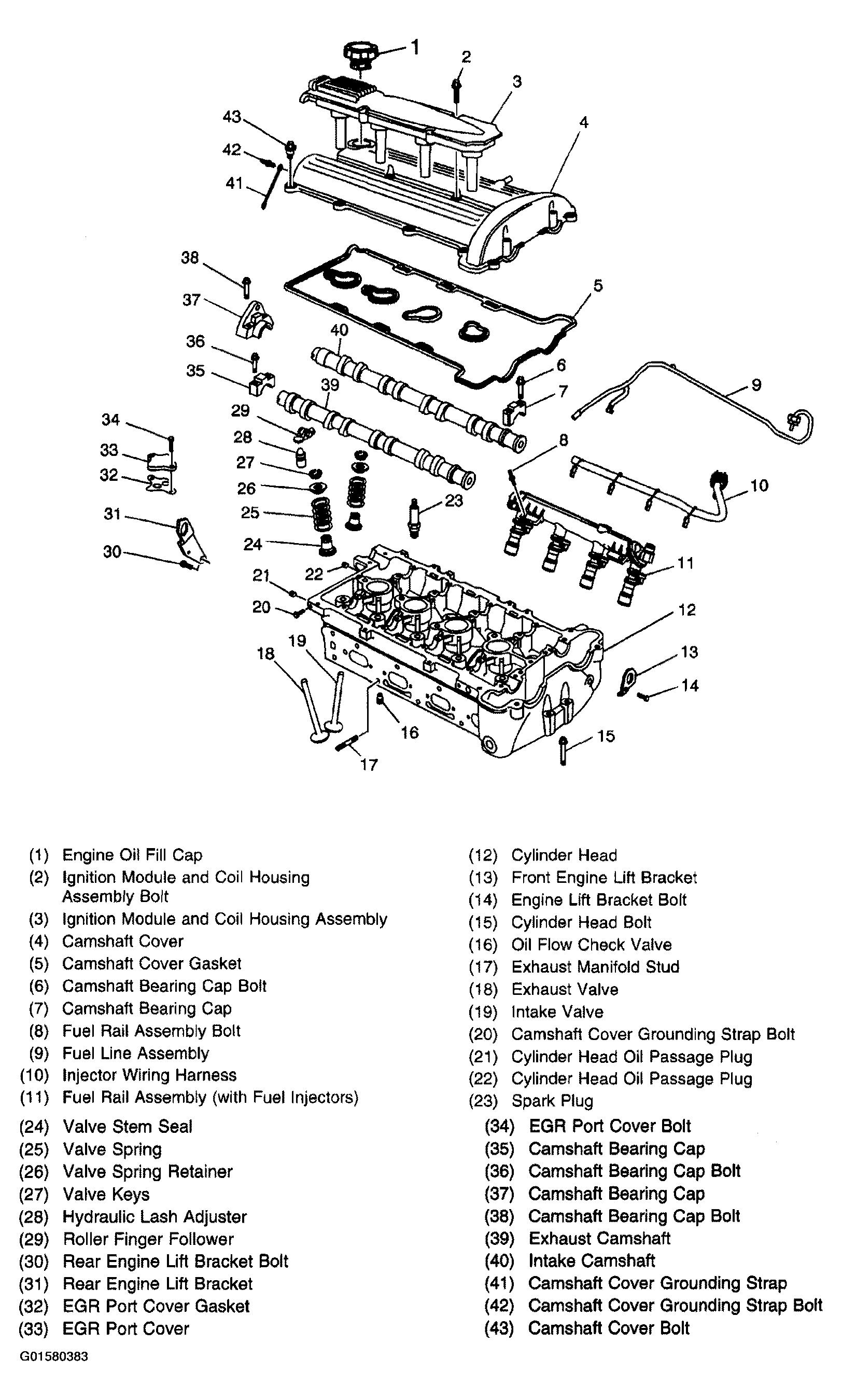

Fig 1: Cylinder Head and Components

G01580383

Courtesy of GENERAL MOTORS CORP.

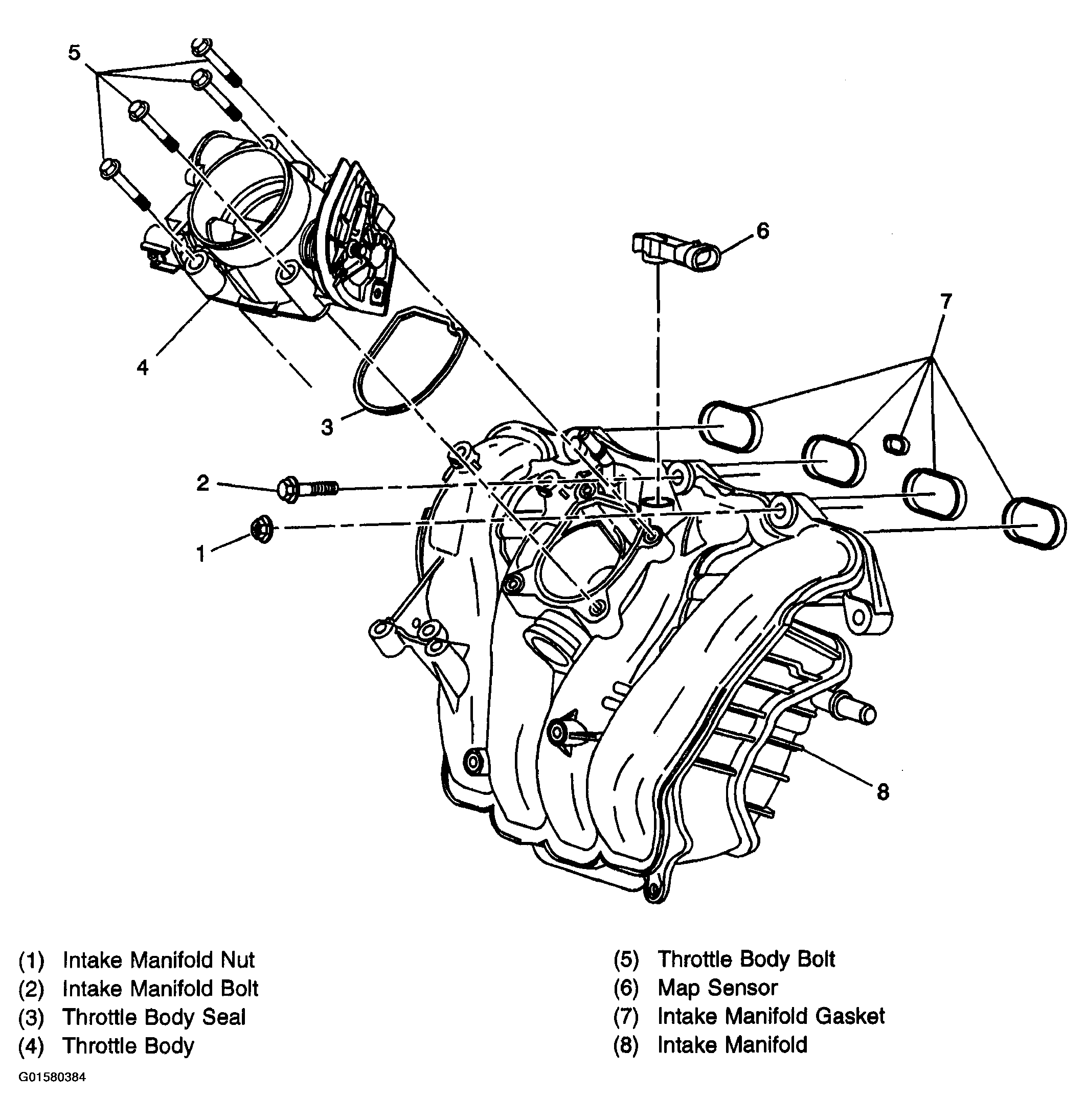

Fig 2: Intake Manifold and Components

G01580384

Courtesy of GENERAL MOTORS CORP.

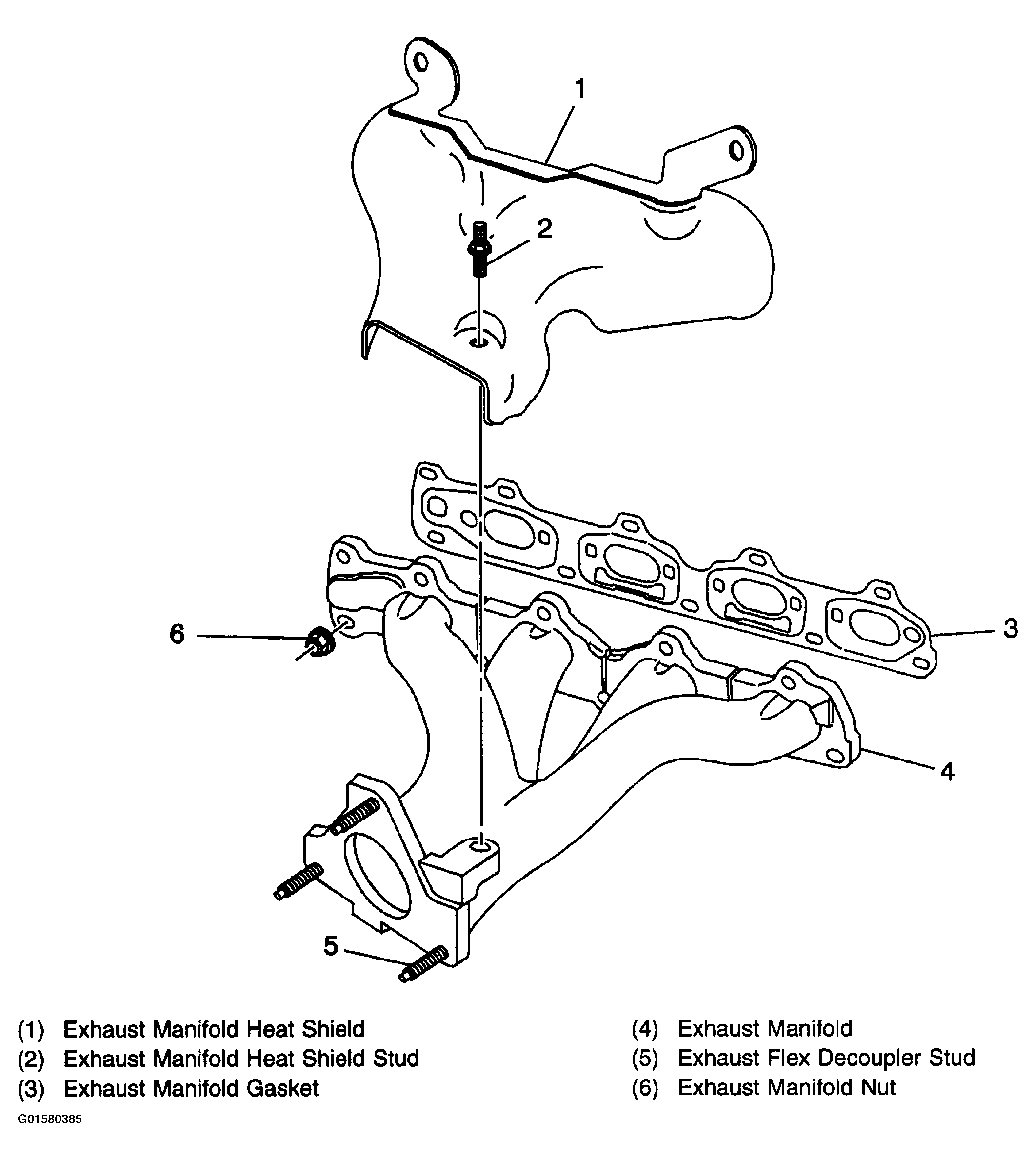

Fig 3: Exhaust Manifold and Components

G01580385

Courtesy of GENERAL MOTORS CORP.

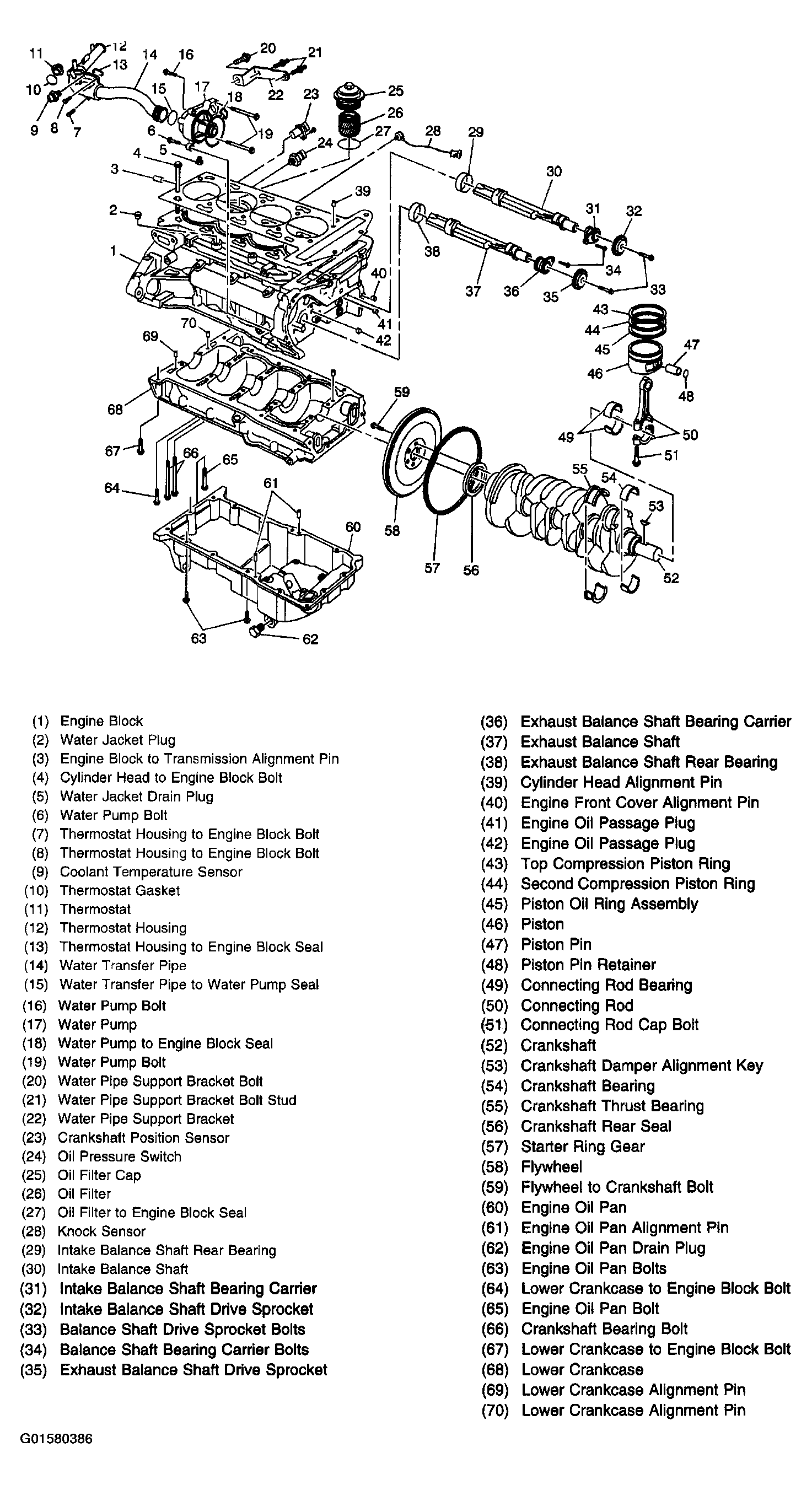

Fig 4: Engine Block and Components

G01580386

Courtesy of GENERAL MOTORS CORP.

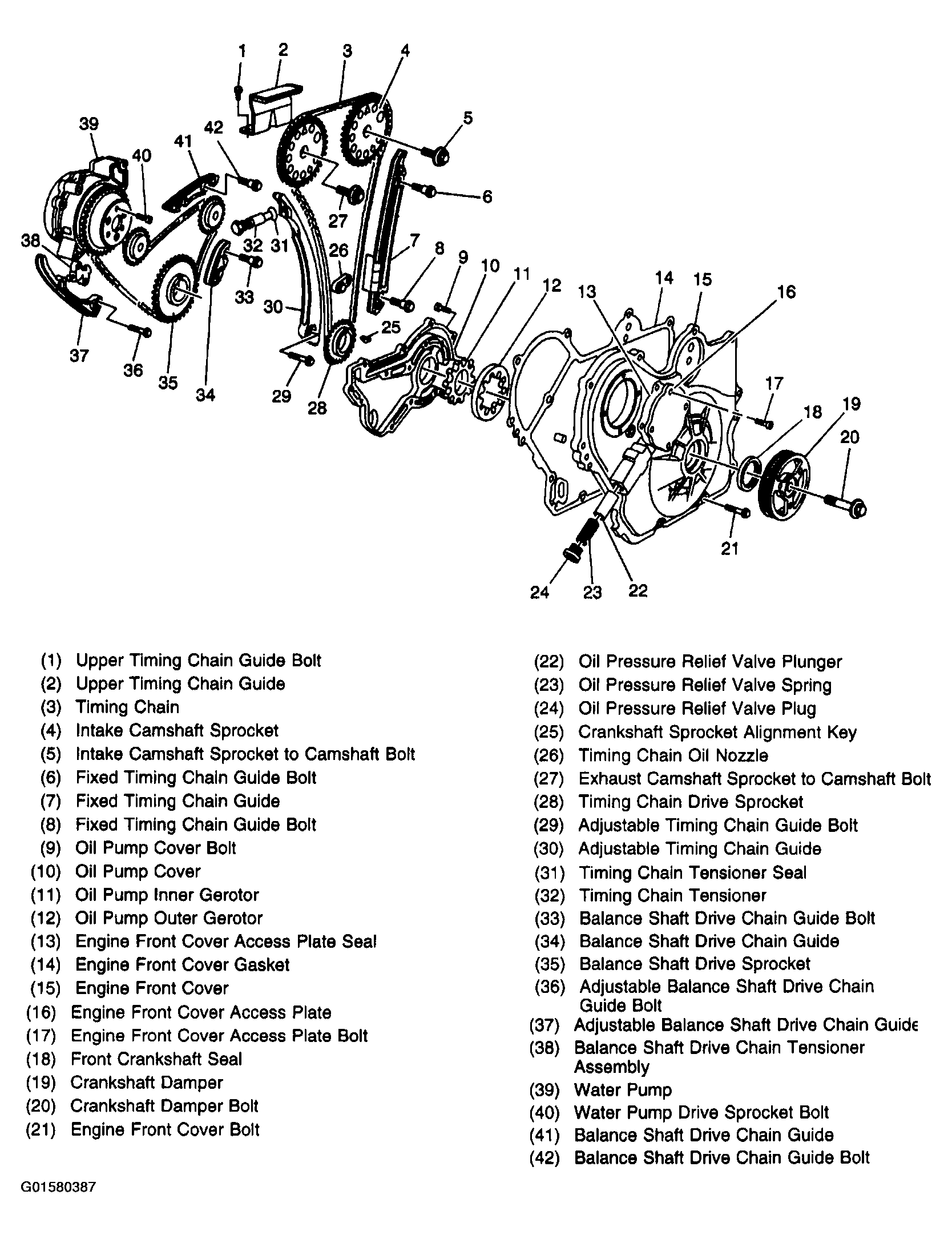

Fig 5: Timing Chain and Components

G01580387

Courtesy of GENERAL MOTORS CORP.

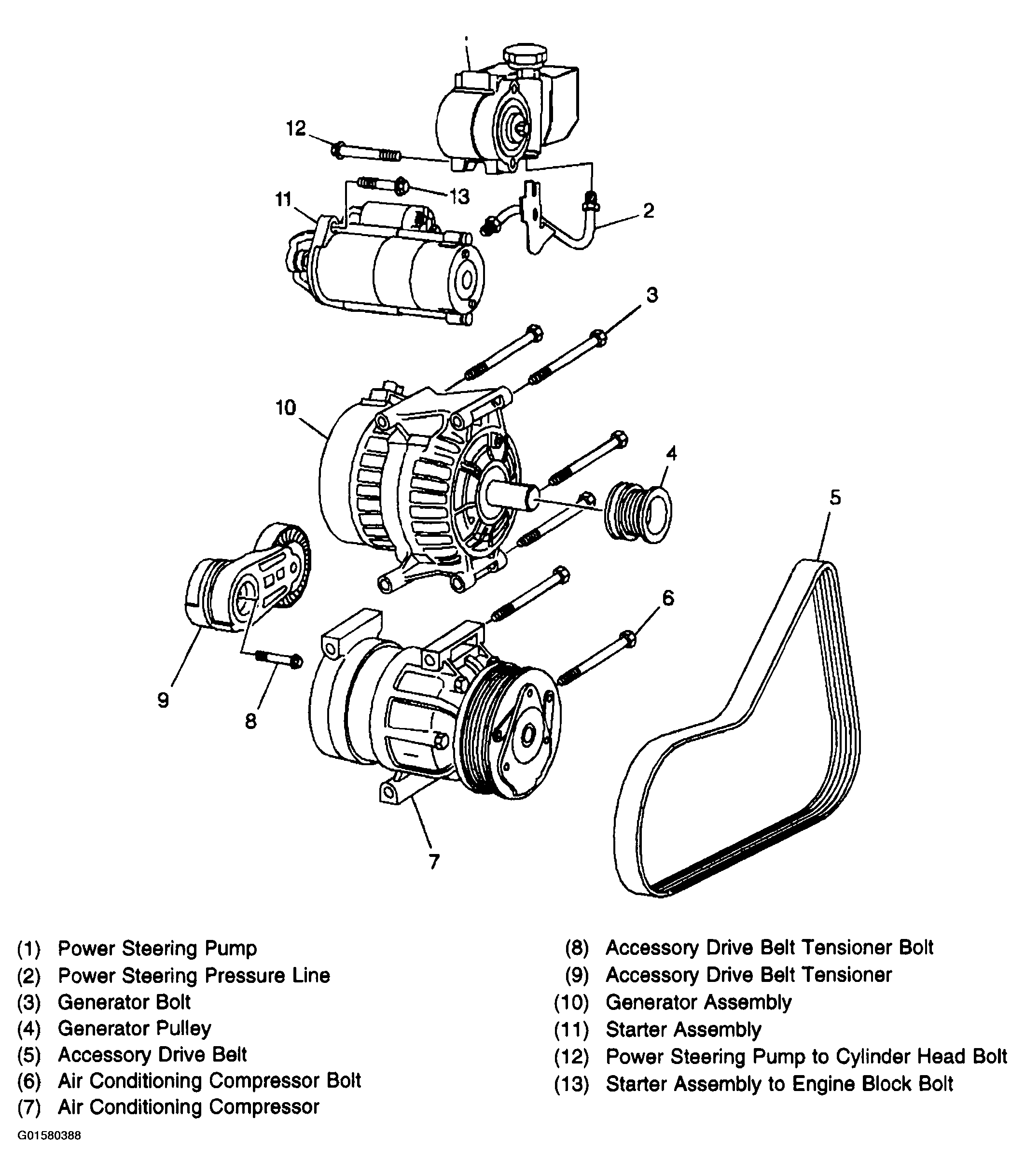

Fig 6: Accessory and Accessory Drive Components

G01580388

Courtesy of GENERAL MOTORS CORP.
