Schematic and Routing Diagrams

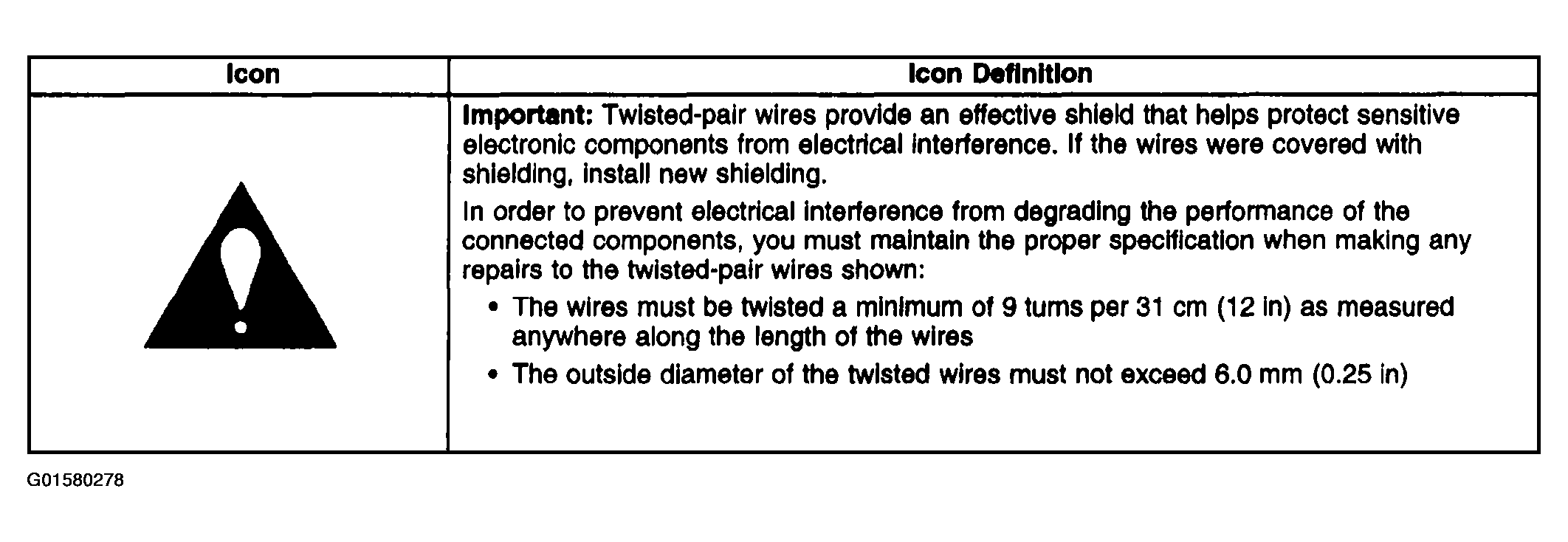

Fig 1: Identifying ABS Schematic Icons

Courtesy of GENERAL MOTORS CORP.

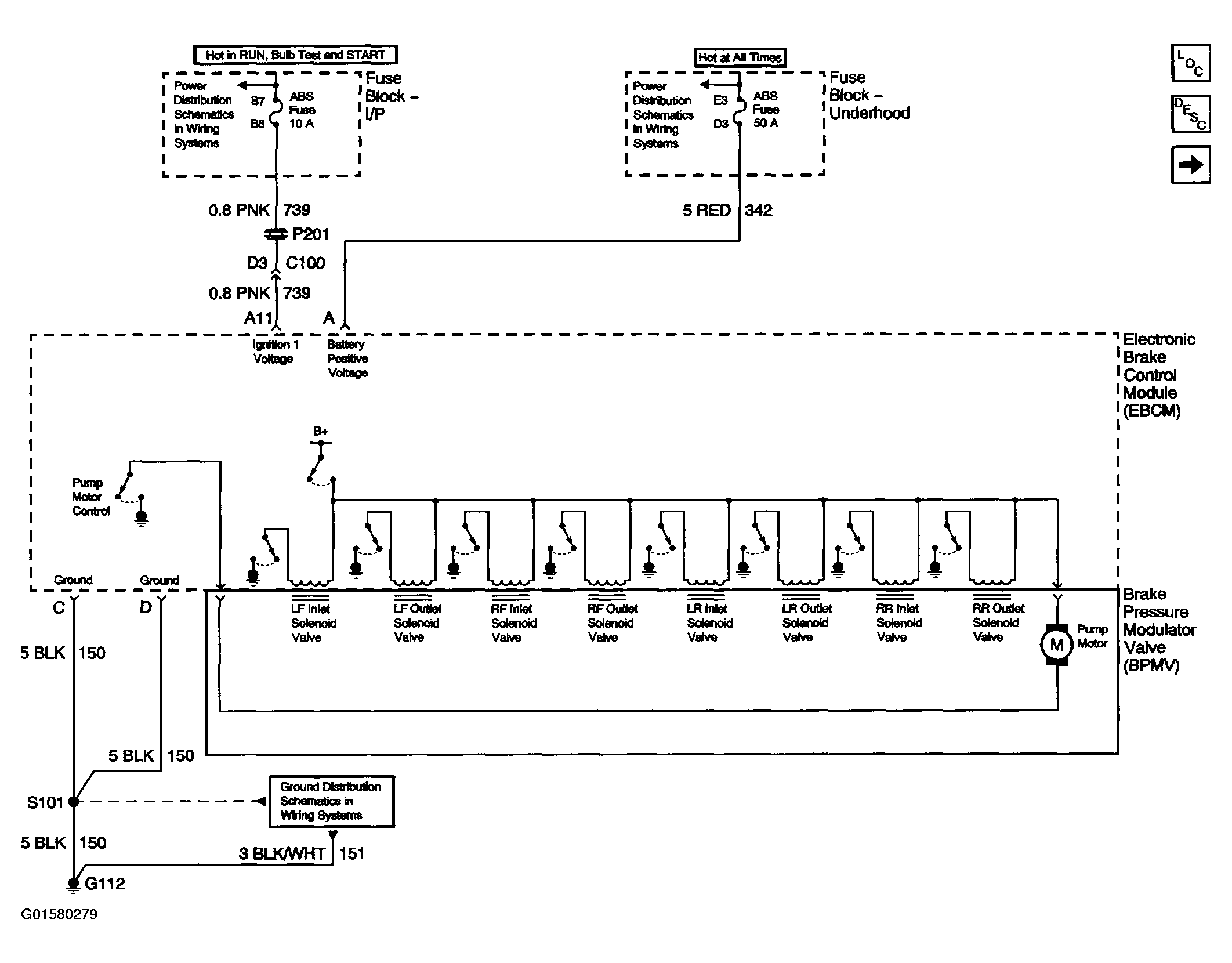

Fig 2: ABS Schematics (Module Power And Ground)

Courtesy of GENERAL MOTORS CORP.

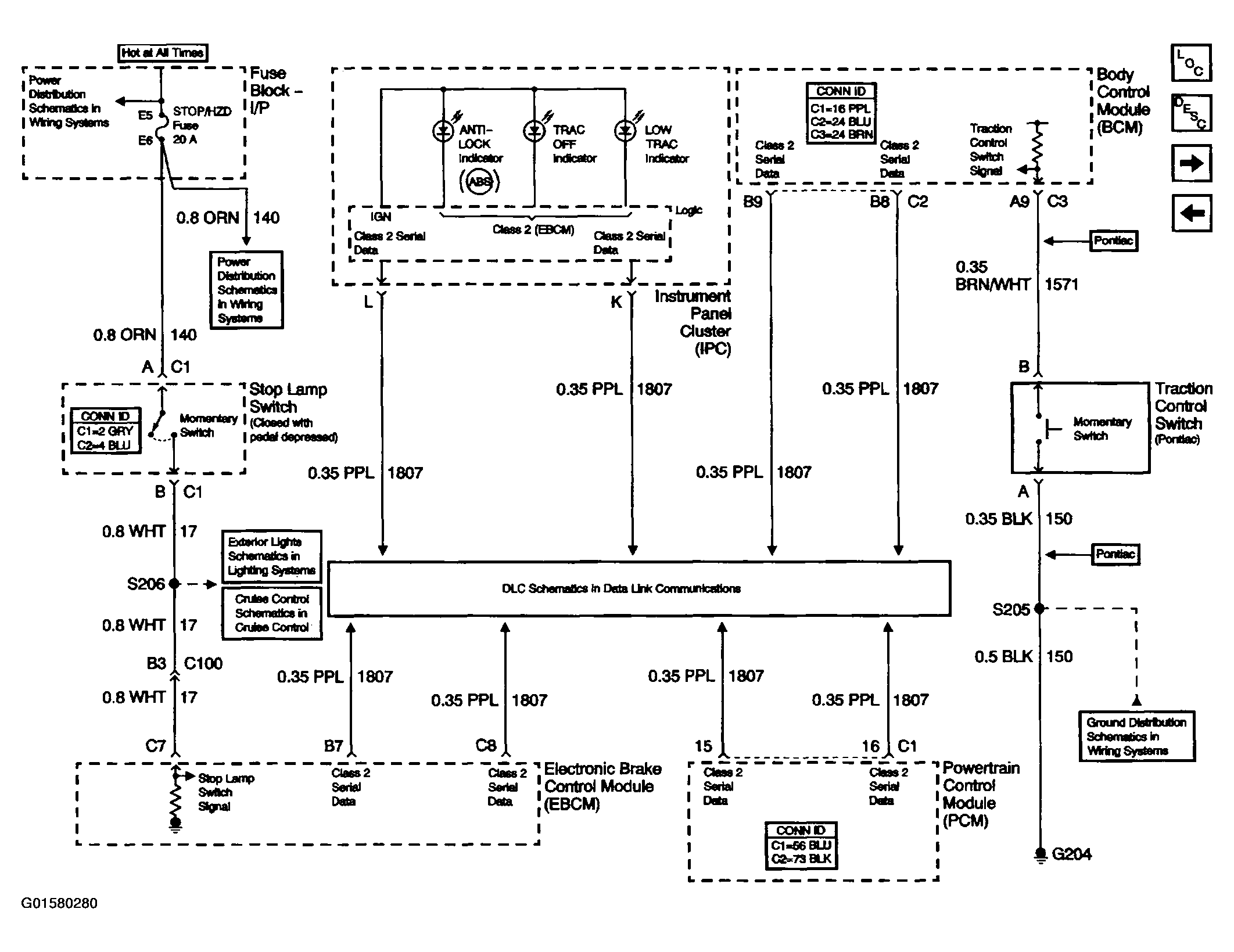

Fig 3: ABS Schematics (Indicators And Switches)

Courtesy of GENERAL MOTORS CORP.

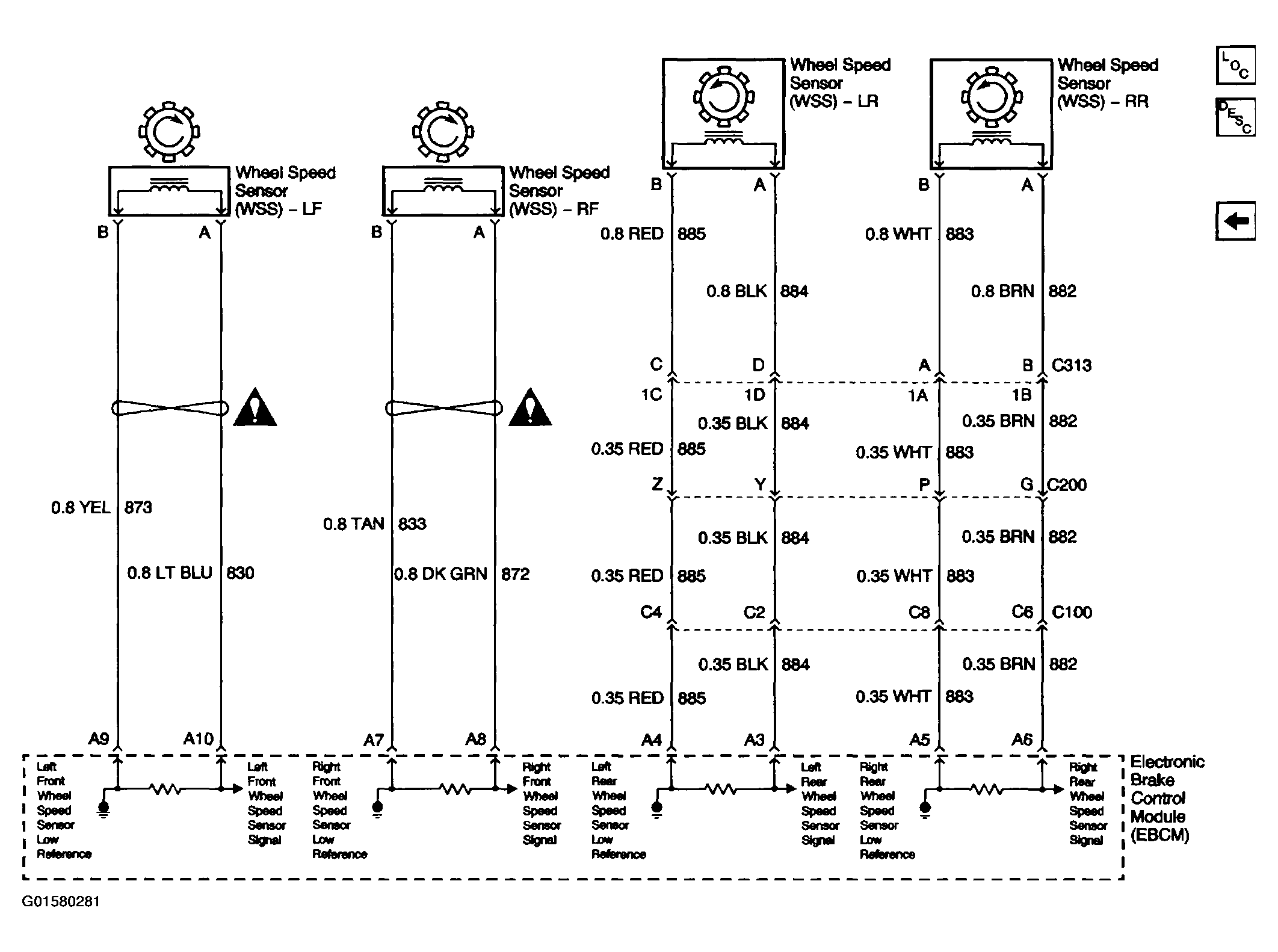

Fig 4: ABS Schematics (Wheel Speed Sensors)

Courtesy of GENERAL MOTORS CORP.
