Internal Components

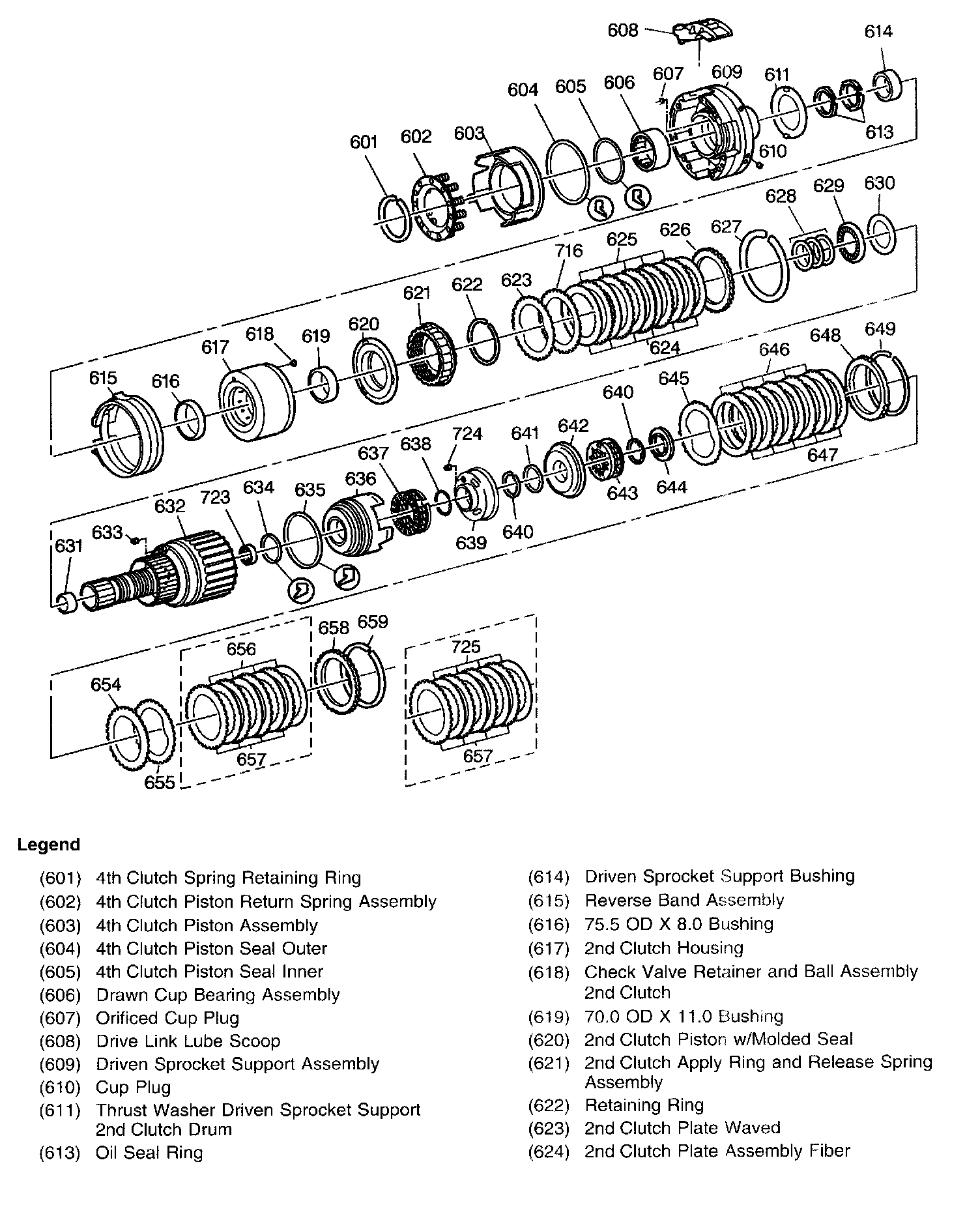

Internal Components Part 1 of 4:

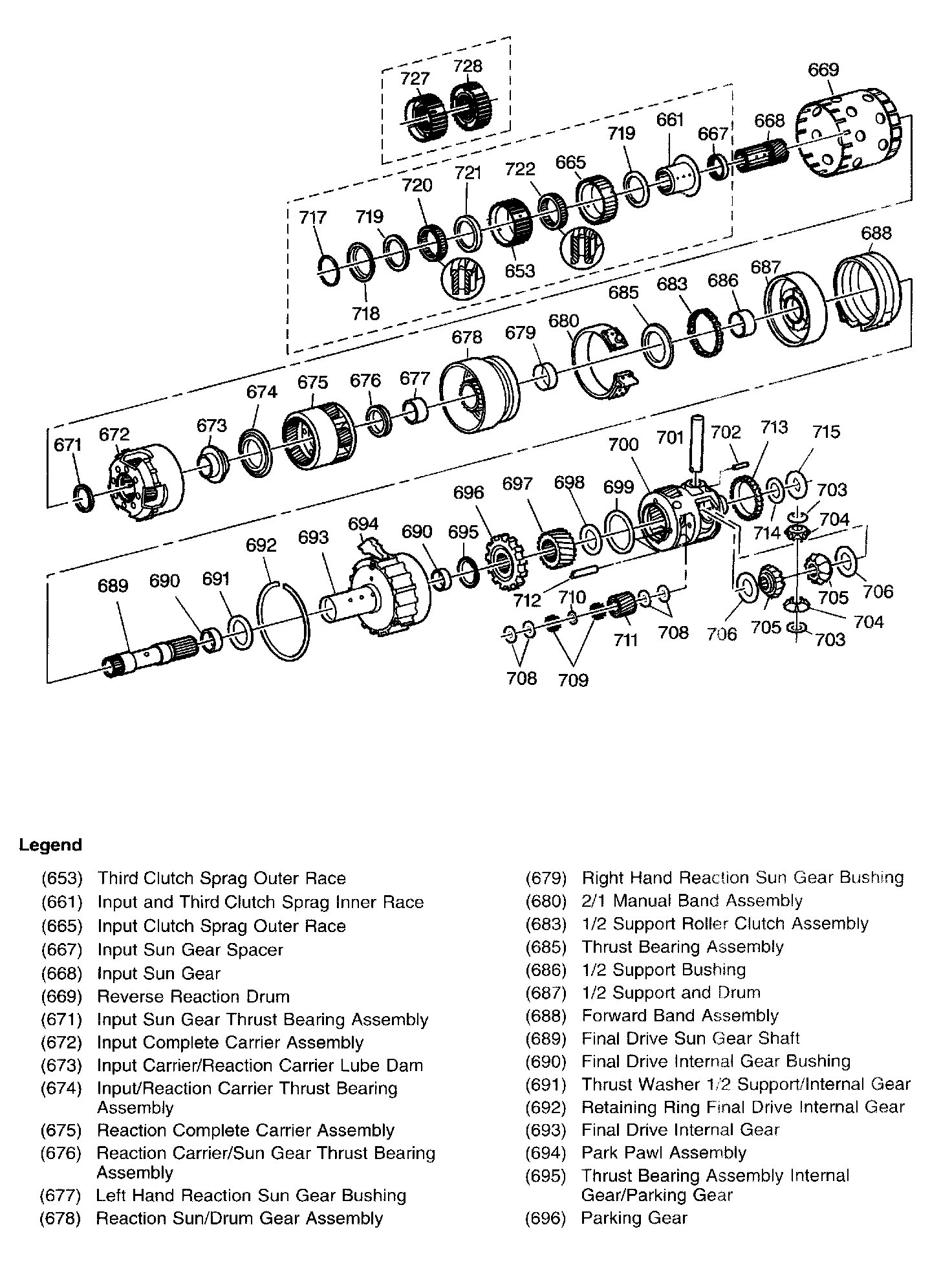

Internal Components Part 2 of 4:

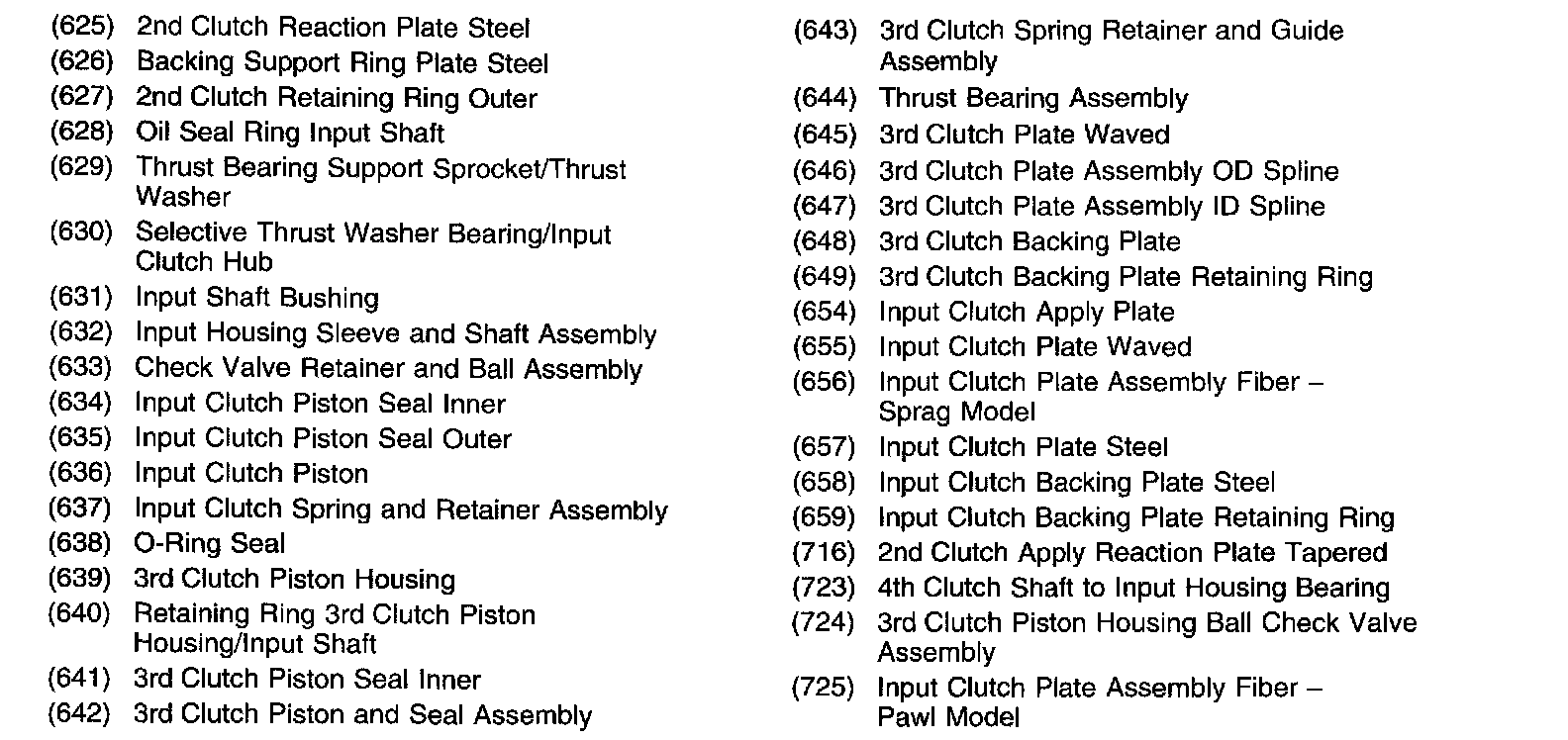

Internal Components Part 3 of 4:

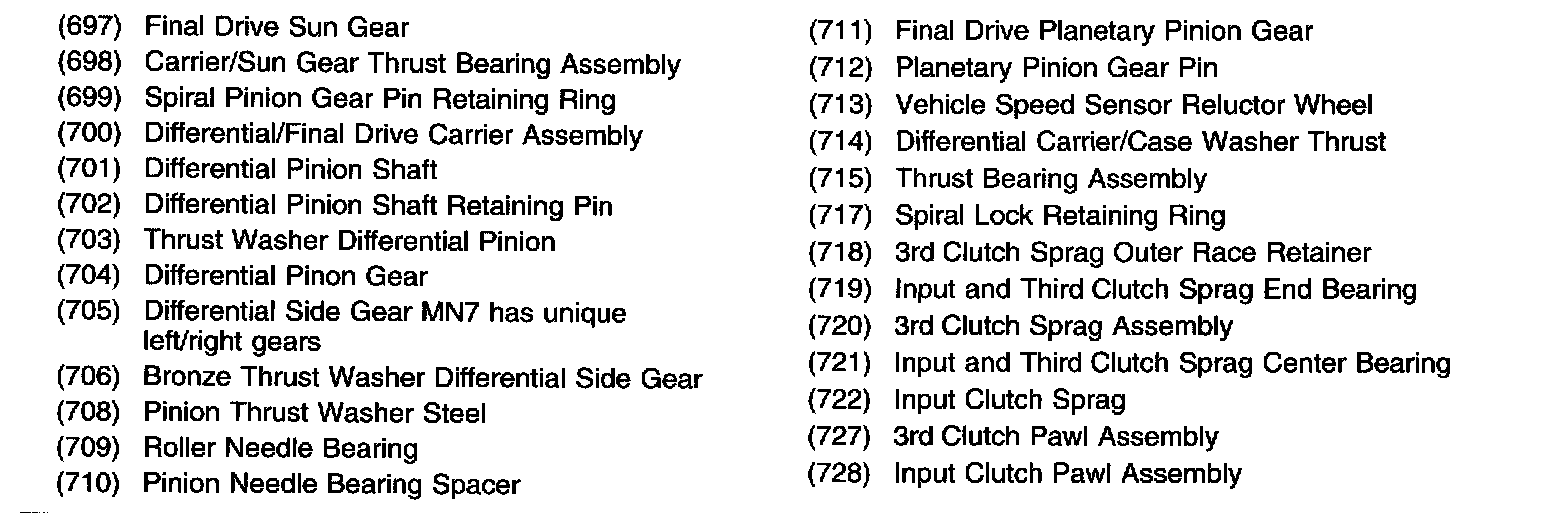

Internal Components Part 4 of 4:
