Control Valve Body Assembly

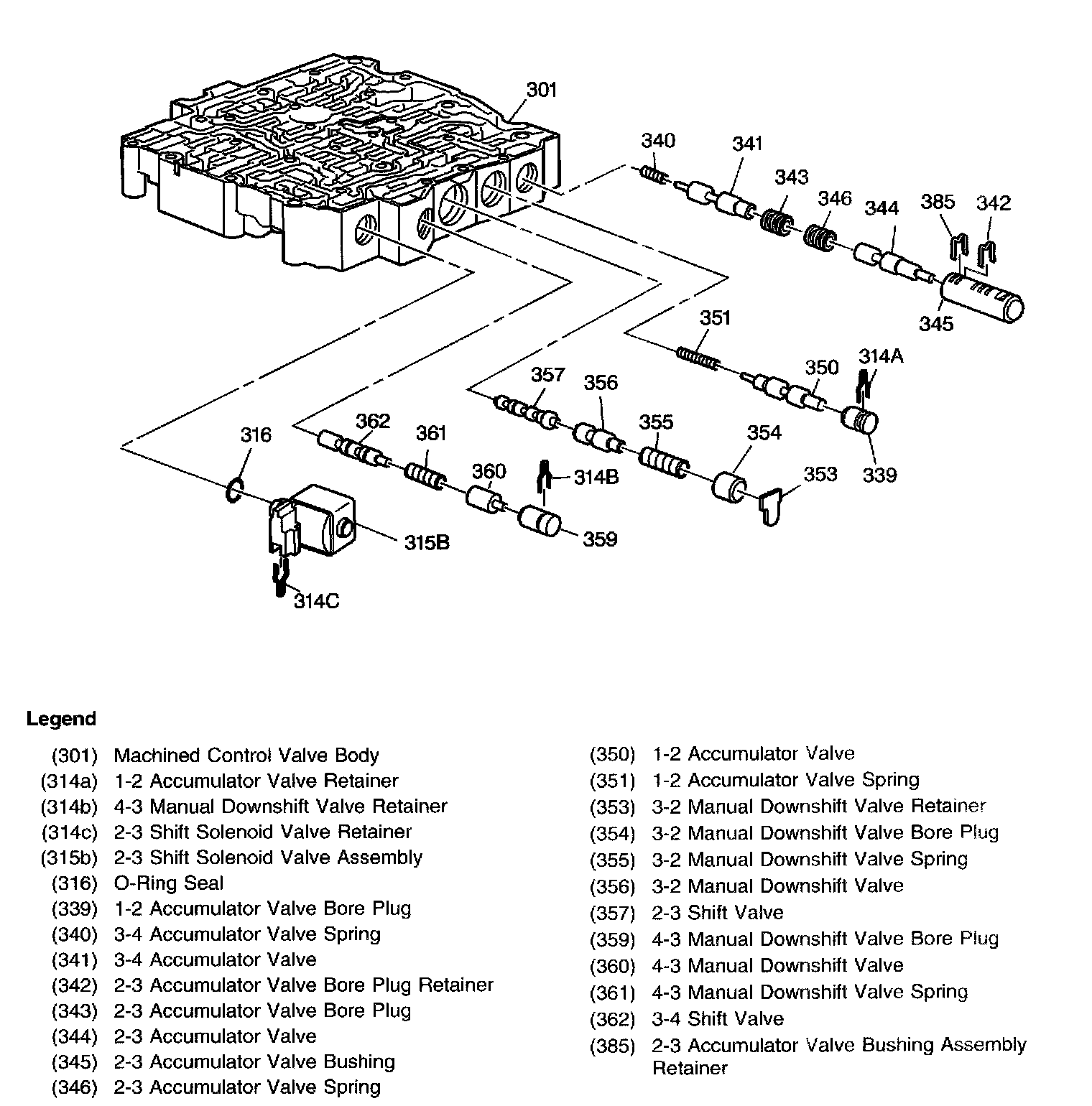

Control Valve Body Assembly Part 1 of 2:

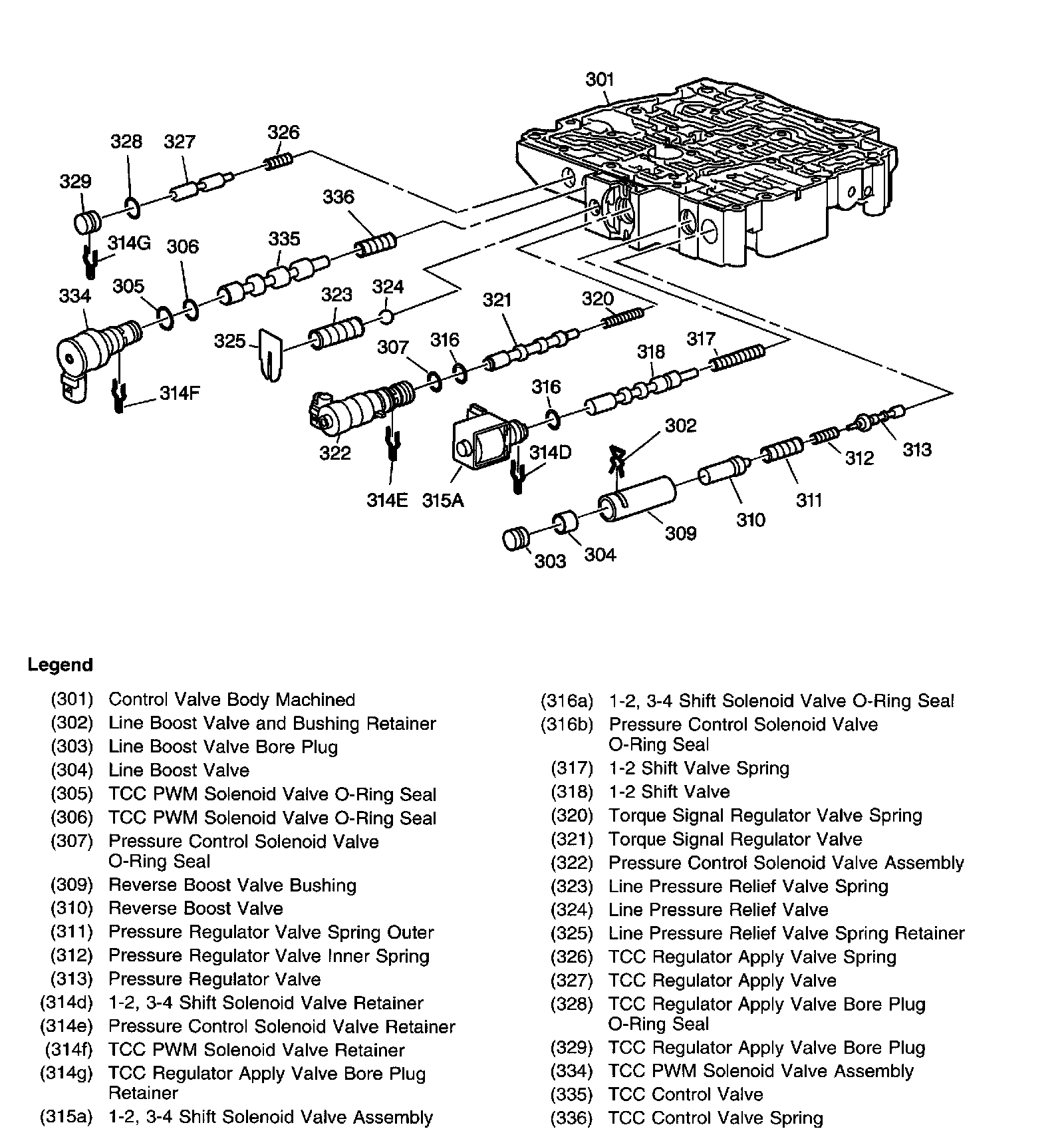

Control Valve Body Assembly Part 2 of 2:
