Removal Procedure

  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  2. Remove the front door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .

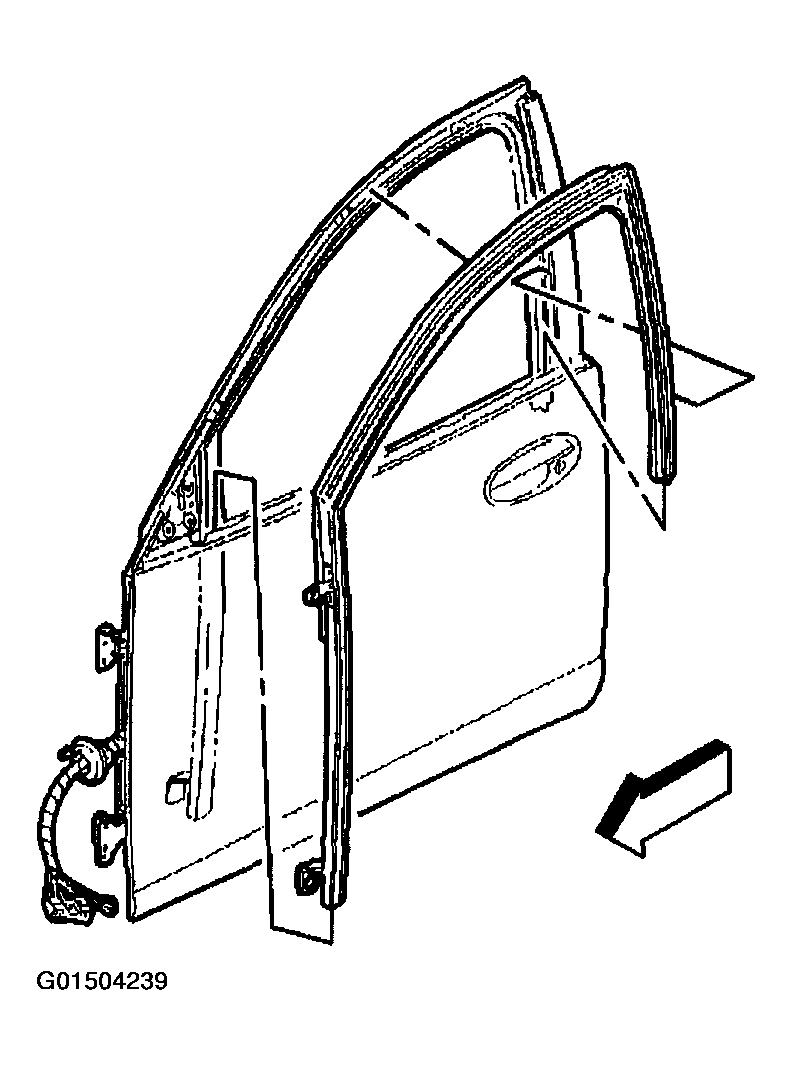

    Fig 1: Removing Bolts From Front Door Window Weatherstrip
    G01504239Courtesy of GENERAL MOTORS CORP.
  3. Remove the outside mirror. Refer to MIRROR REPLACEMENT - POWER  .
  4. Remove the front door window inner belt sealing strip. Refer to SEALING STRIP REPLACEMENT - FRONT DOOR WINDOW BELT INNER  .
  5. Remove the front door window outer belt sealing strip. Refer to SEALING STRIP REPLACEMENT - FRONT DOOR WINDOW BELT OUTER  .
  6. Remove the front door window. Refer to WINDOW REPLACEMENT - FRONT DOOR  .
  7. Remove the bolts from the front door window weatherstrip.
  8. Remove the front door window weatherstrip from the front door (3).

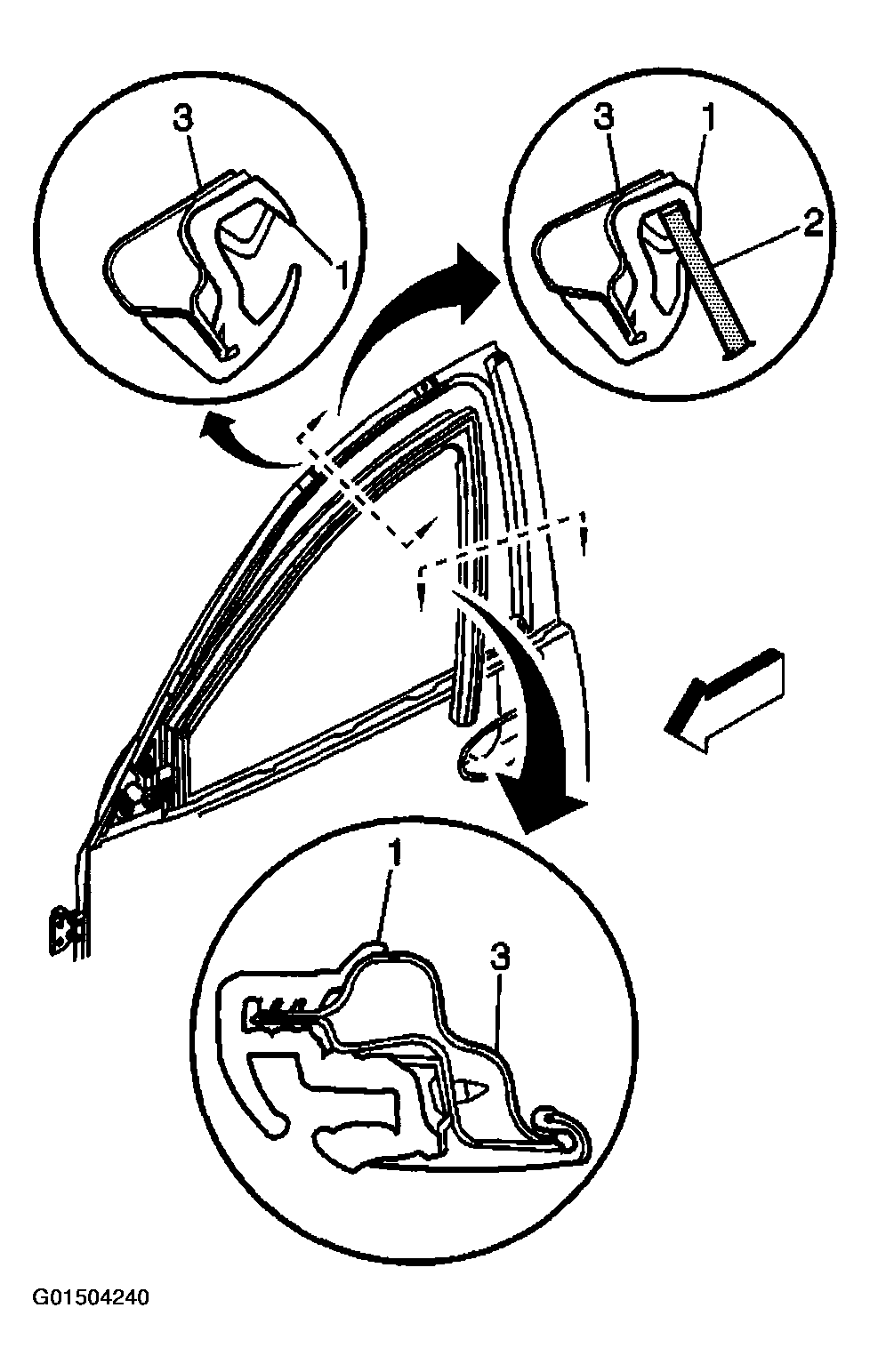

    Fig 2: Removing Front Door Window Weatherstrip From Front Door
    G01504240Courtesy of GENERAL MOTORS CORP.
