Power Steering Pump

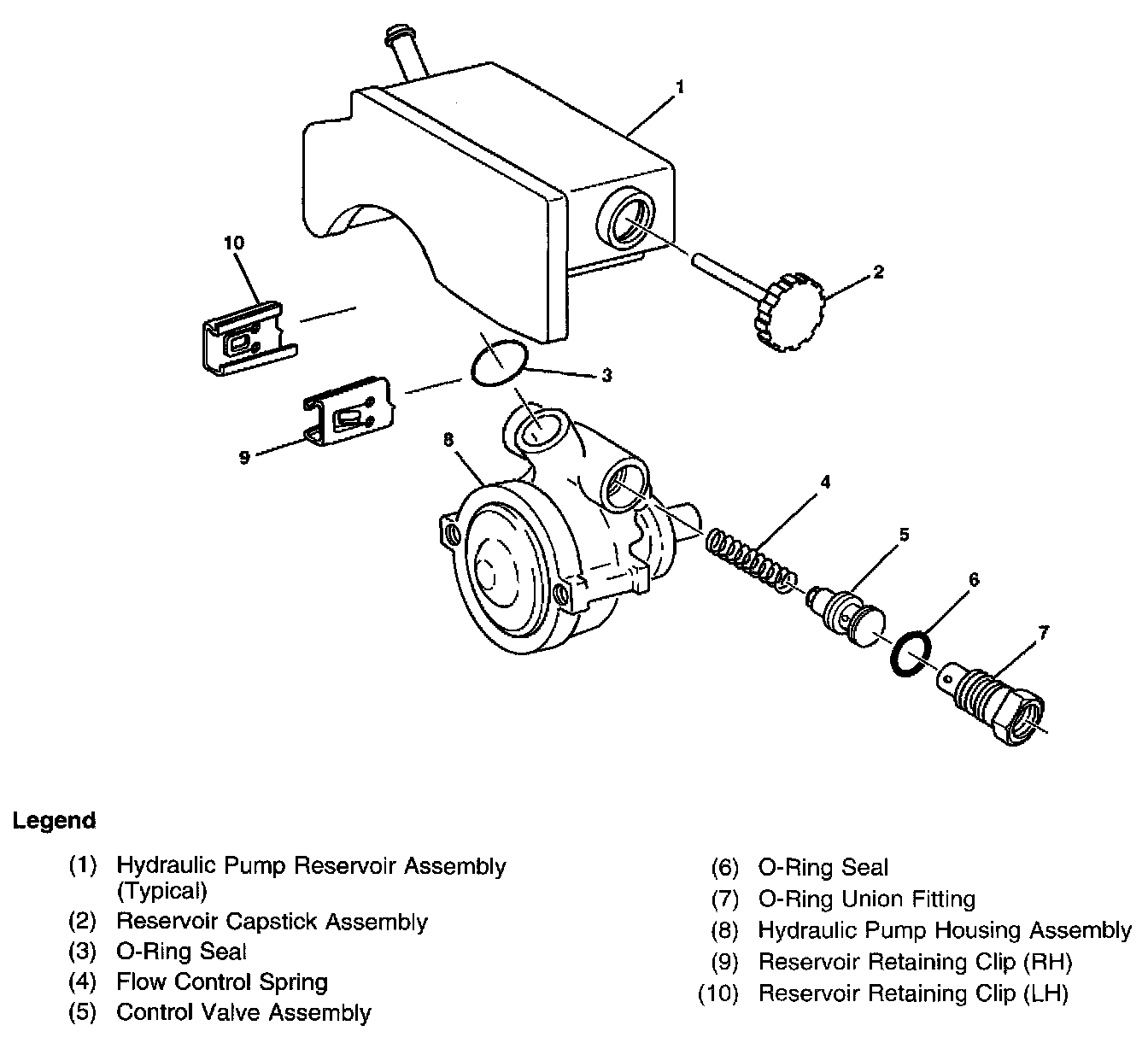

Power Steering Pump Disassembled View (CB Series Pump)





Power Steering Pump Assembly-CB Series
