Power Window Switch

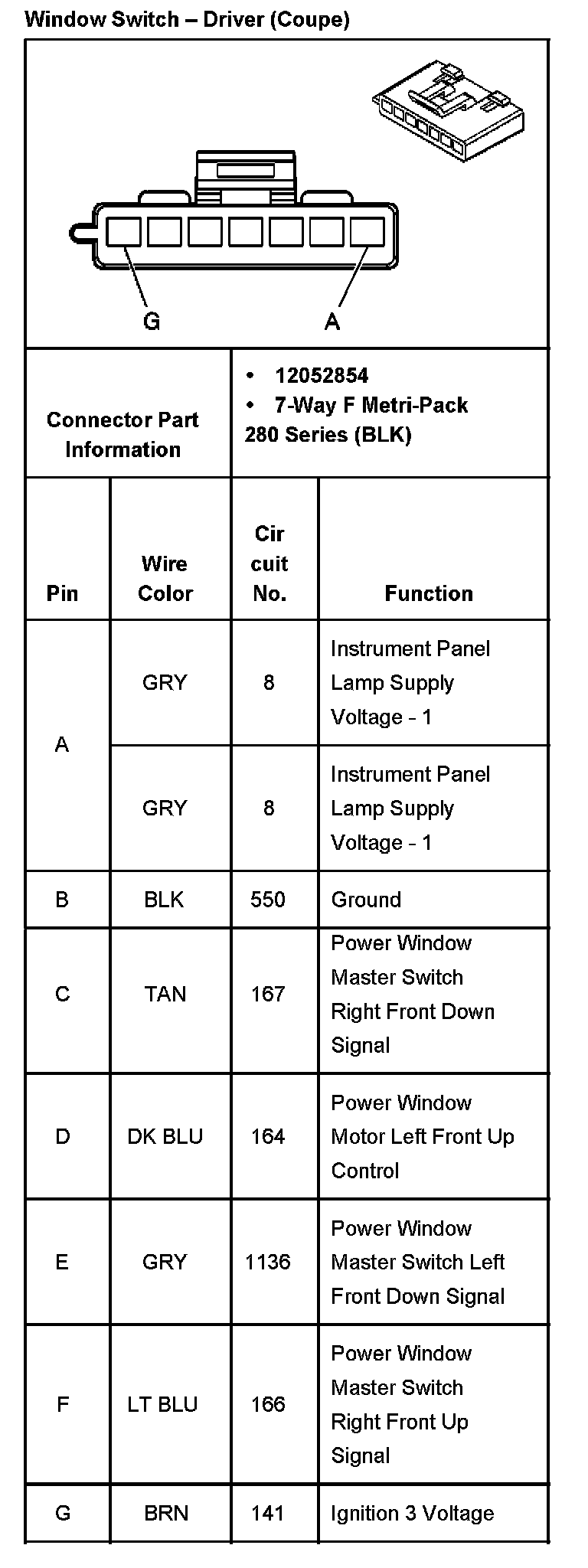

Window Switch - Driver (Coupe):

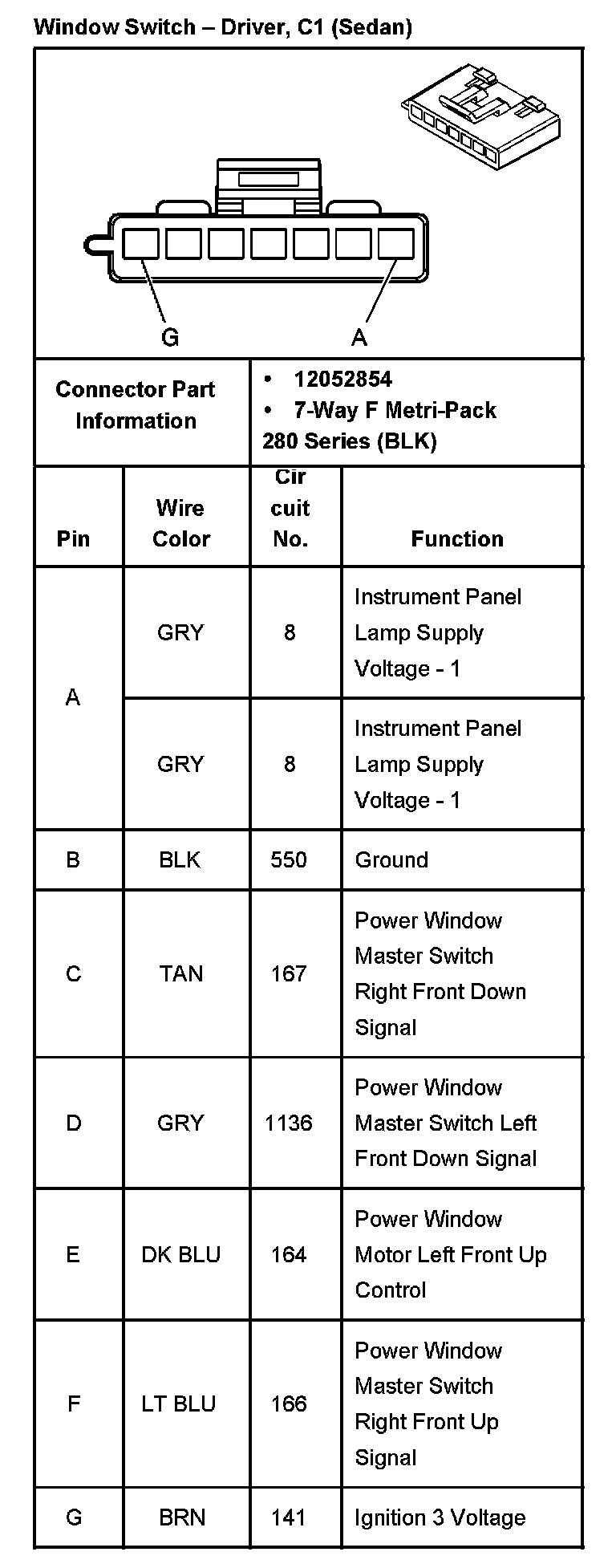

Window Switch - Driver, C1 (Sedan):




Window Switch - Driver, C2 (Sedan):




Window Switch - Front Passenger Part 1:




Window Switch - Front Passenger Part 2:




Window Switch - LR:




Window Switch - RR:
