Automatic Transmission Shift Lock Control Connector End Views

Fig 1: Identifying A/T Shift Lock Control Solenoid-w/ Column Shift
G01522483Courtesy of GENERAL MOTORS CORP.

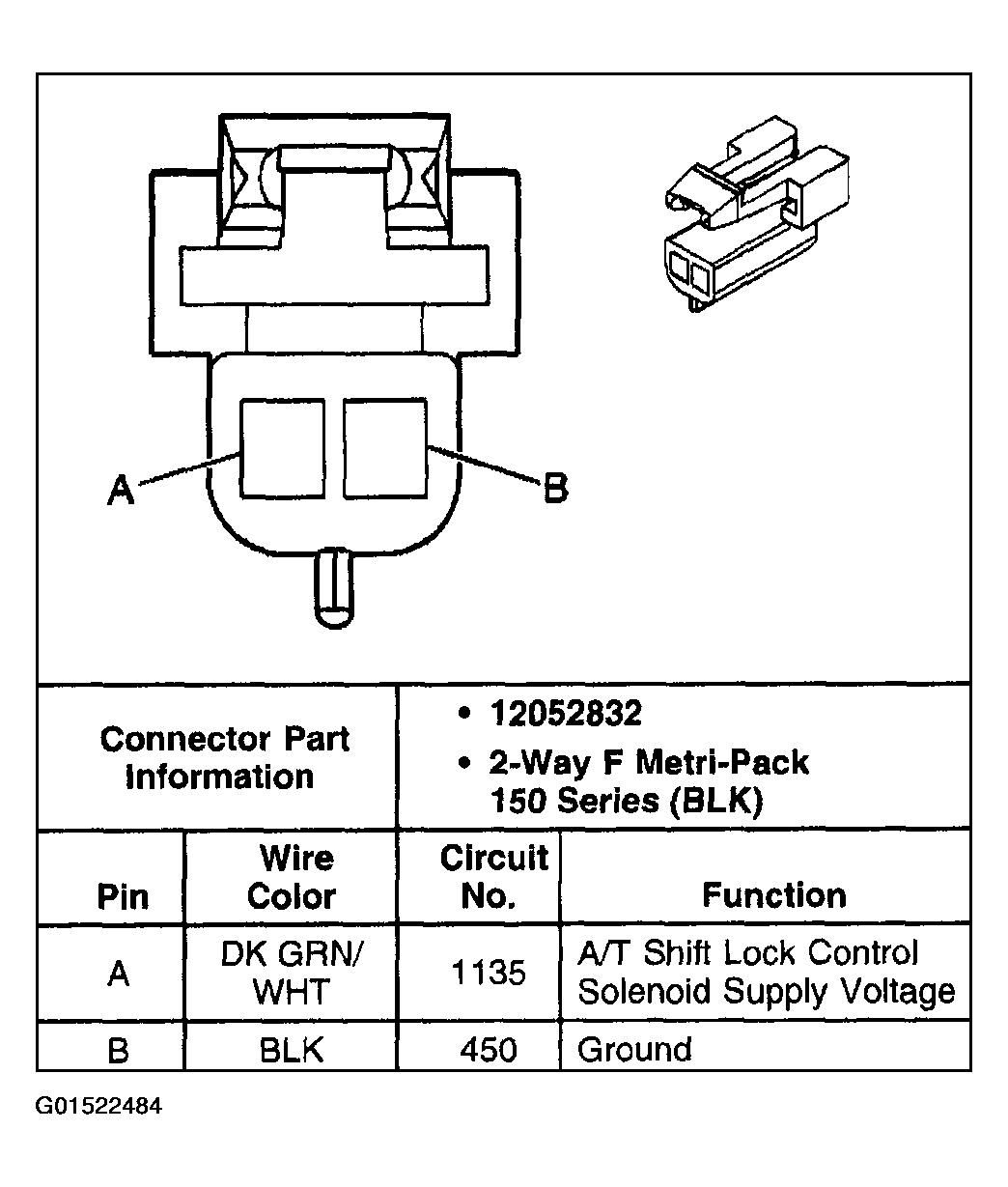

Fig 2: Identifying A/T Shift Lock Control Solenoid-w/ Console Shift
G01522484Courtesy of GENERAL MOTORS CORP.
