Fuse Block-Center Console

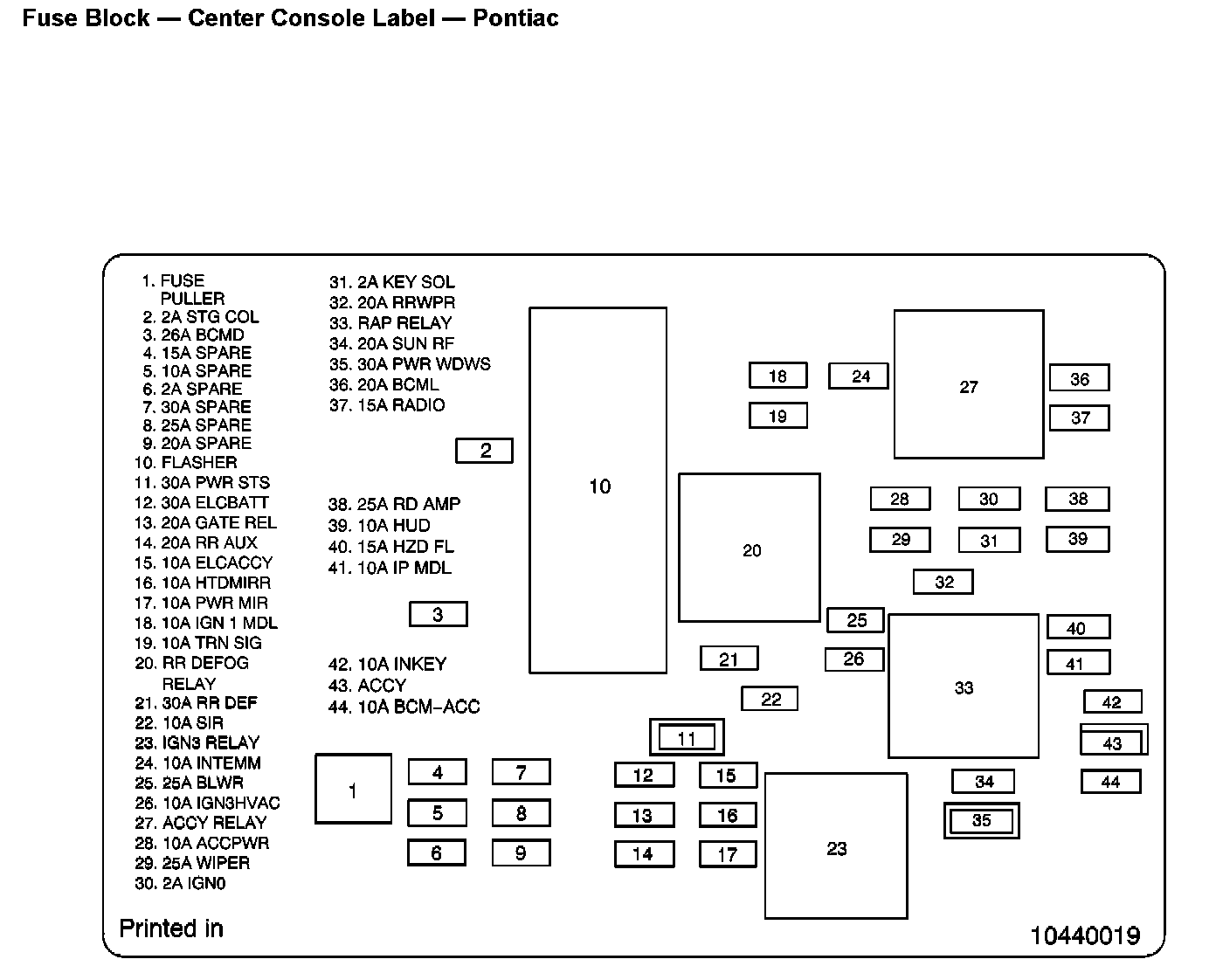

Location View:

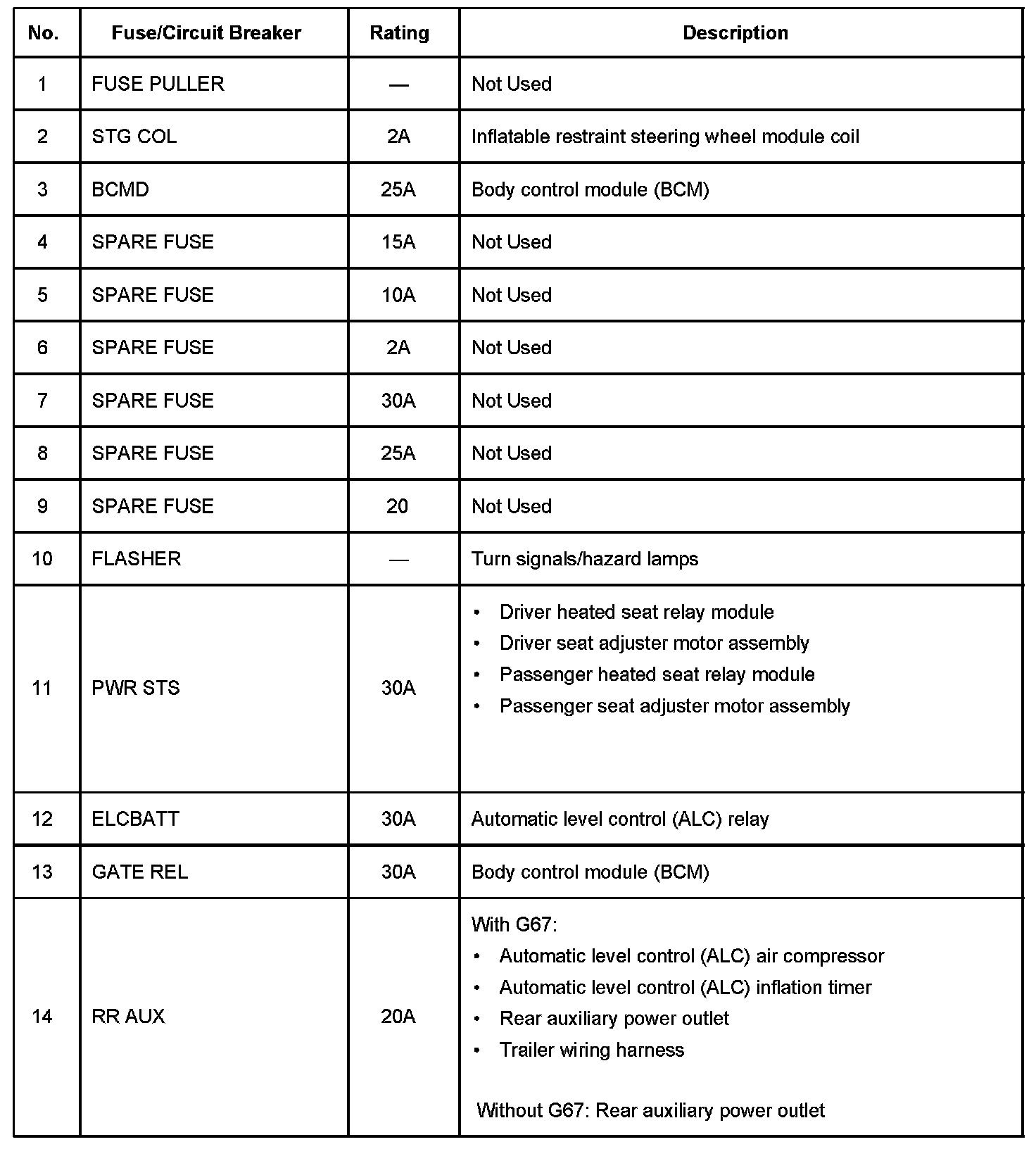

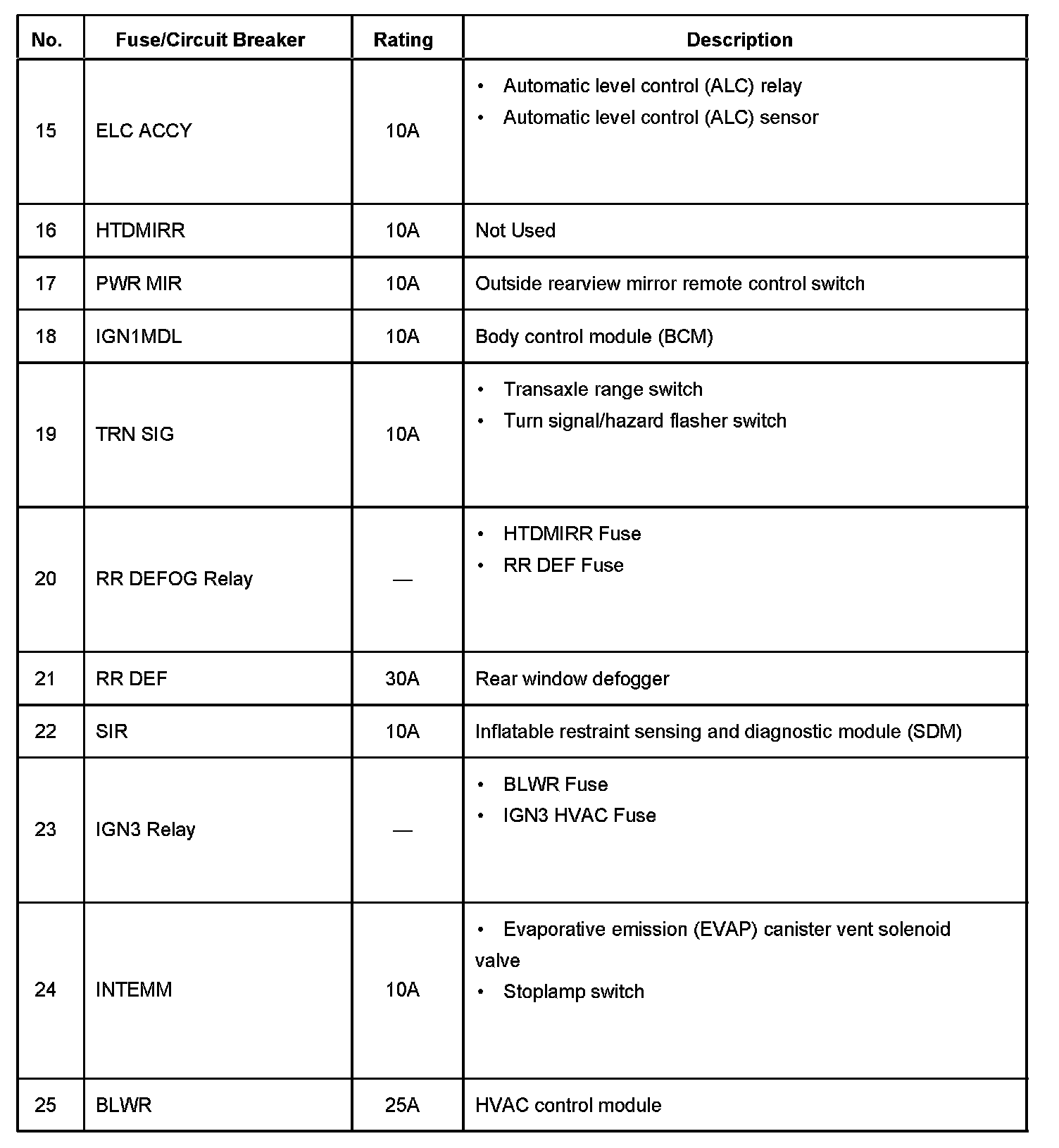

Application Table Part 1:

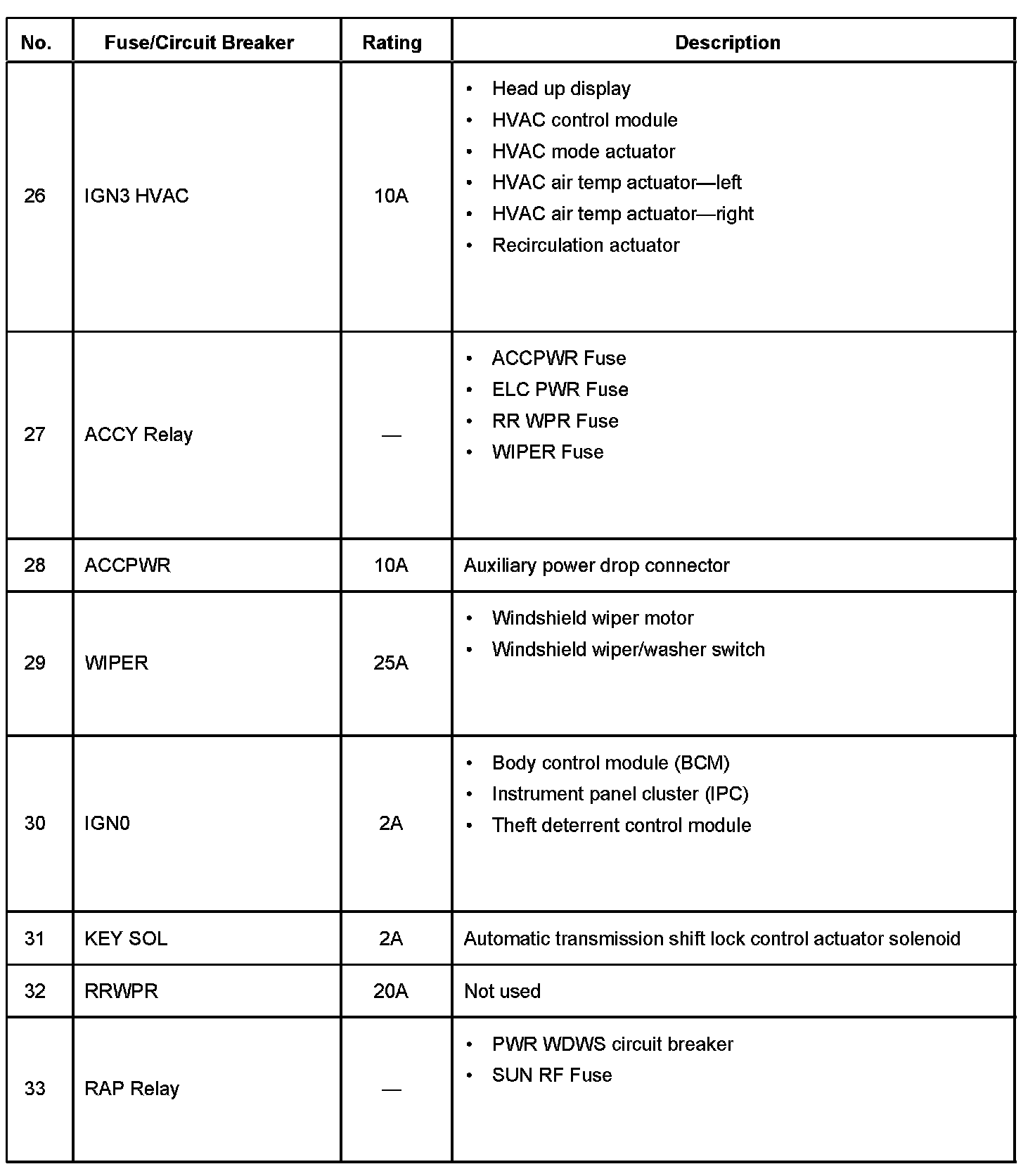

Application Table Part 2:

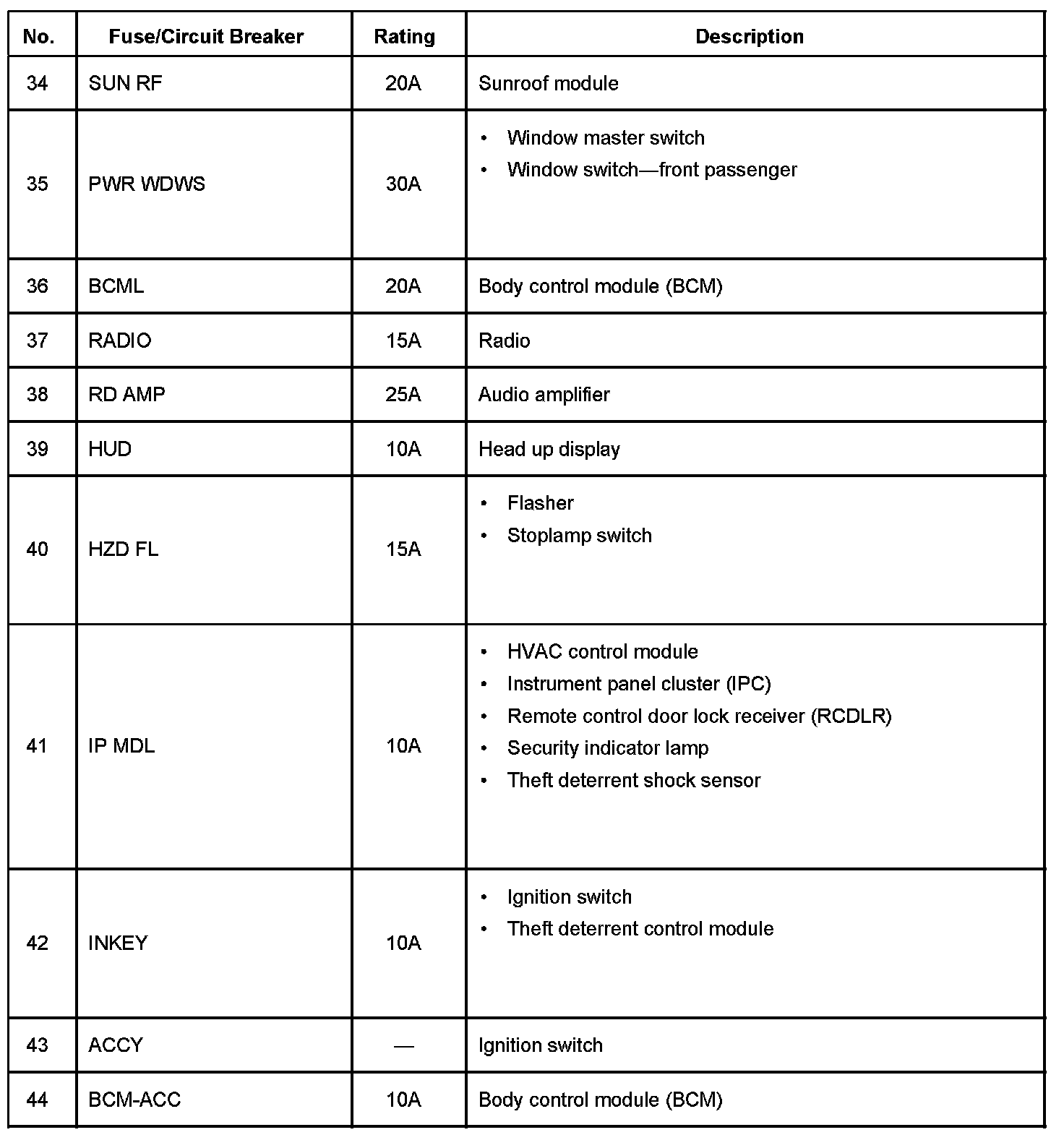

Application Table Part 3:




Application Table Part 4:

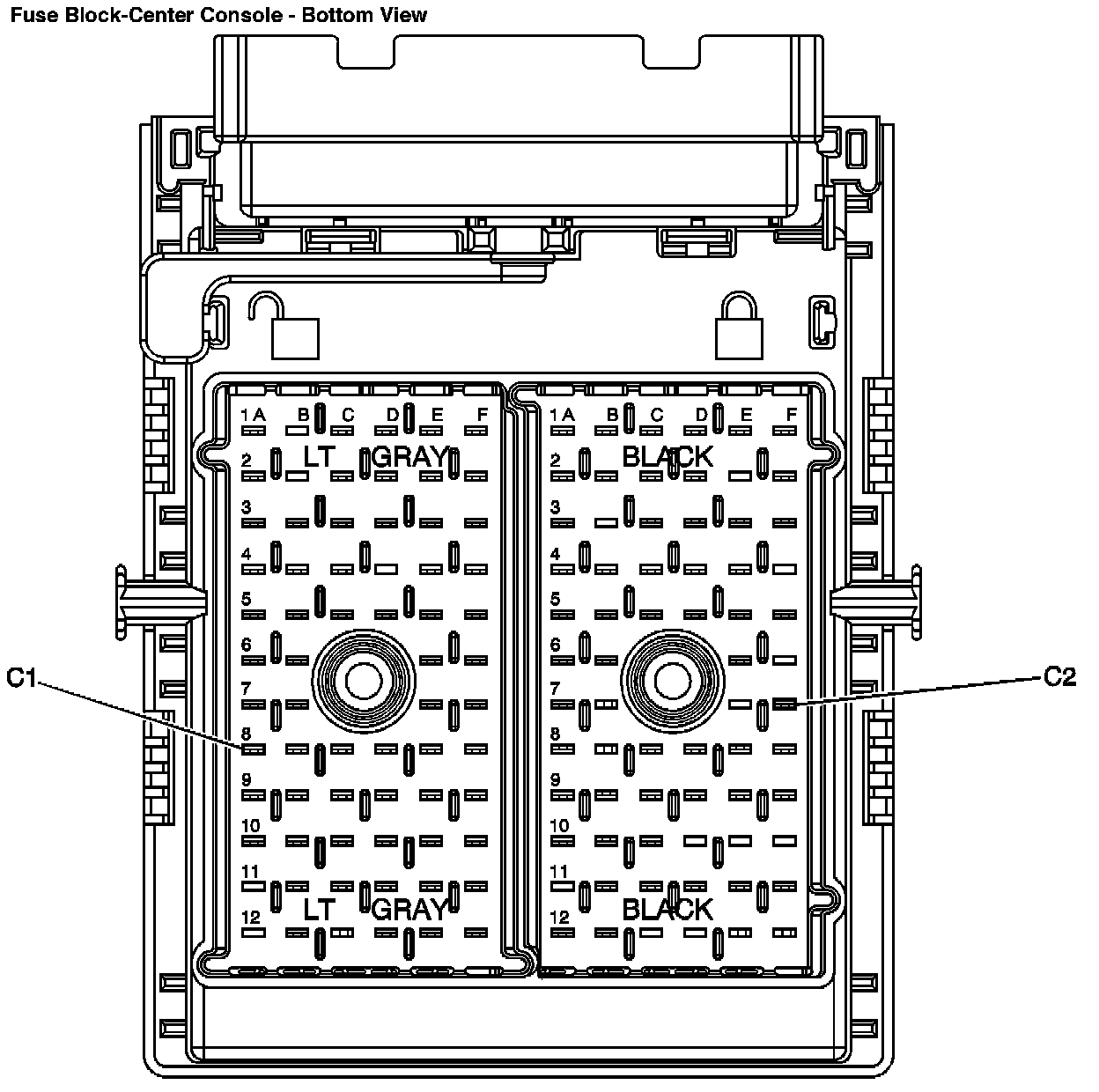

Location View:




Location View:
