Liftgate Latch Connector End View (Buick)

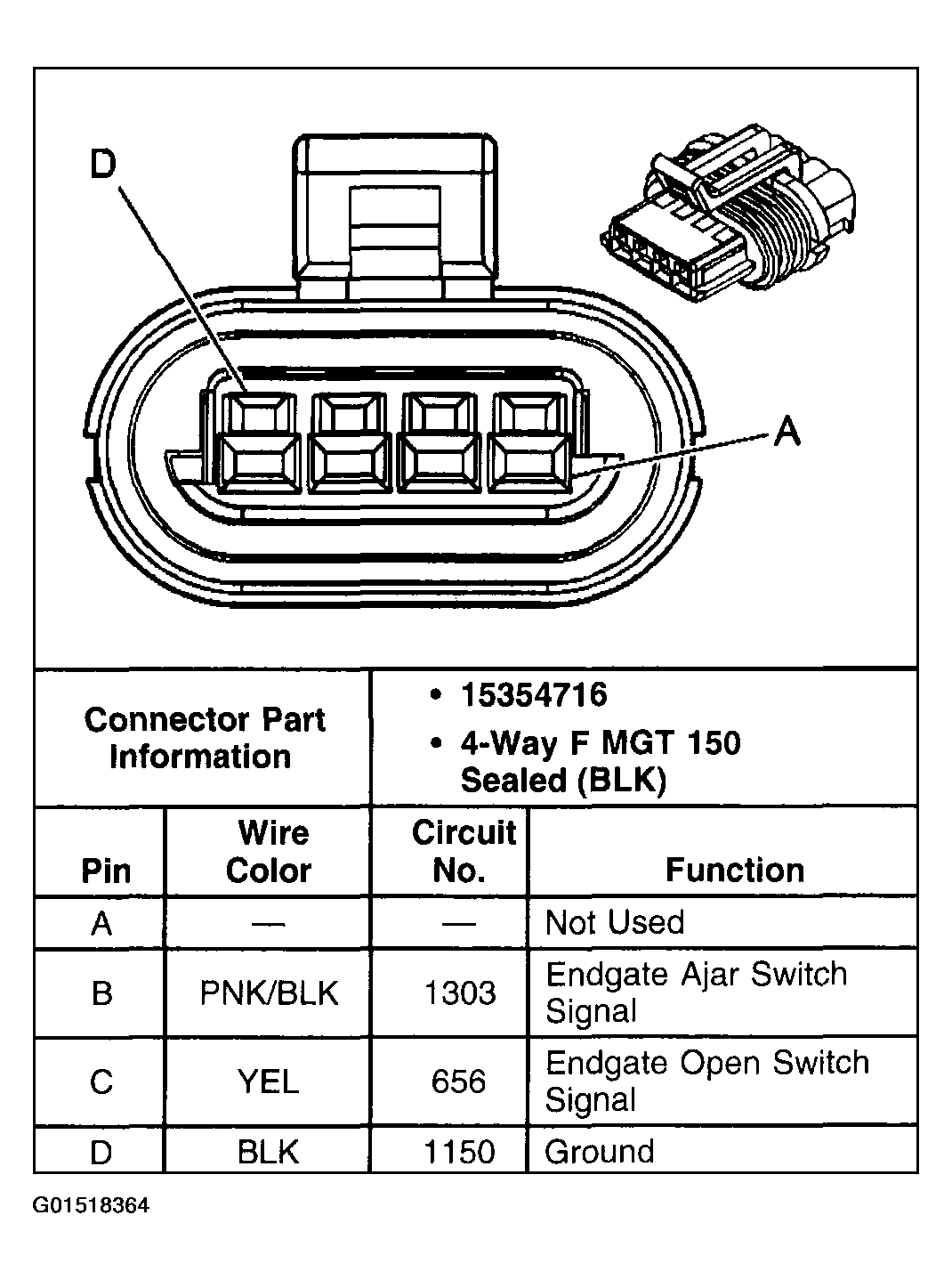

Fig 1: Liftgate Latch (Buick)
Courtesy of GENERAL MOTORS CORP.
