Removal Procedure

  1. Remove the screw form the seat back recliner handle.

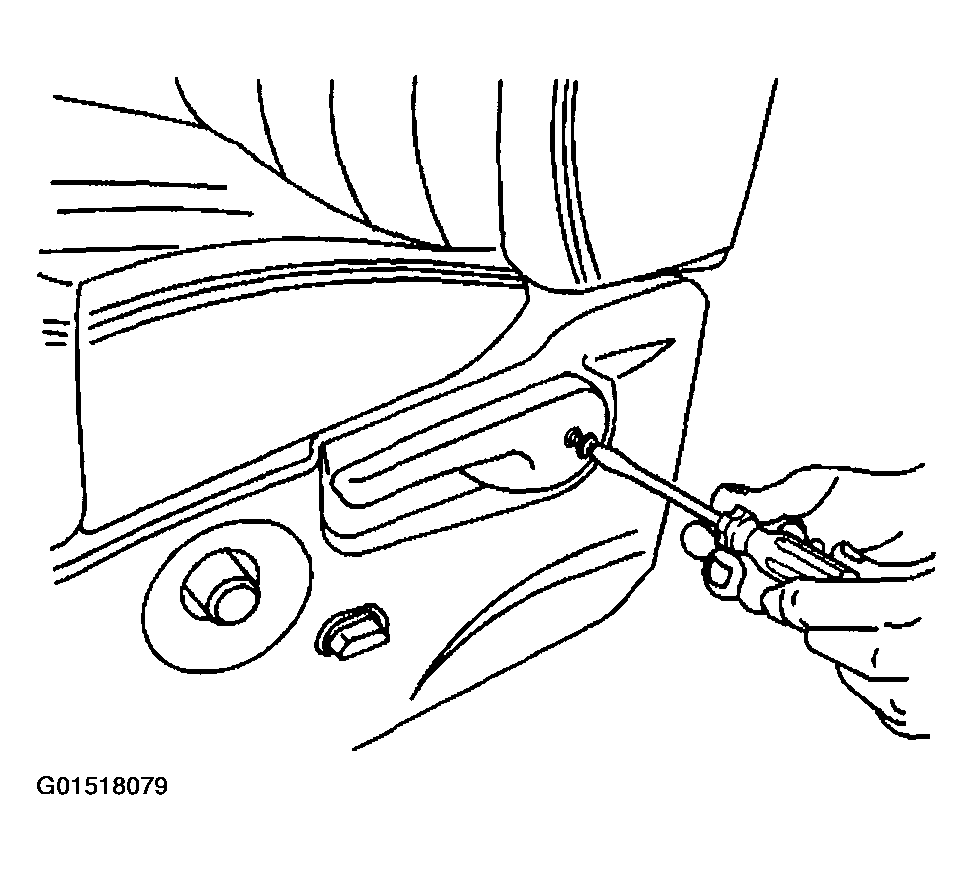

    Fig 1: Removing Screw Form Seat Back Recliner Handle
    G01518079Courtesy of GENERAL MOTORS CORP.
  2. Remove the seat back recliner handle from the seat back recliner handle shaft.

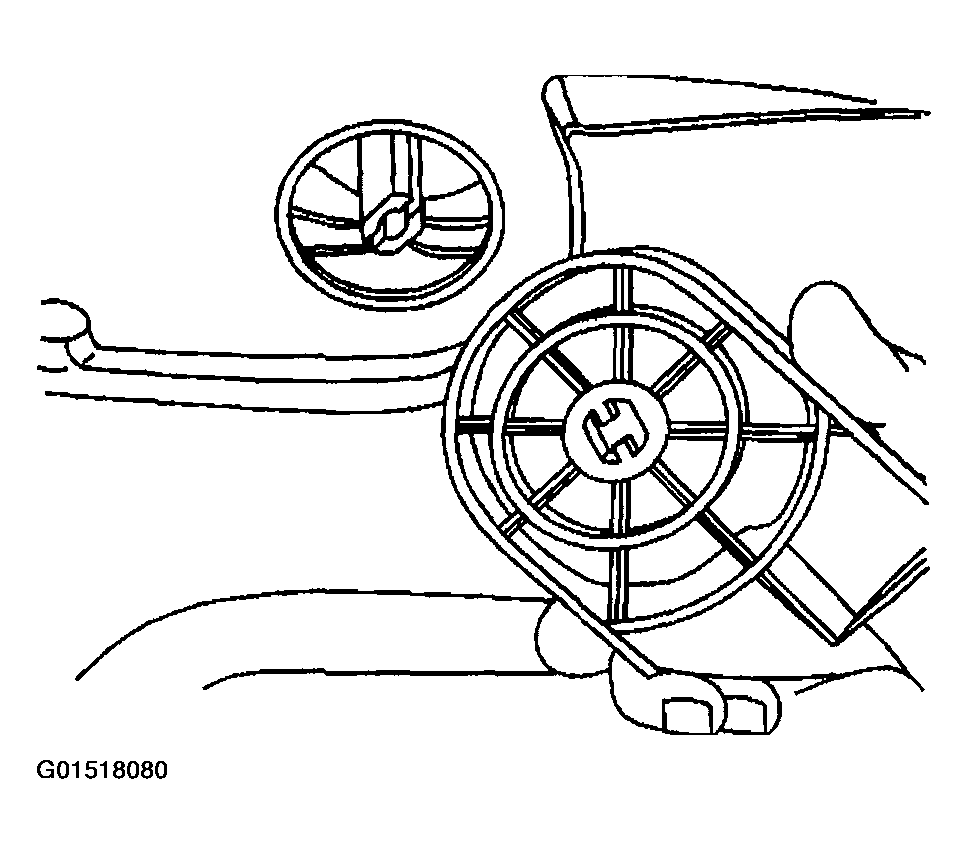

    Fig 2: Removing Seat Back Recliner Handle From Seat Back Recliner Handle Shaft
    G01518080Courtesy of GENERAL MOTORS CORP.
