Test Description

The numbers below refer to the step numbers on the diagnostic table.

1. 2. Lack of communication may be due to a partial malfunction of the class 2 serial data circuit or due to a total malfunction of the class 2 serial data circuit. The specified procedure will determine the particular condition.
2. 4. Determine if any DTCs are present which may be the cause of the condition.
3. 5. The presence of DTCs which begin with "U" indicate some other module is not communicating. The specified procedure will compile all the available information before tests are performed.
4. 6. Determine if an internal memory malfunction exists.
5. 7. Determine if the ignition voltage monitored by the powertrain control module is within acceptable limits.

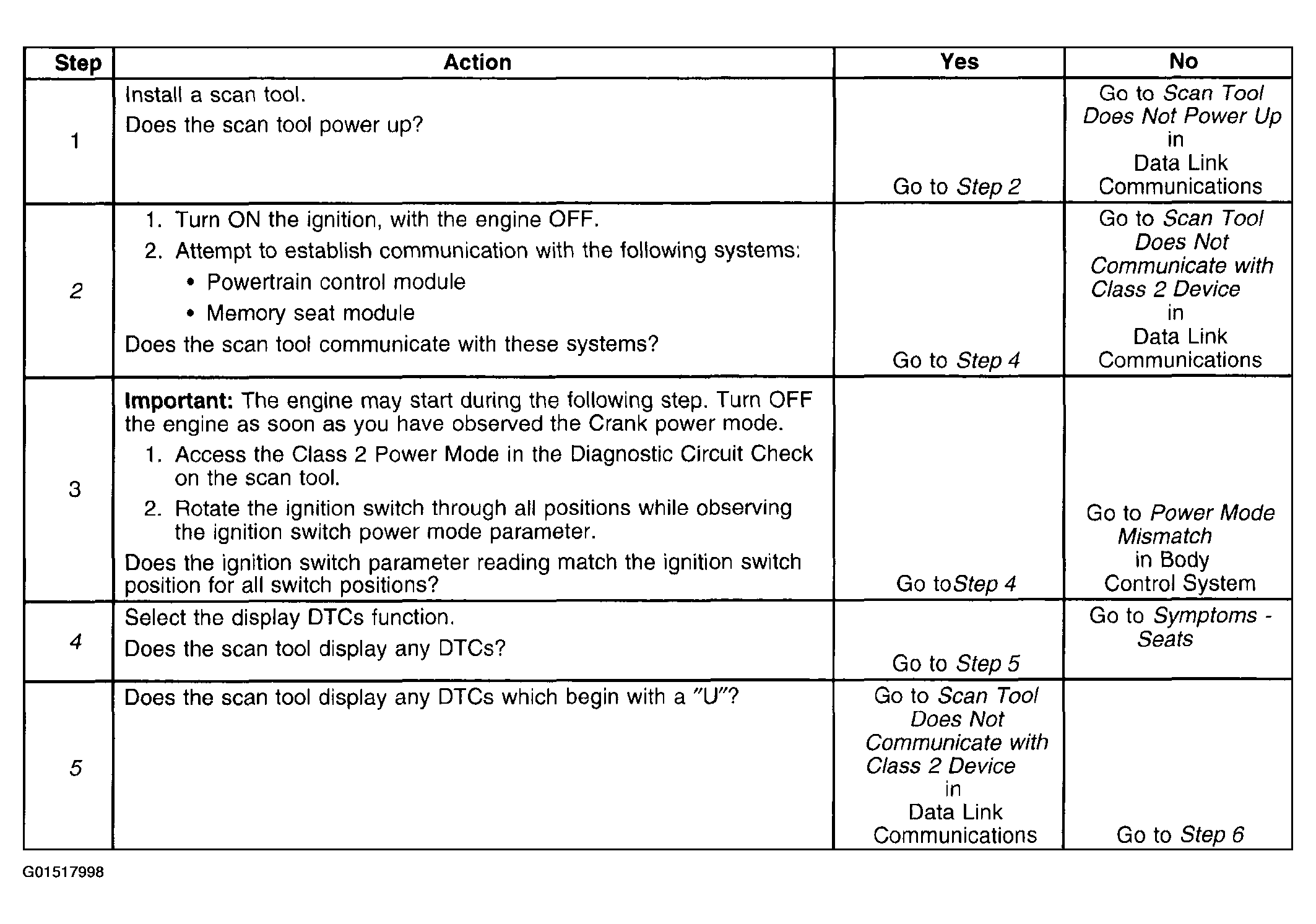

   Fig 1: Power Seat Systems Diagnostic Diagnosis (Steps 1-5)

   Courtesy of GENERAL MOTORS CORP.

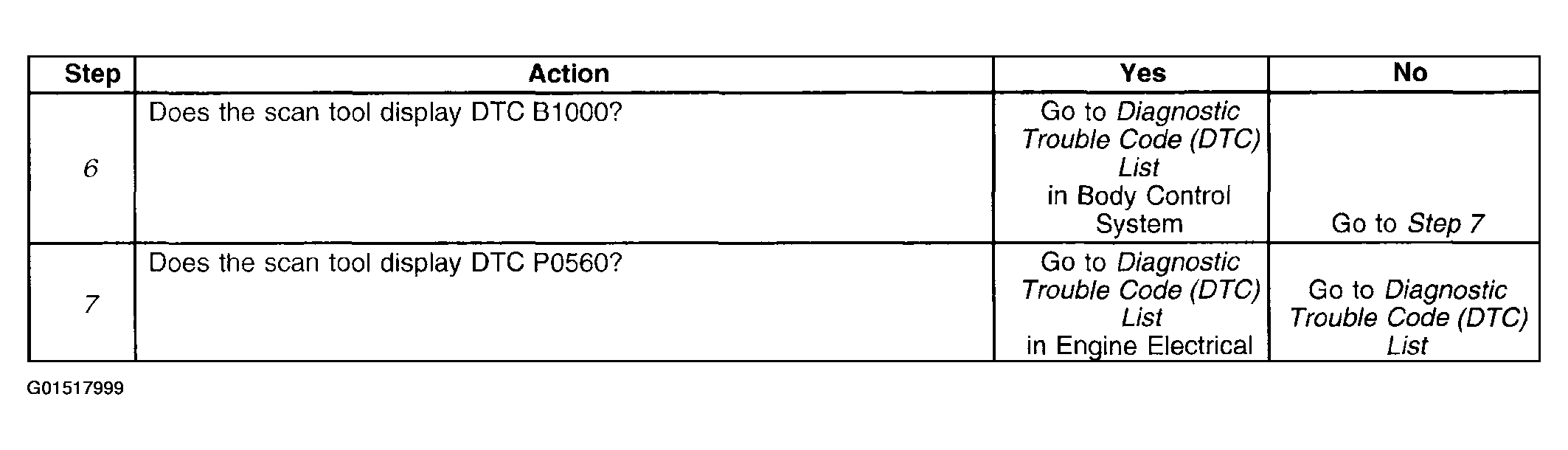

   Fig 2: Power Seat Systems Diagnostic Diagnosis (Steps 6-7)

   Courtesy of GENERAL MOTORS CORP.
