Removal Procedure

Remove the console trim plate. Refer to TRIM PLATE REPLACEMENT -- FRONT FLOOR CONSOLE (AZTEK) or TRIM PLATE REPLACEMENT -- FRONT FLOOR CONSOLE (RENDEZVOUS) .

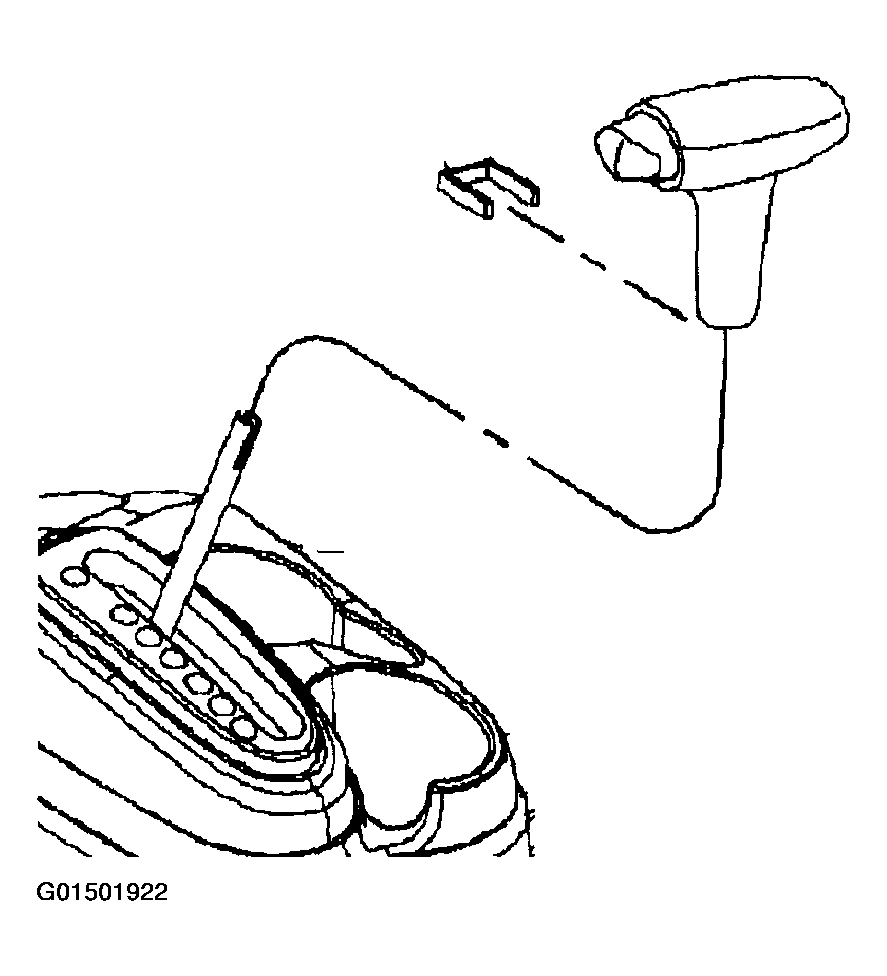

Fig 1: Installing Shift Indicator (5 Of 5)
Courtesy of GENERAL MOTORS CORP.
Use a flat-bladed tool in order to remove the shift cable end from the shift control lever.

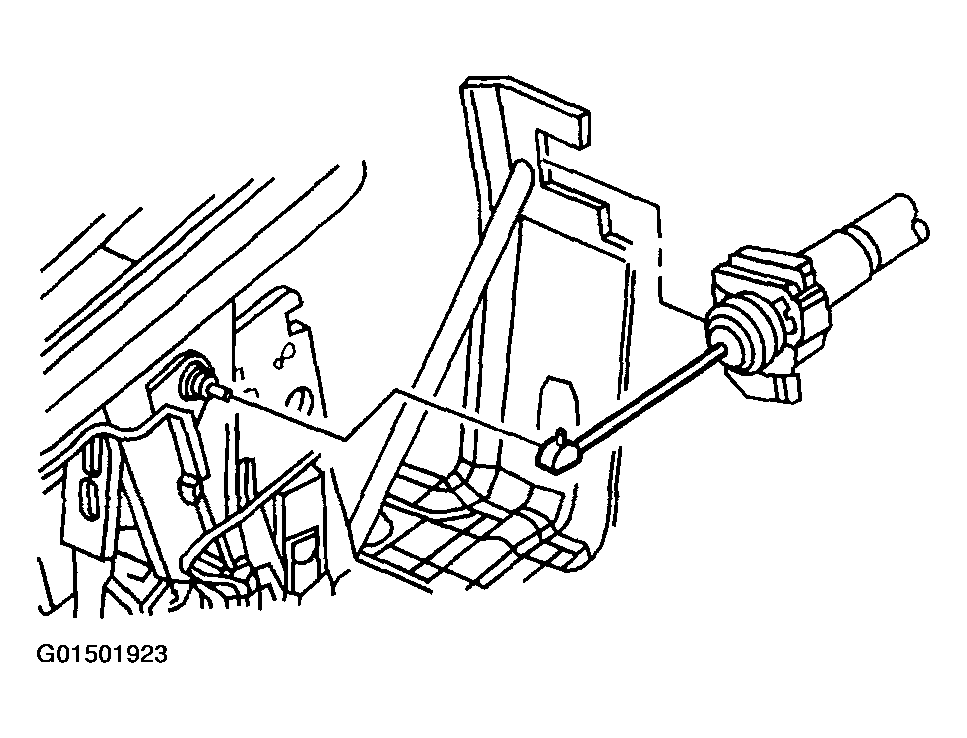

Fig 2: Removing Floor Shift Control (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Remove the shift control cable from the shift control.
Remove the shift control wire harness from the shift control.
Remove the shift control fasteners.
Remove the shift control.

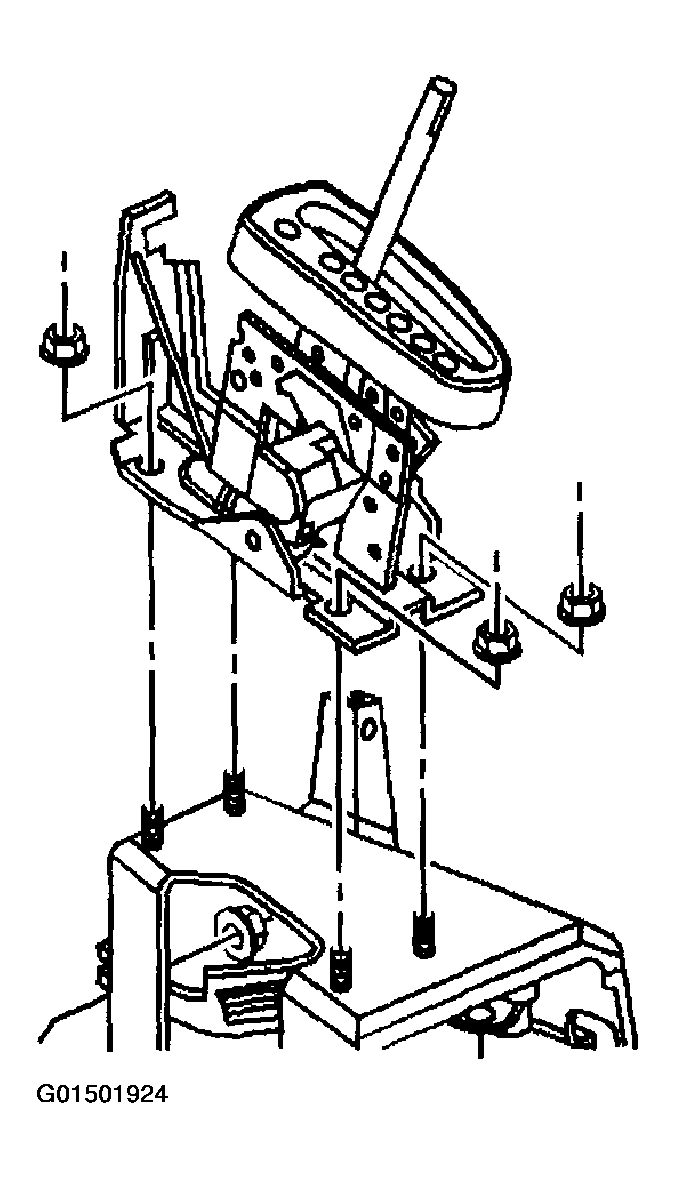

Fig 3: Removing Floor Shift Control (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
