Component Location

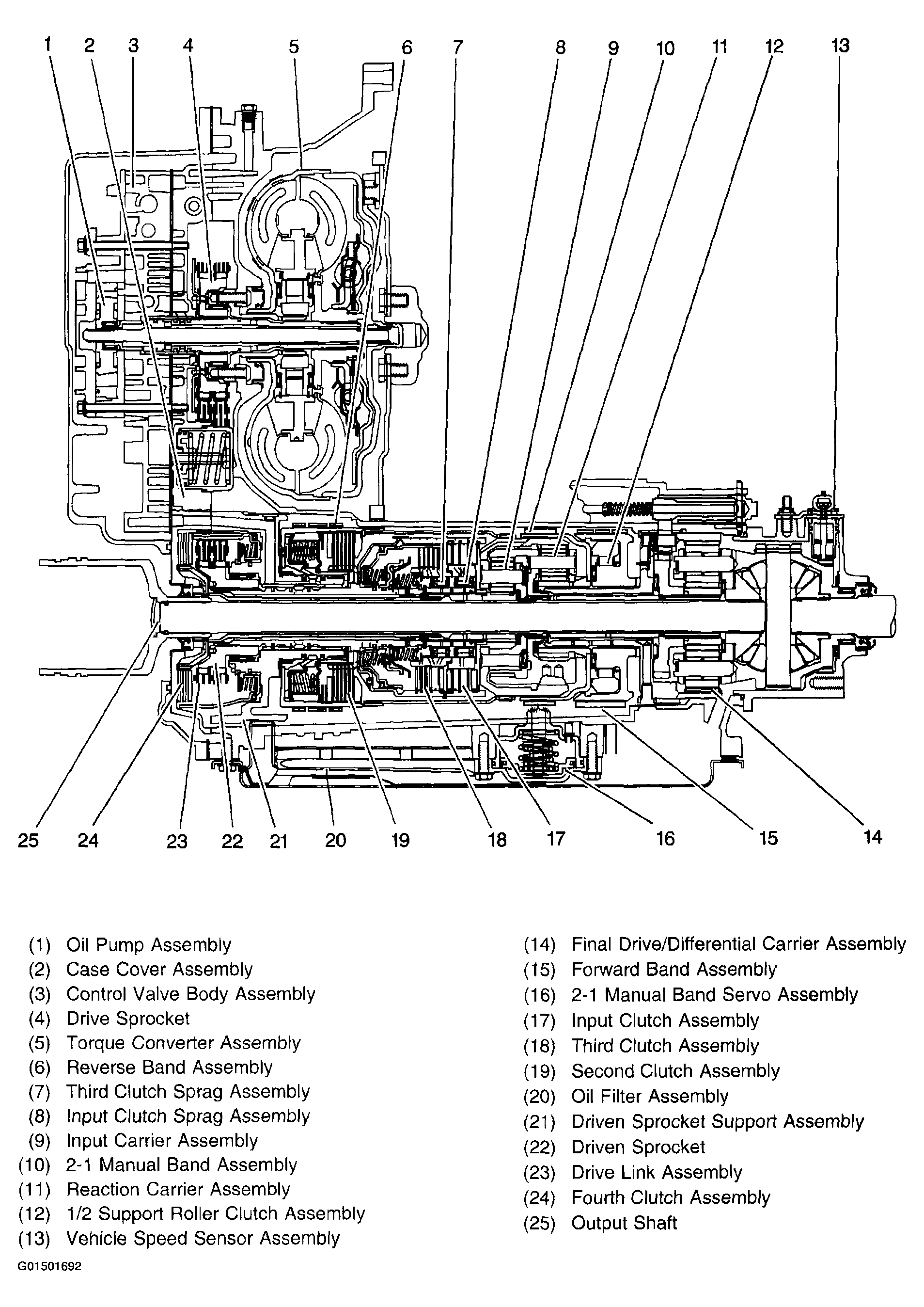

Fig 1: Locating Transmission Major Components

Courtesy of GENERAL MOTORS CORP.

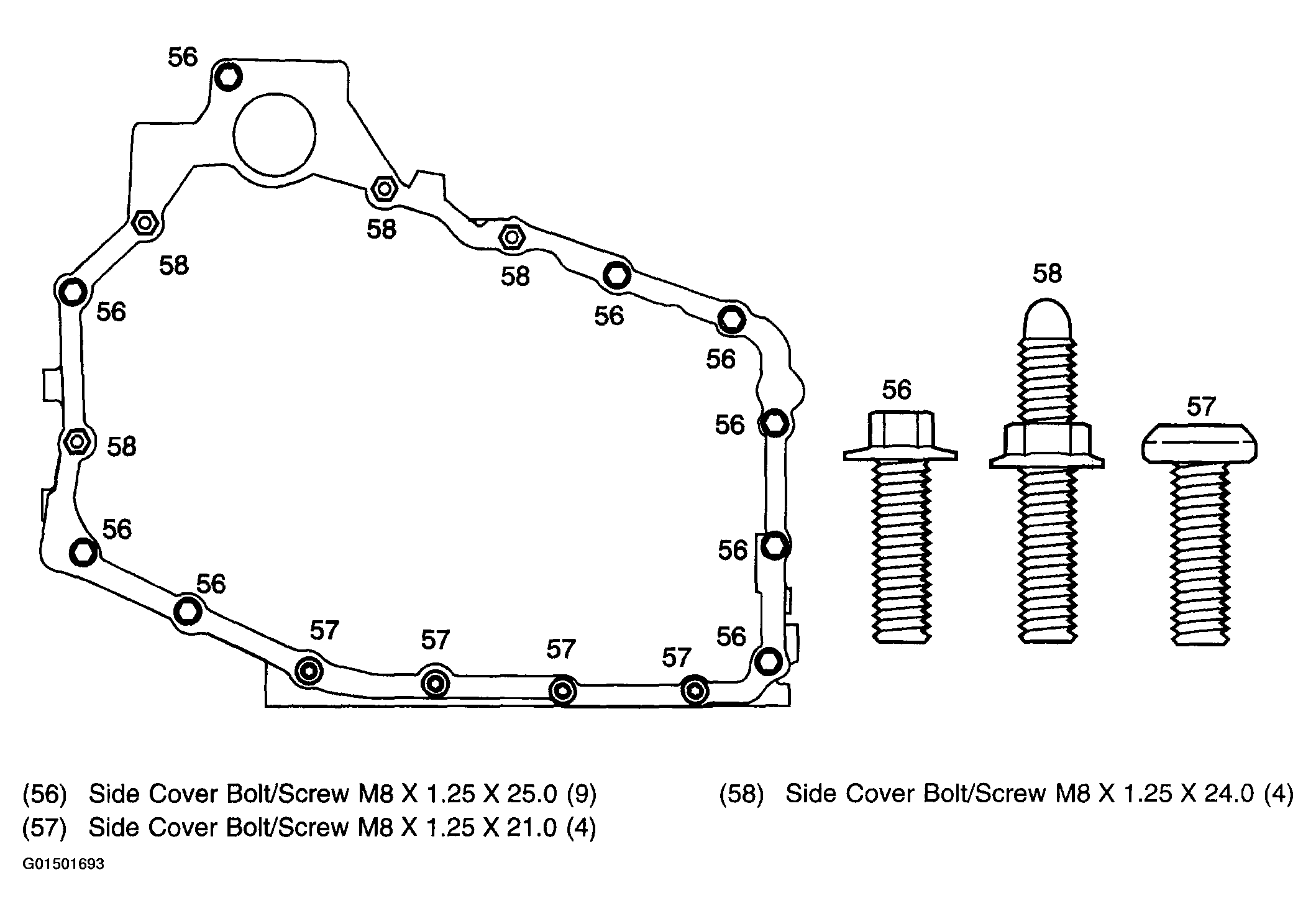

Fig 2: Identifying Case Side Cover Bolts

Courtesy of GENERAL MOTORS CORP.

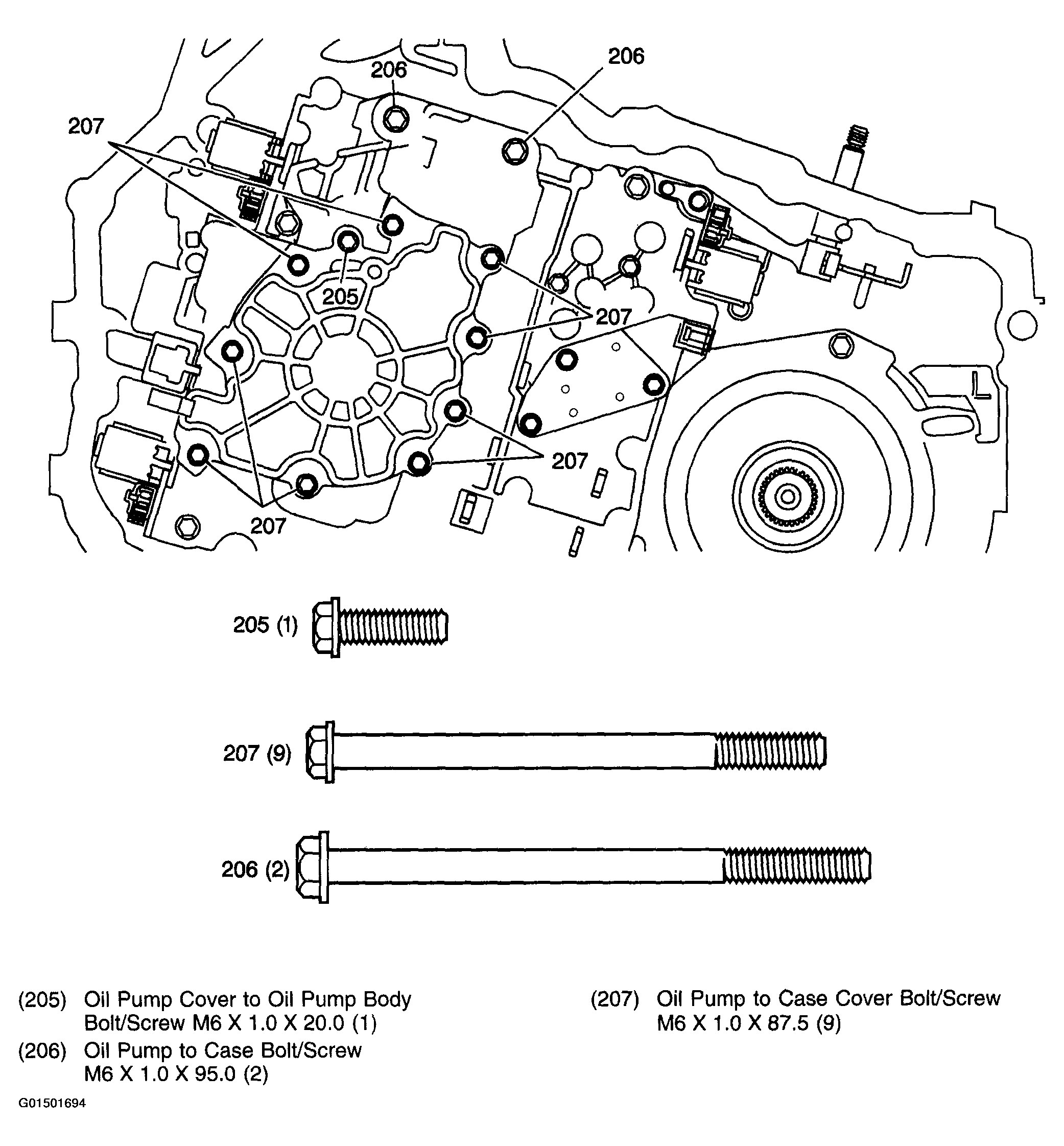

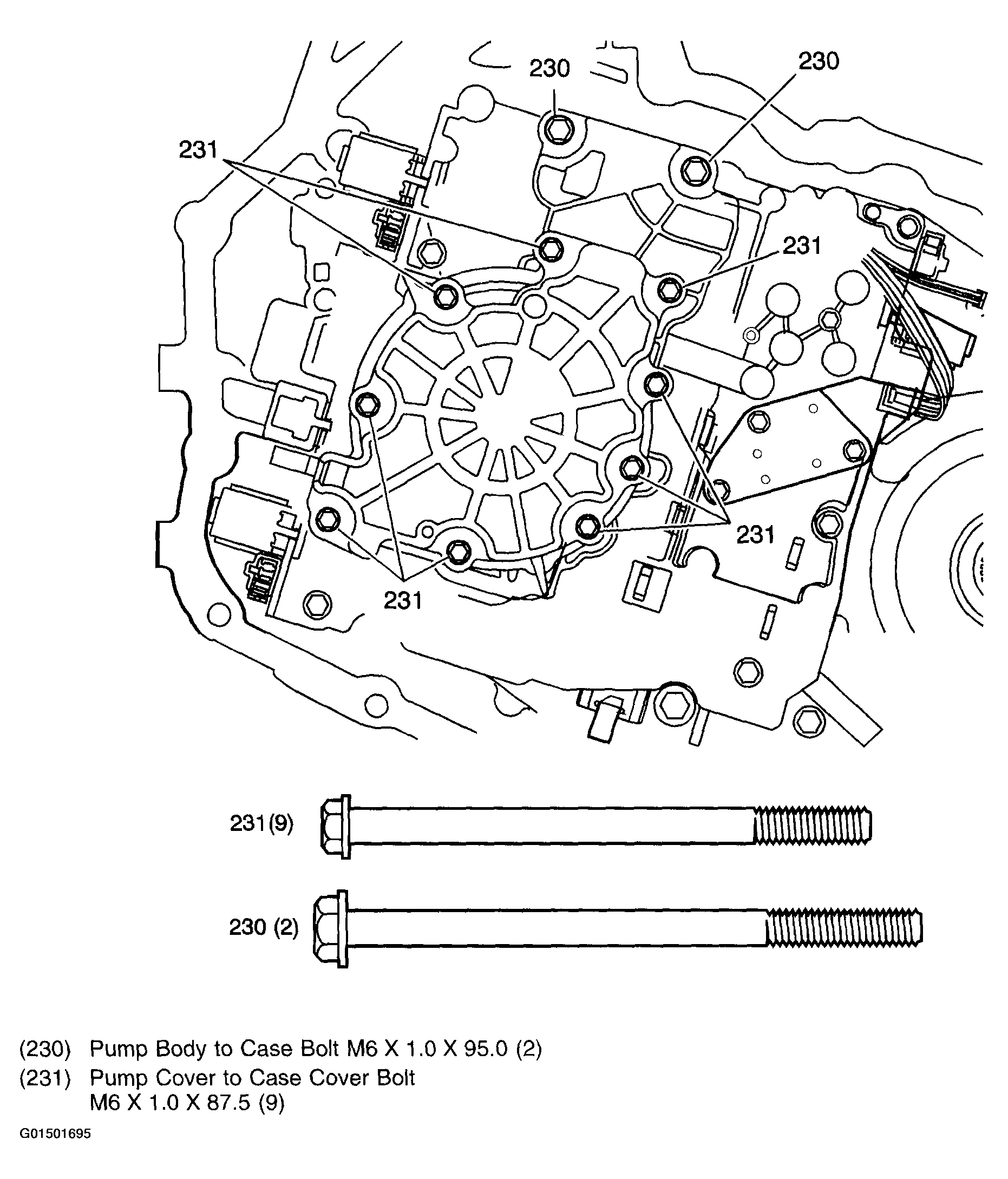

Fig 3: Identifying OH Pump Bolts - 2 Piece Pump

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Oil Pump Bolts - 3 Piece Pump

Courtesy of GENERAL MOTORS CORP.

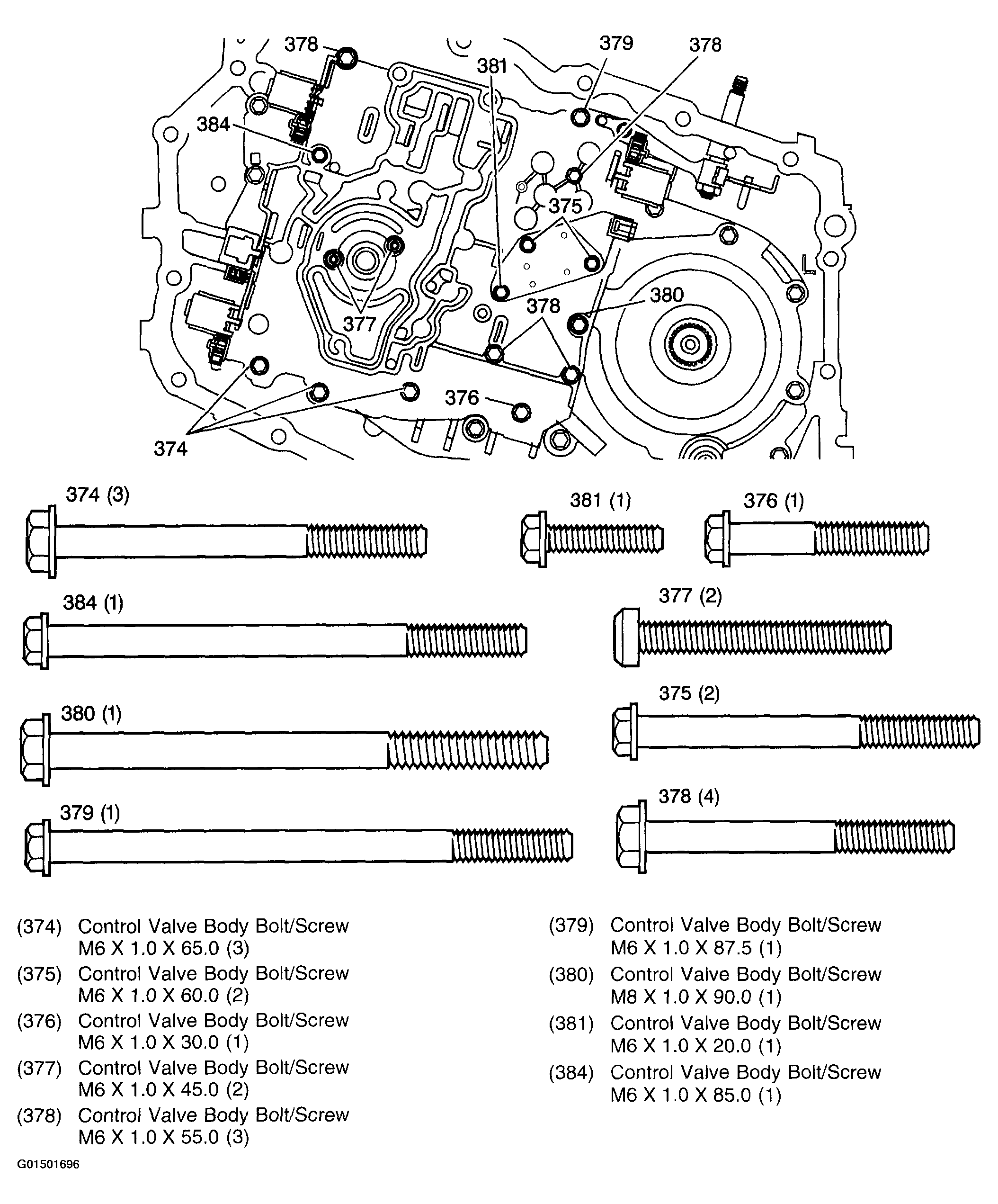

Fig 5: Identifying Control Valve Body Bolts

Courtesy of GENERAL MOTORS CORP.

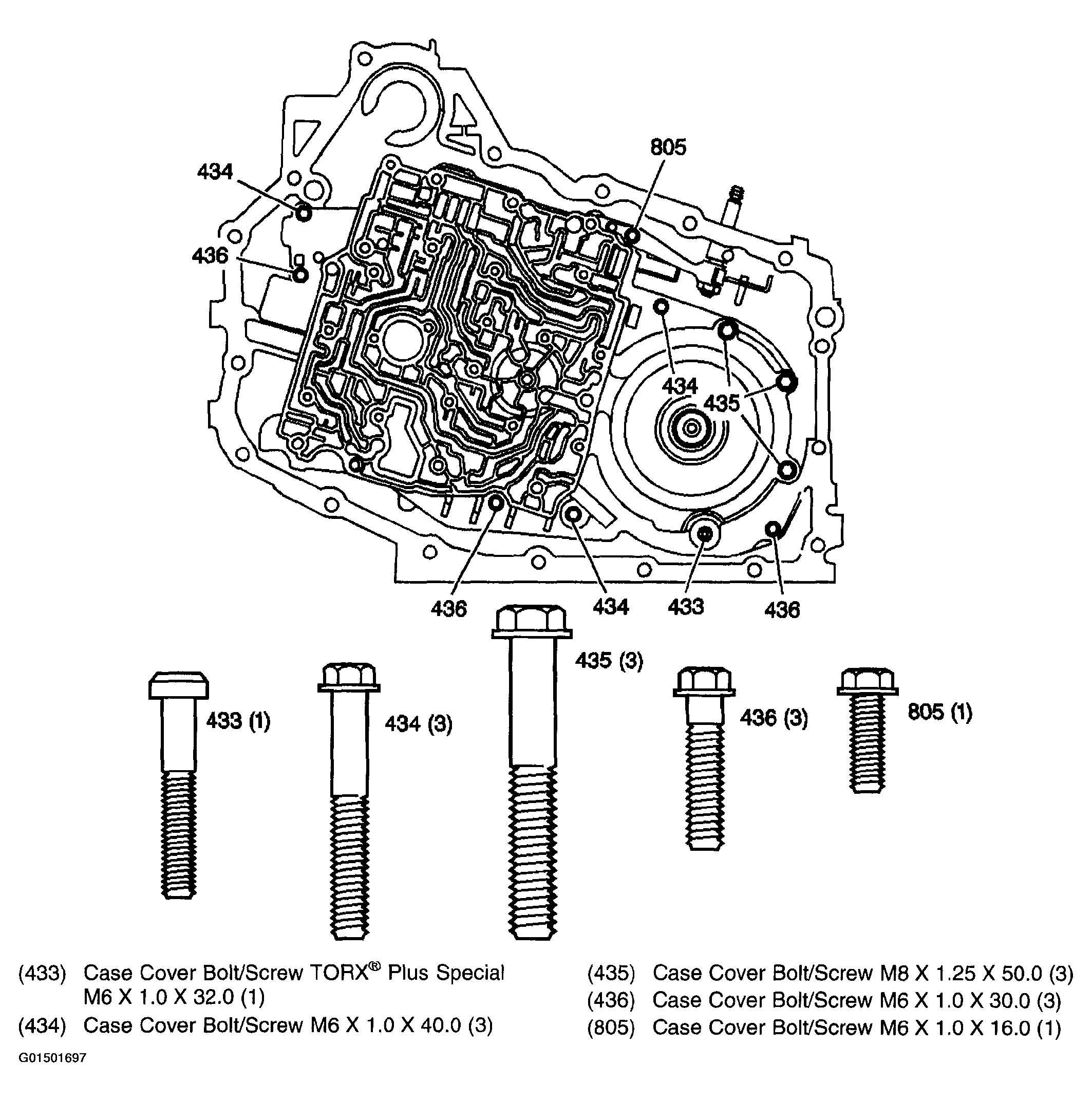

Fig 6: Identifying Case Cover Bolts

Courtesy of GENERAL MOTORS CORP.

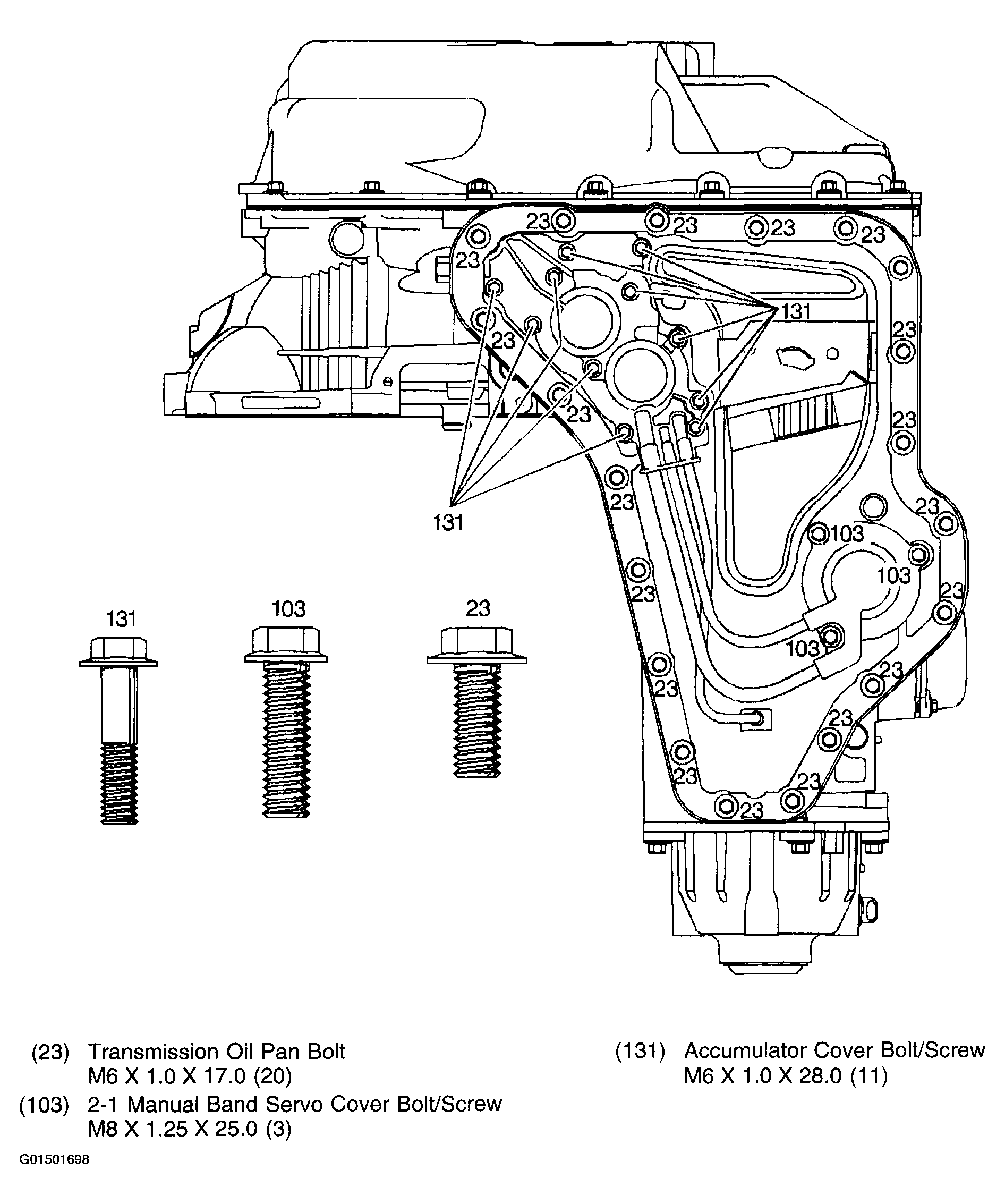

Fig 7: Identifying Bottom Pan, Accumulator Cover & Manual 2-1 Band Servo Cover Bolts

Courtesy of GENERAL MOTORS CORP.

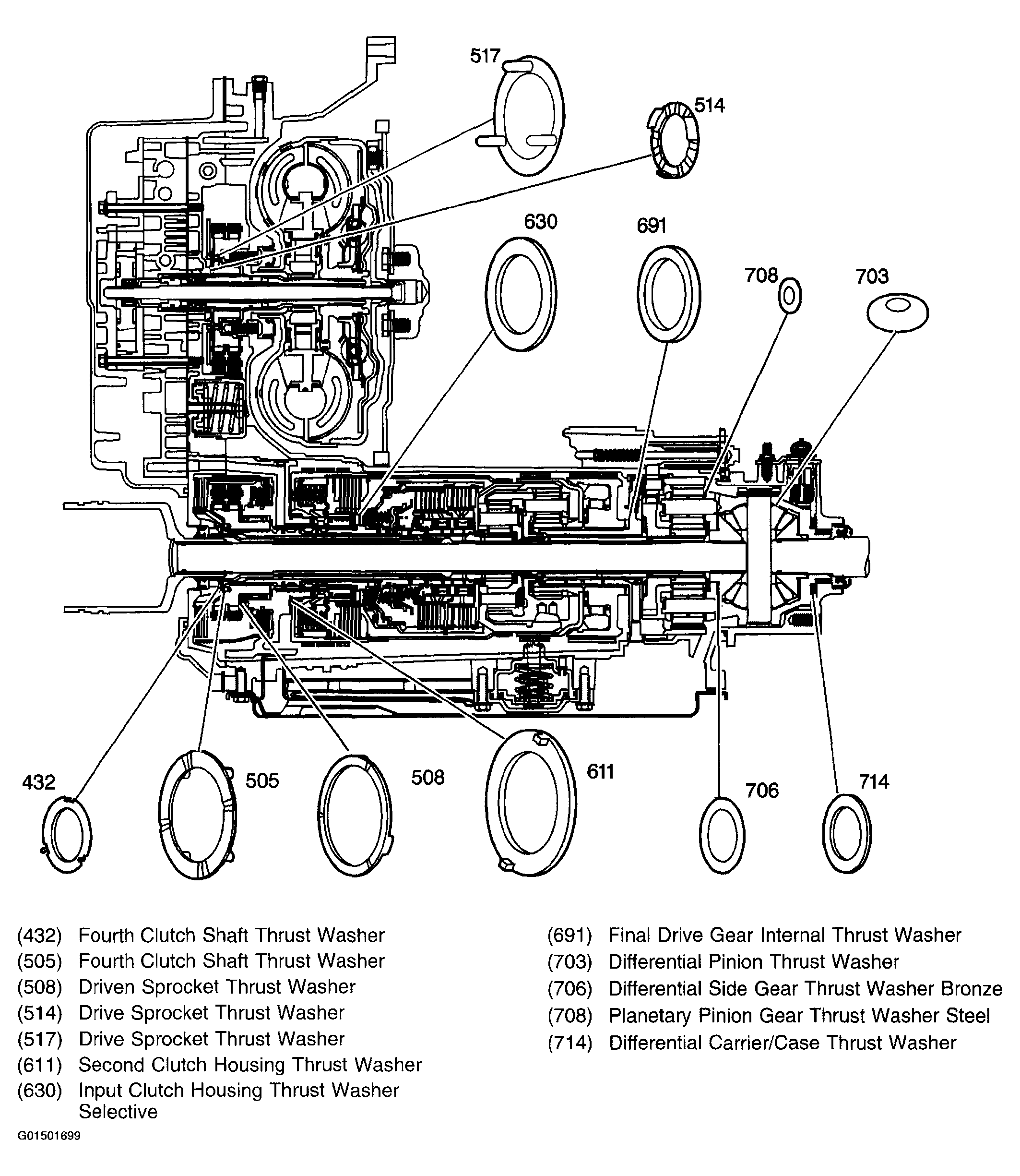

Fig 8: Locating Thrust Washers

Courtesy of GENERAL MOTORS CORP.

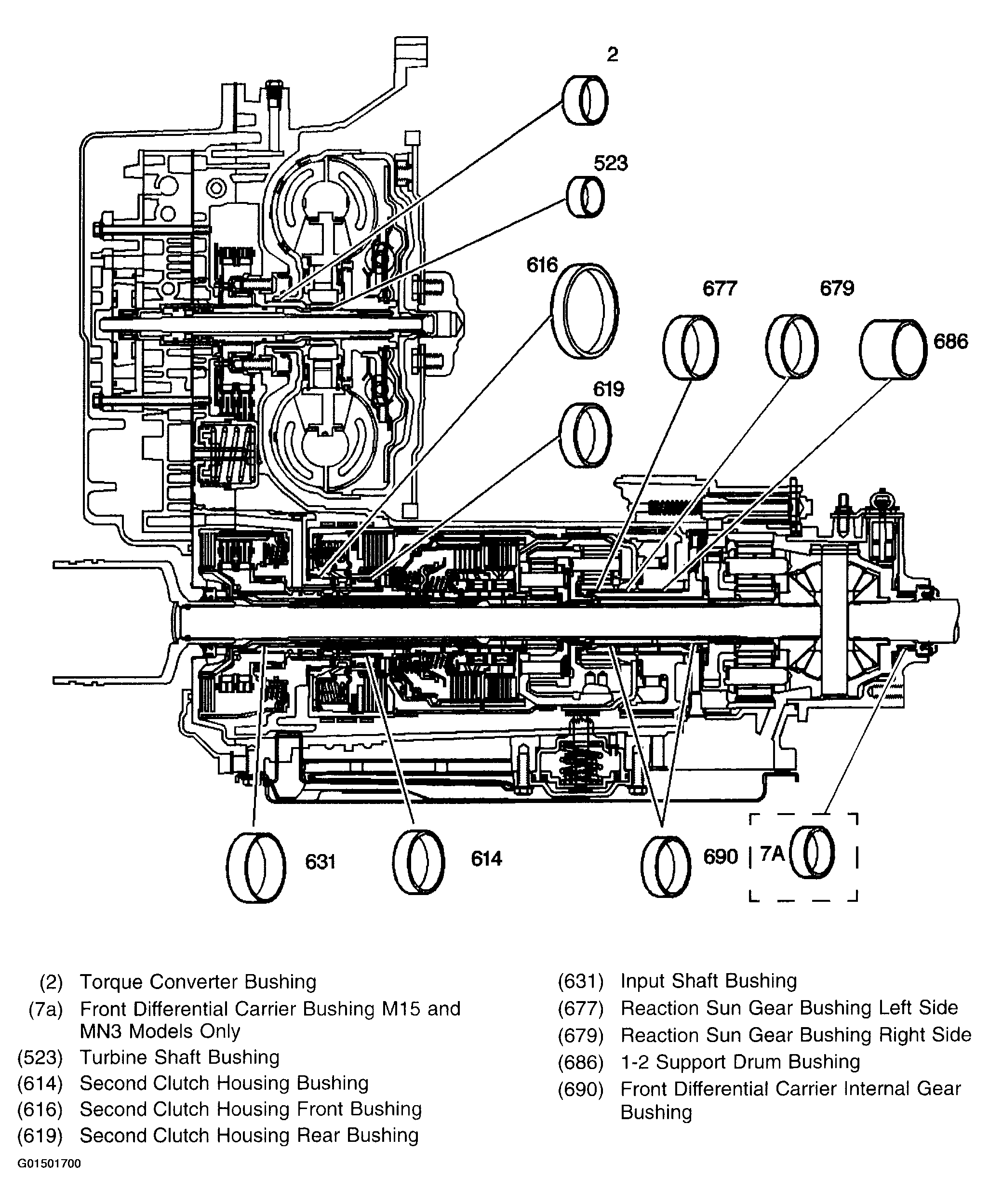

Fig 9: Locating Bushings

Courtesy of GENERAL MOTORS CORP.

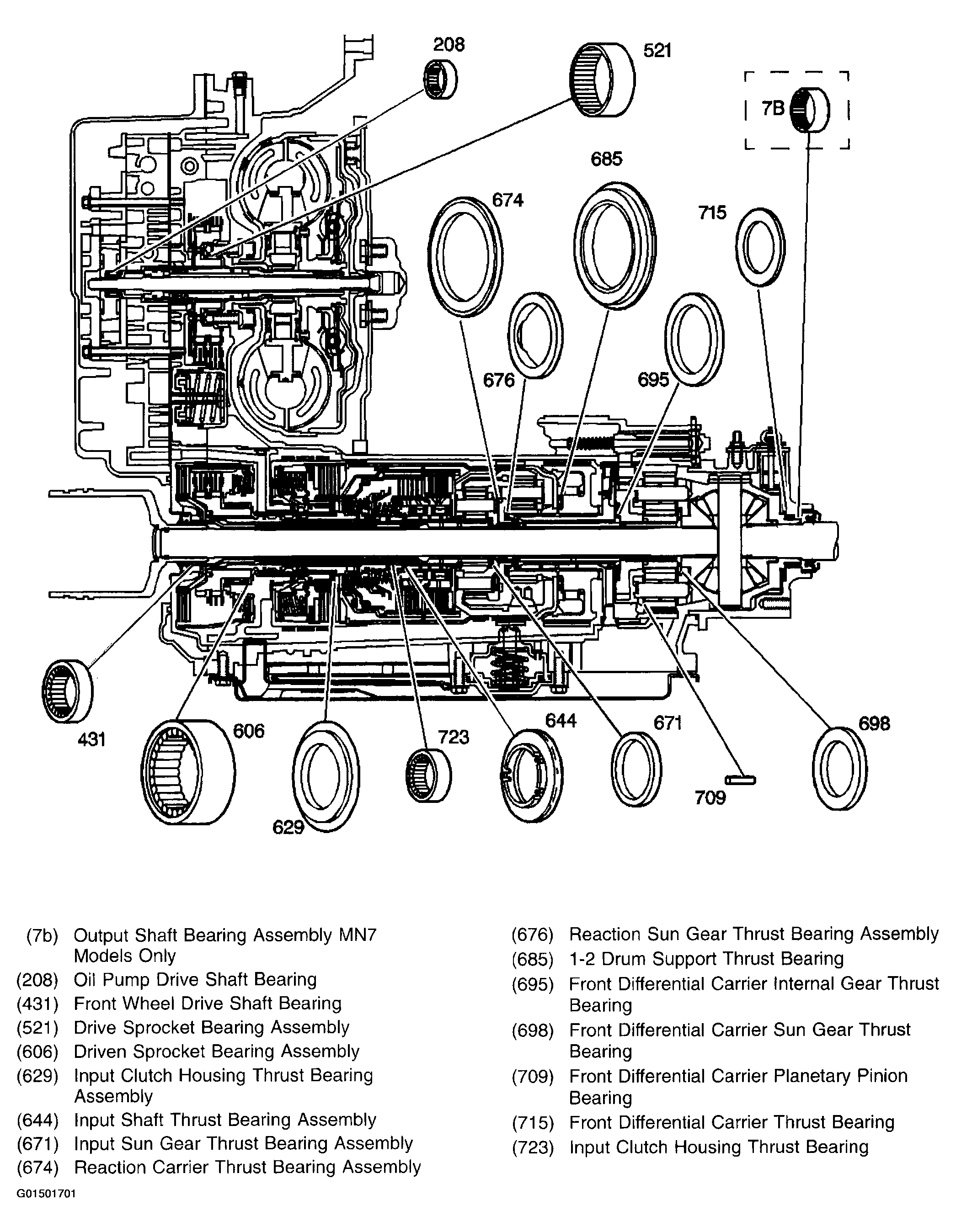

Fig 10: Locating Bearings

Courtesy of GENERAL MOTORS CORP.

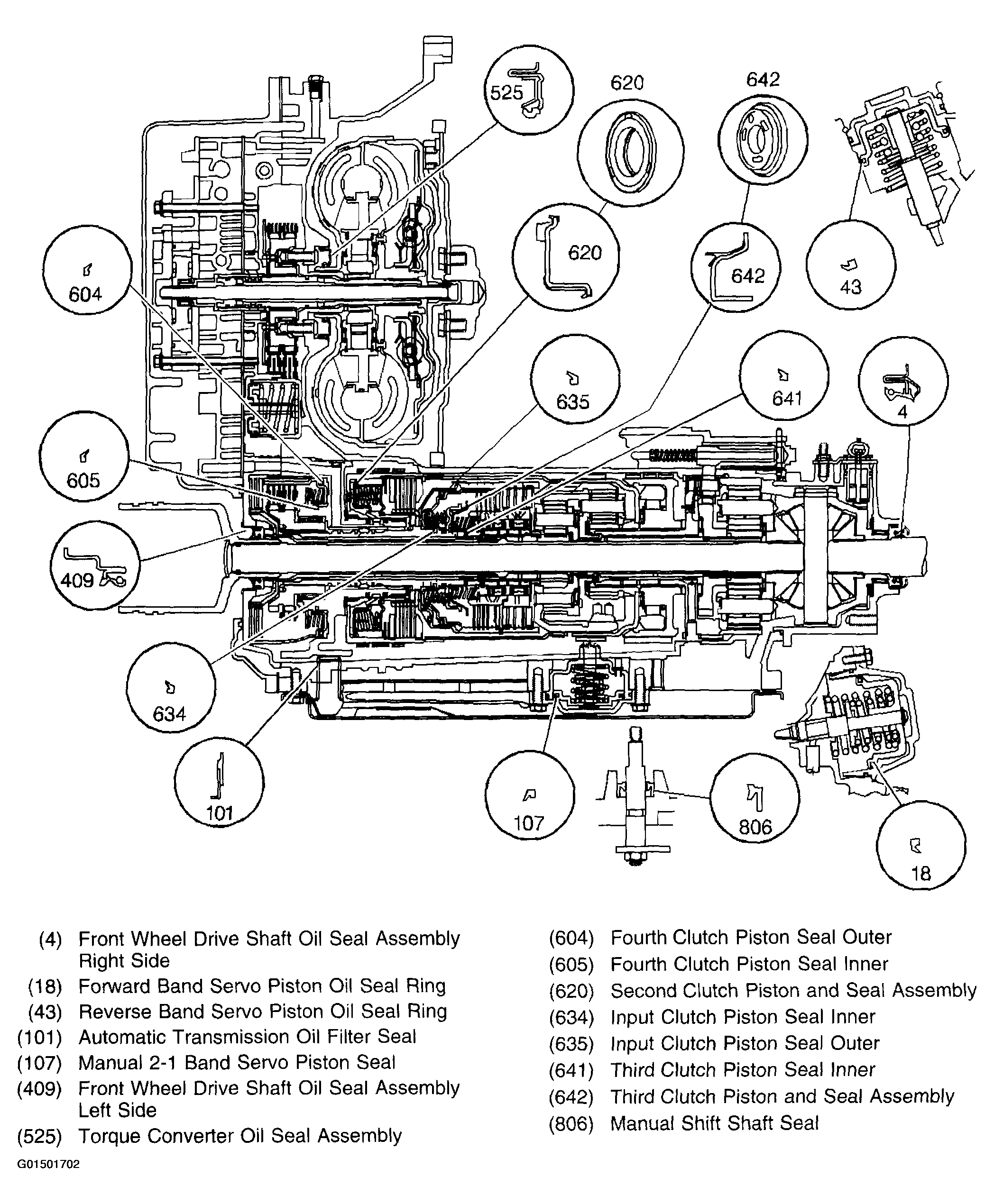

Fig 11: Locating Lip Seals

Courtesy of GENERAL MOTORS CORP.

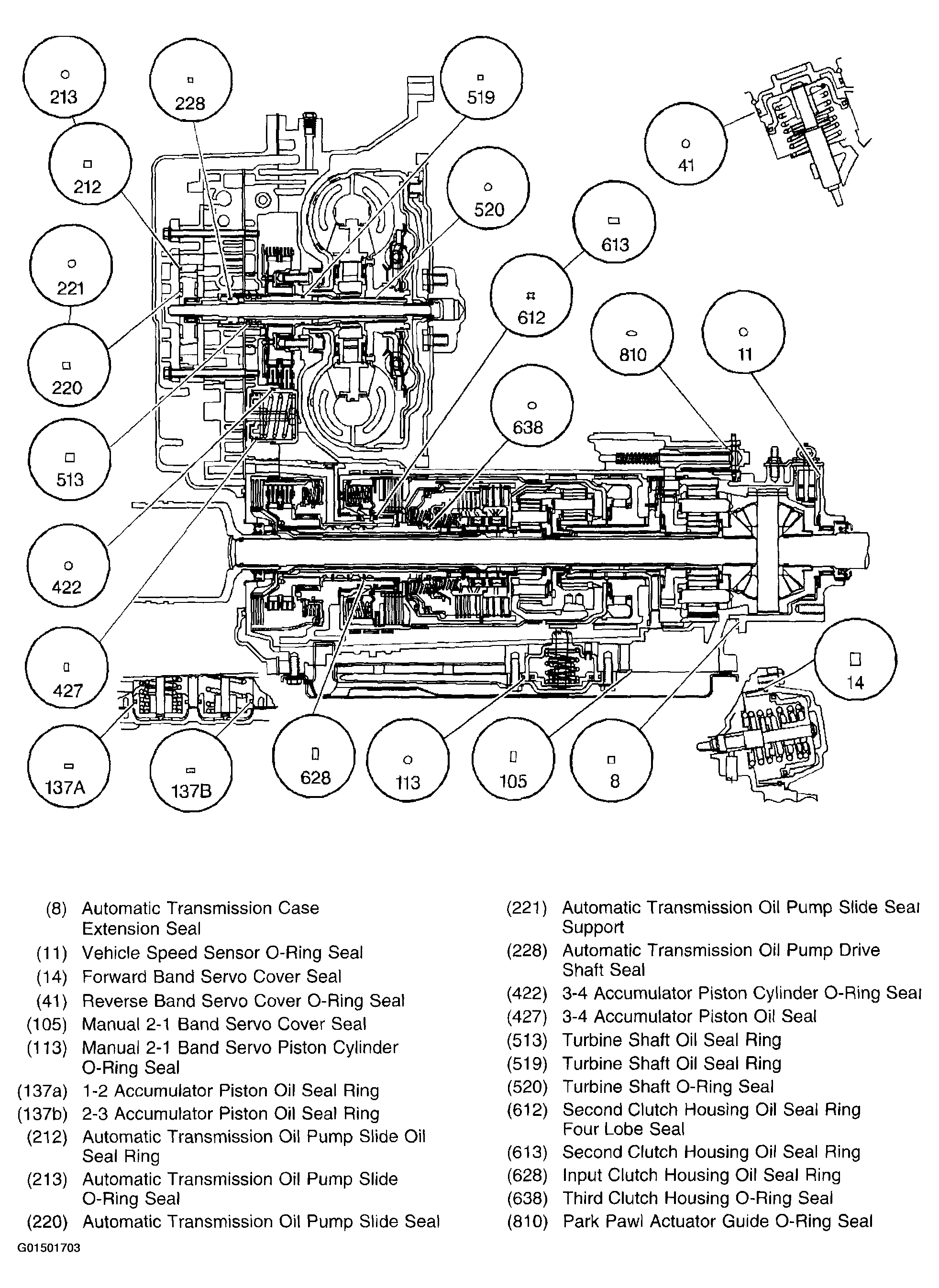

Fig 12: Locating Square And O-Ring Seals

Courtesy of GENERAL MOTORS CORP.

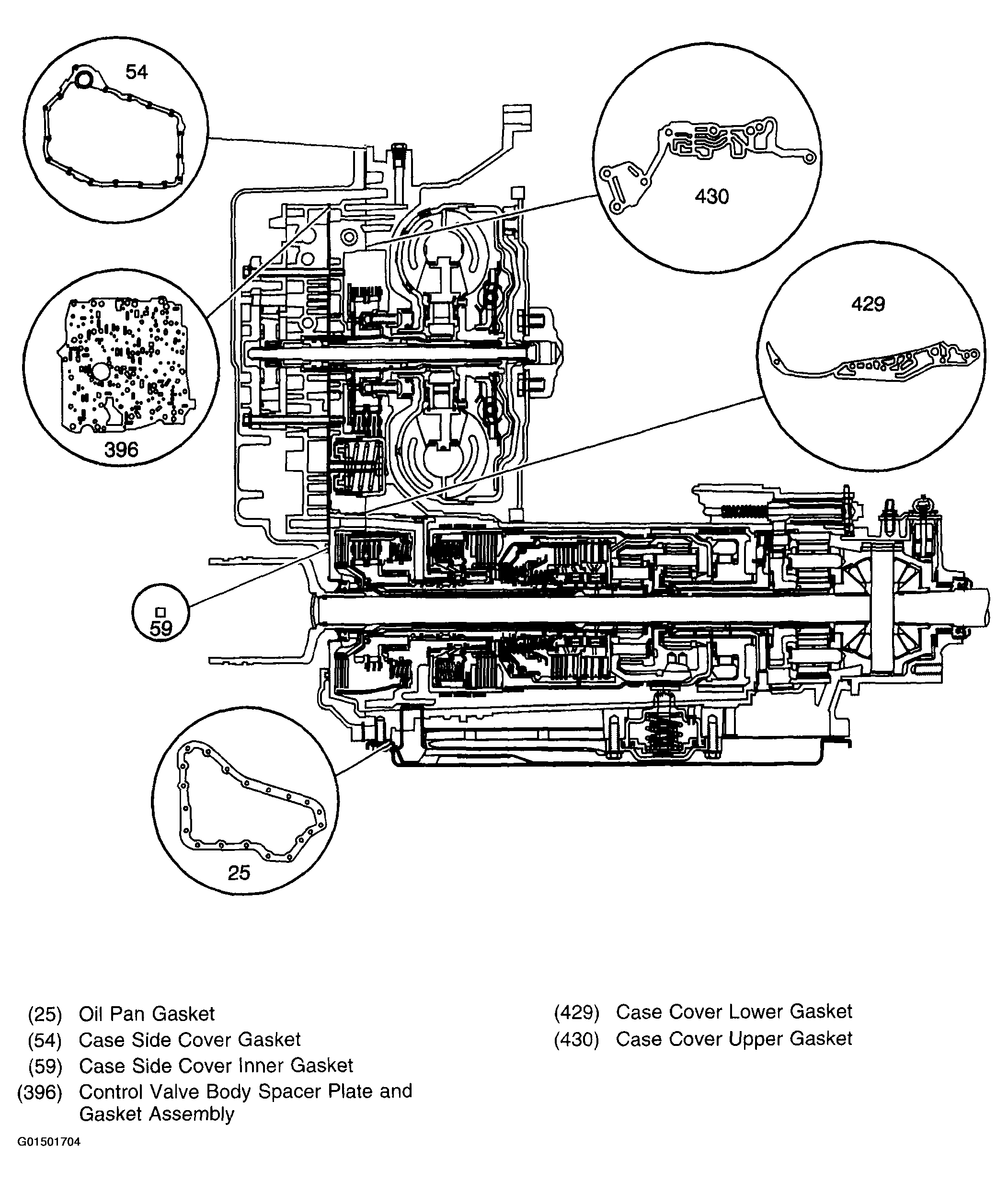

Fig 13: Locating Gaskets

Courtesy of GENERAL MOTORS CORP.

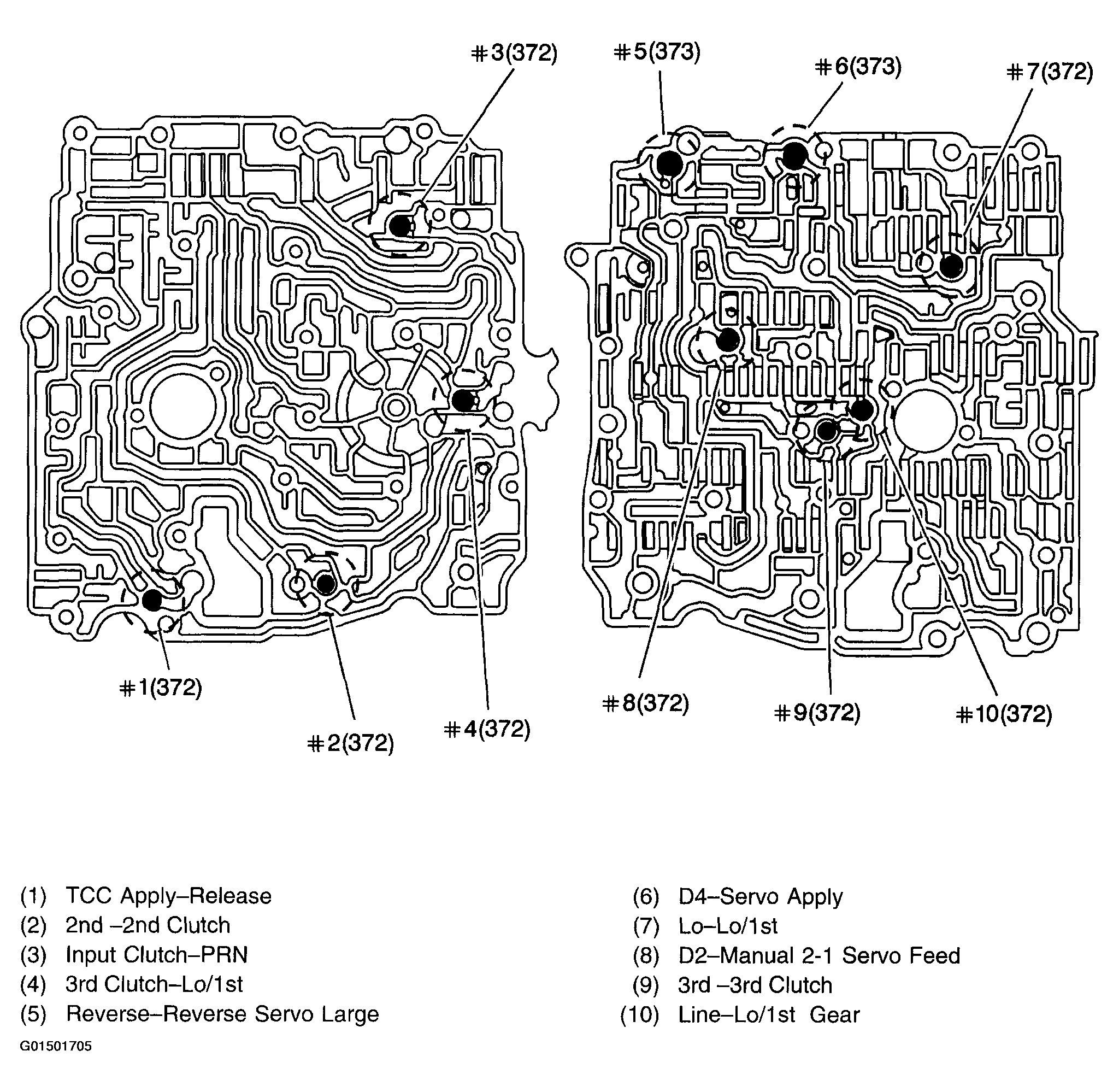

Fig 14: Locating Ball Check Valves

Courtesy of GENERAL MOTORS CORP.
