Automatic Transmission Electronic Component Views

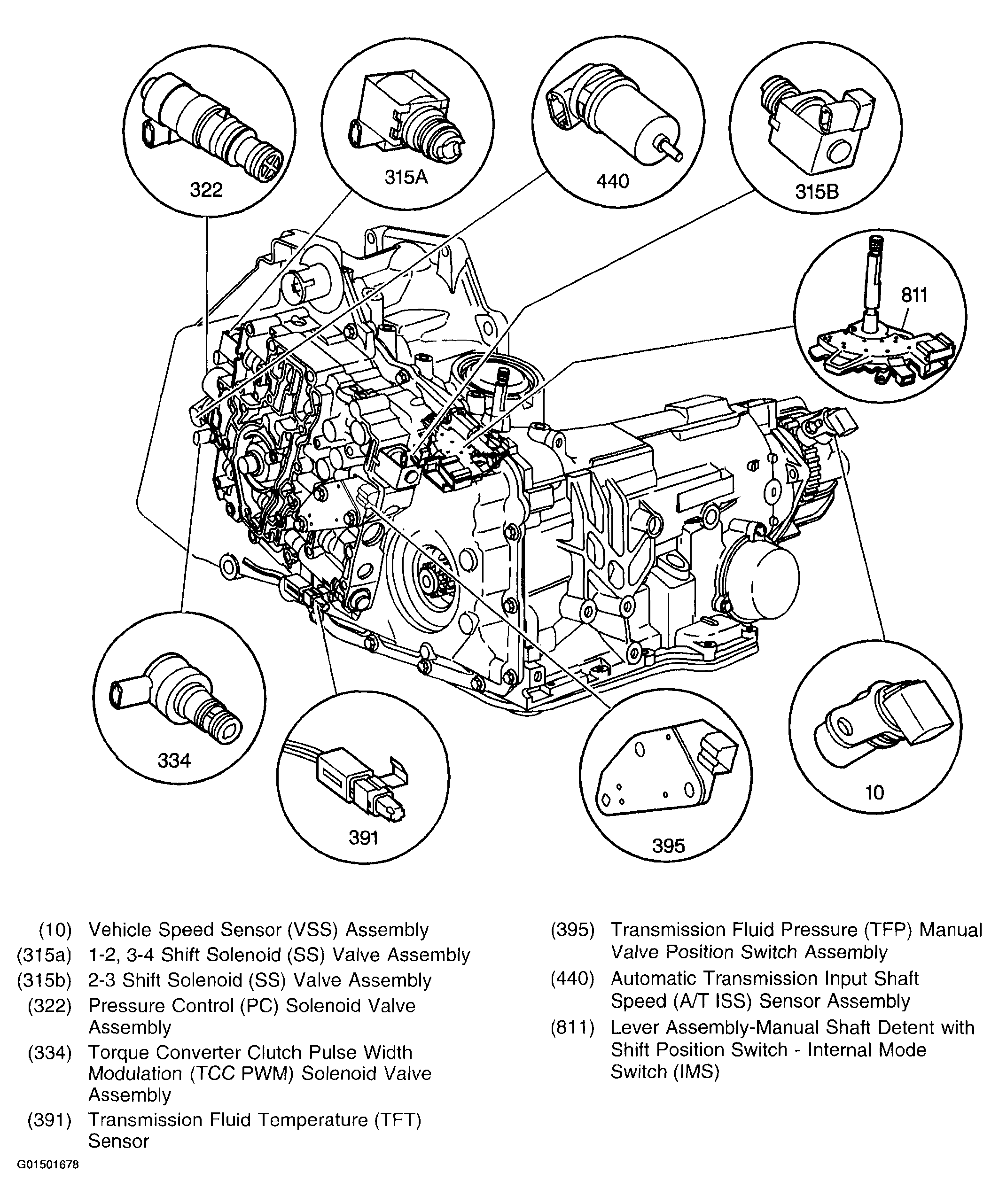

Fig 1: Locating Internal Electronic Components Of Automatic Transmission
G01501678Courtesy of GENERAL MOTORS CORP.
