Installation Procedure

  1. Install the link to the tie rod and the sensor arm.
  2. Lower the vehicle.

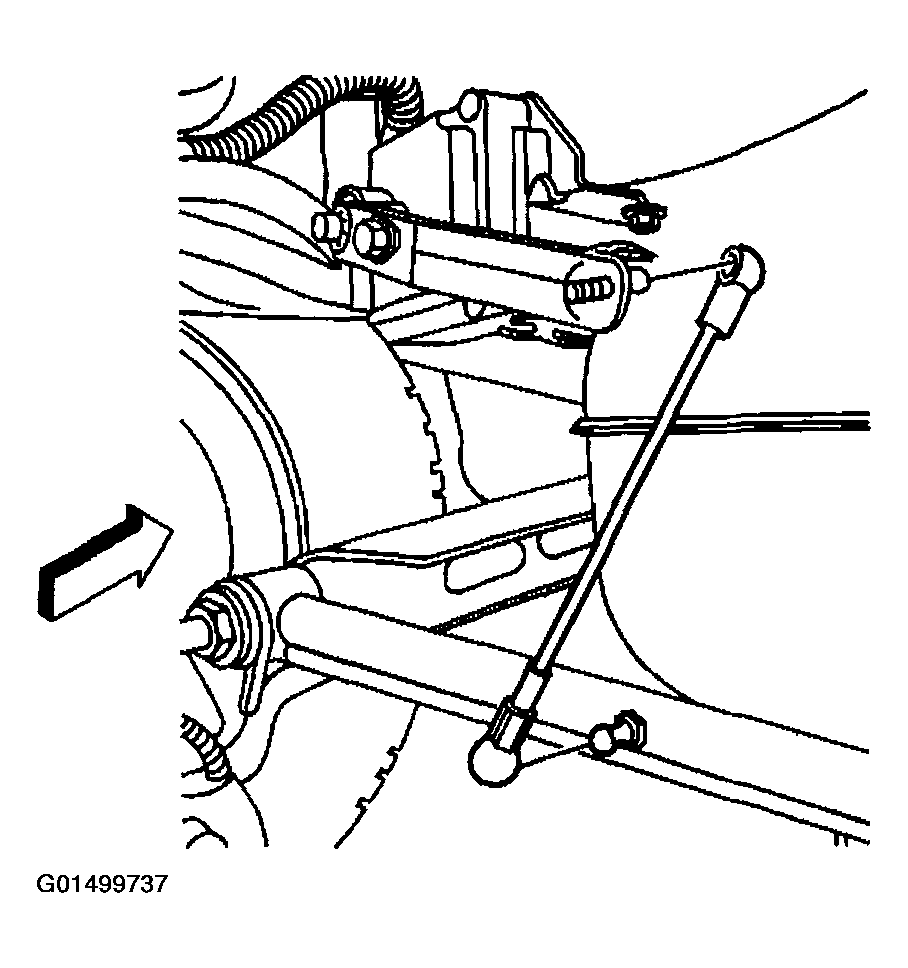

    Fig 1: Installing Link To Tie Rod And Sensor Arm
    G01499737Courtesy of GENERAL MOTORS CORP.
