Schematic and Routing Diagrams

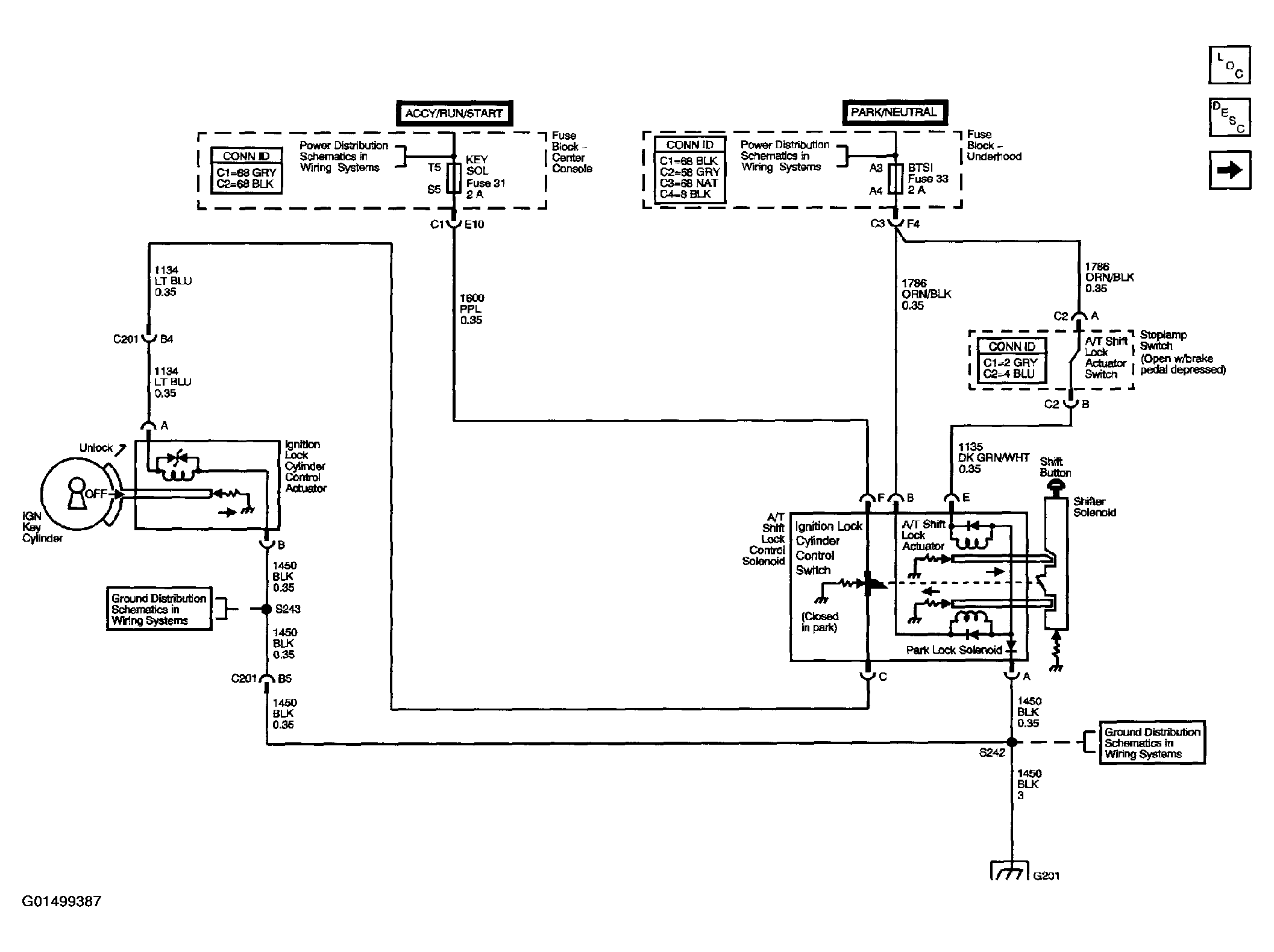

Fig 1: Column/Ignition Lock Schematics Diagram (Aztek)
G01499387Courtesy of GENERAL MOTORS CORP.

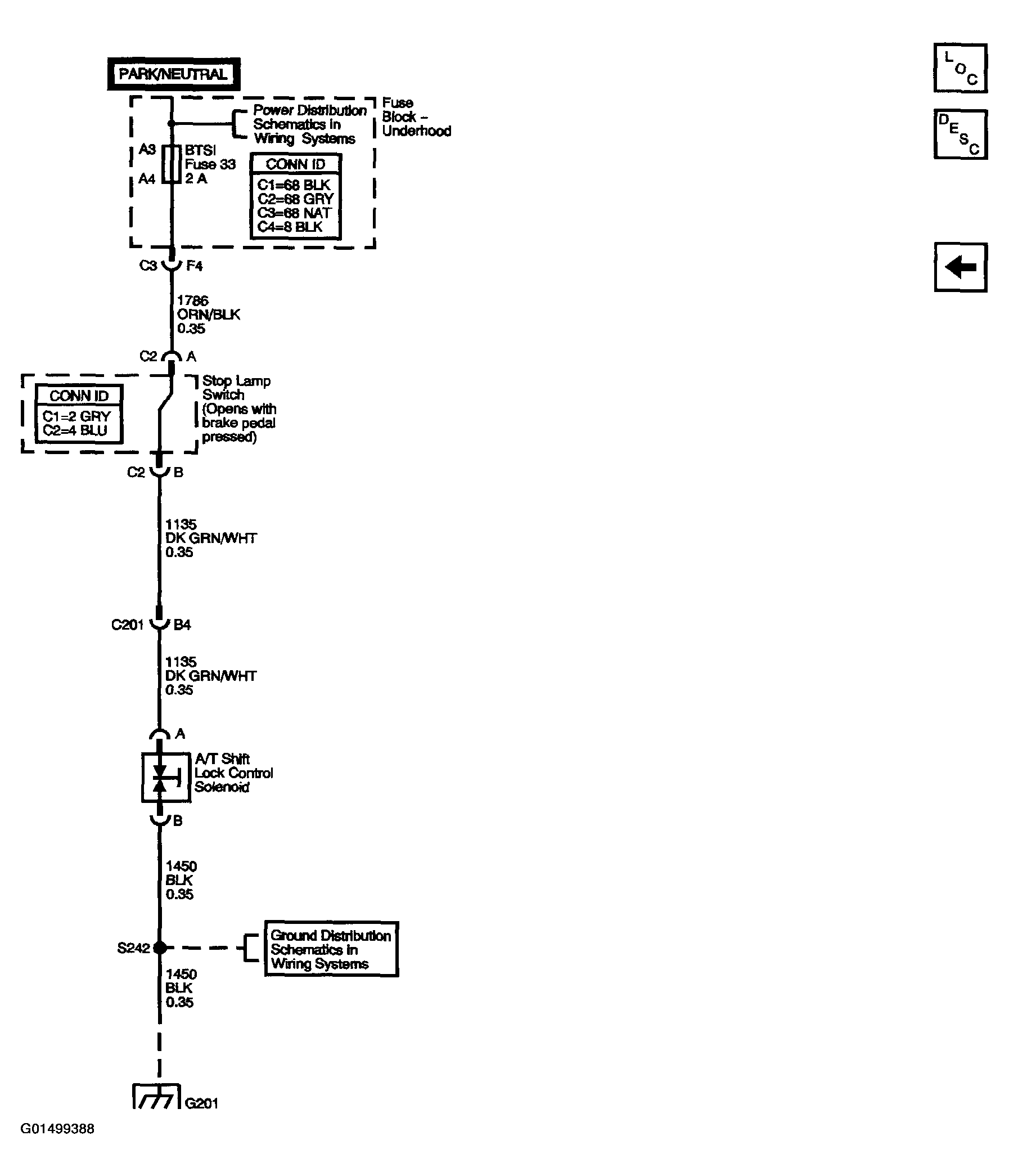

Fig 2: Column/Ignition Lock Schematics Diagram (Rendezvous)
G01499388Courtesy of GENERAL MOTORS CORP.
