Removal Procedure

  1. Remove the knee bolster.
  2. Remove the steering column upper nut.
  3. Remove the center console.

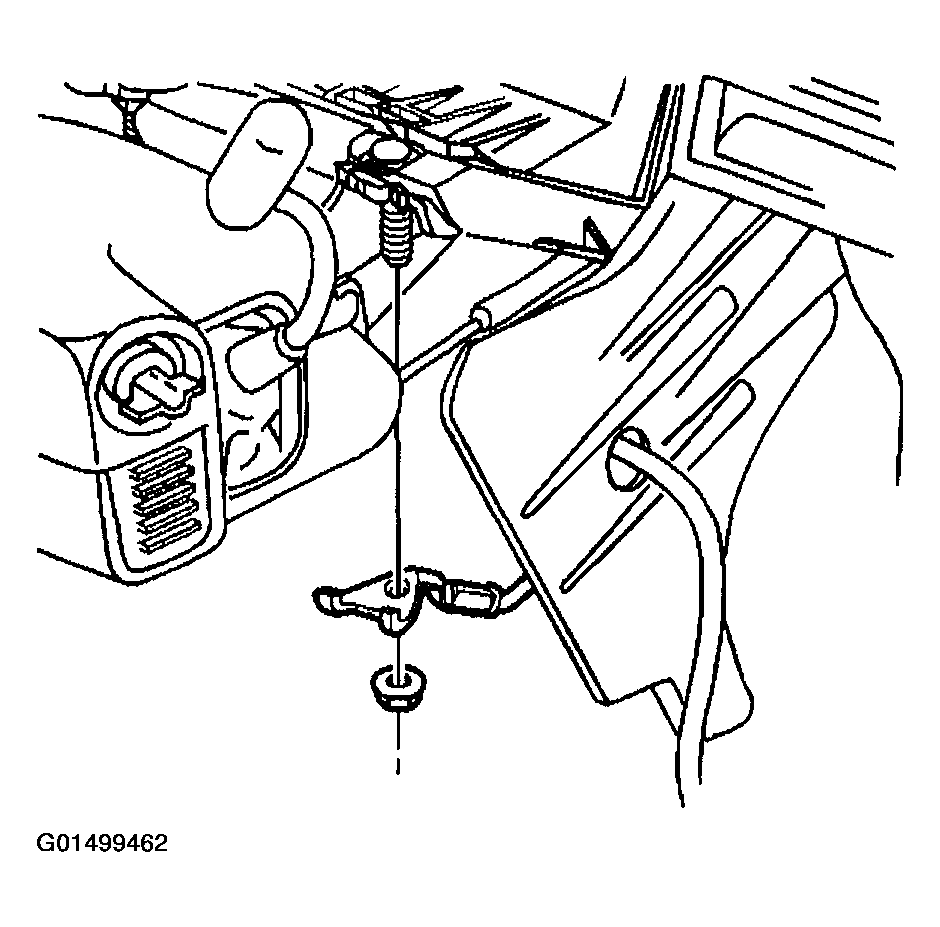

    Fig 1: Removing Steering Column Upper Nut
    G01499462Courtesy of GENERAL MOTORS CORP.
  4. Remove the anchor cable nut from the center console bracket.
  5. Remove the anchor cable.

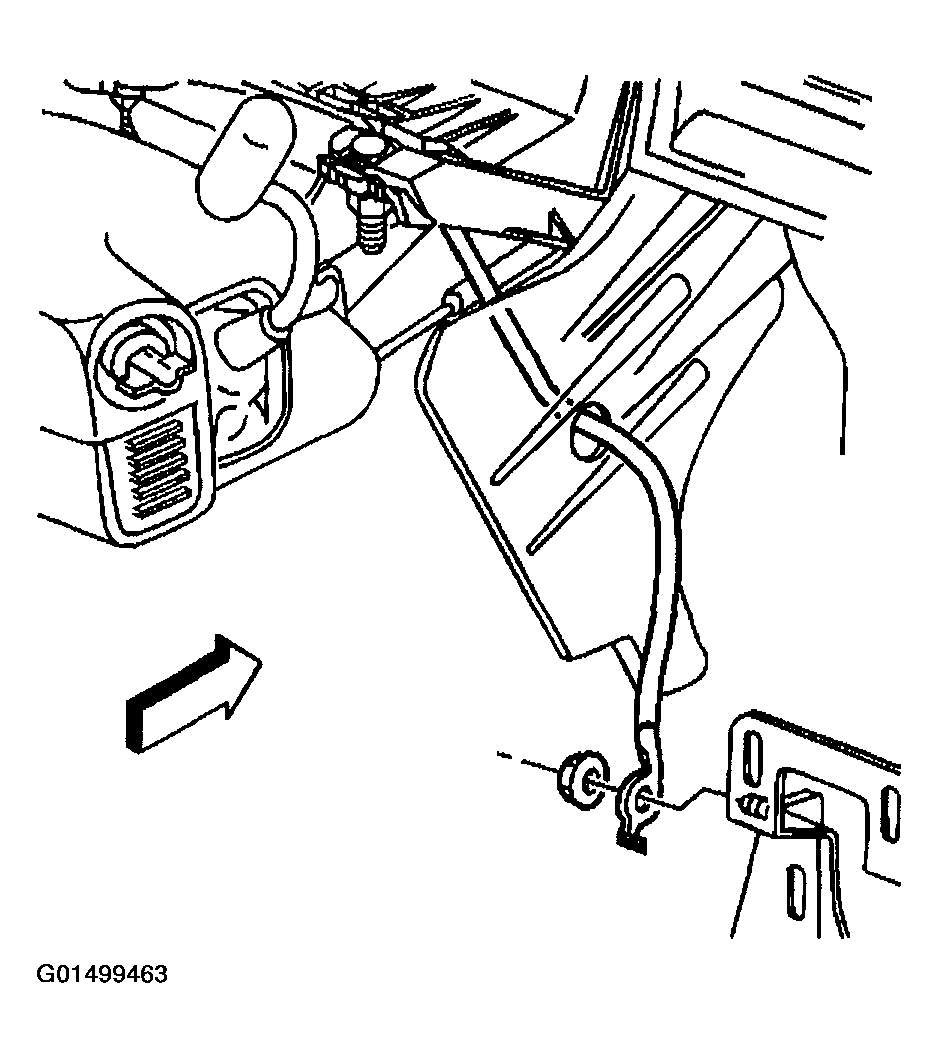

    Fig 2: Removing Anchor Cable
    G01499463Courtesy of GENERAL MOTORS CORP.
