Installation Procedure
- Connect the electrical connector to the ignition switch.

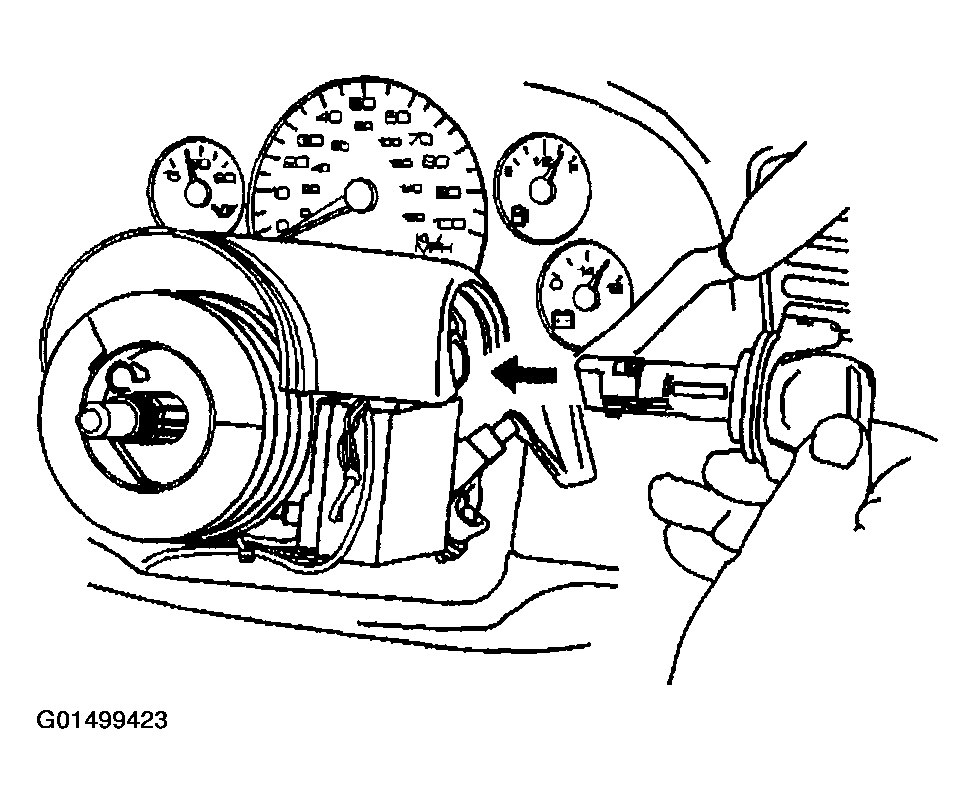

- Slide the ignition switch into the ignition lock cylinder case.
Courtesy of GENERAL MOTORS CORP.

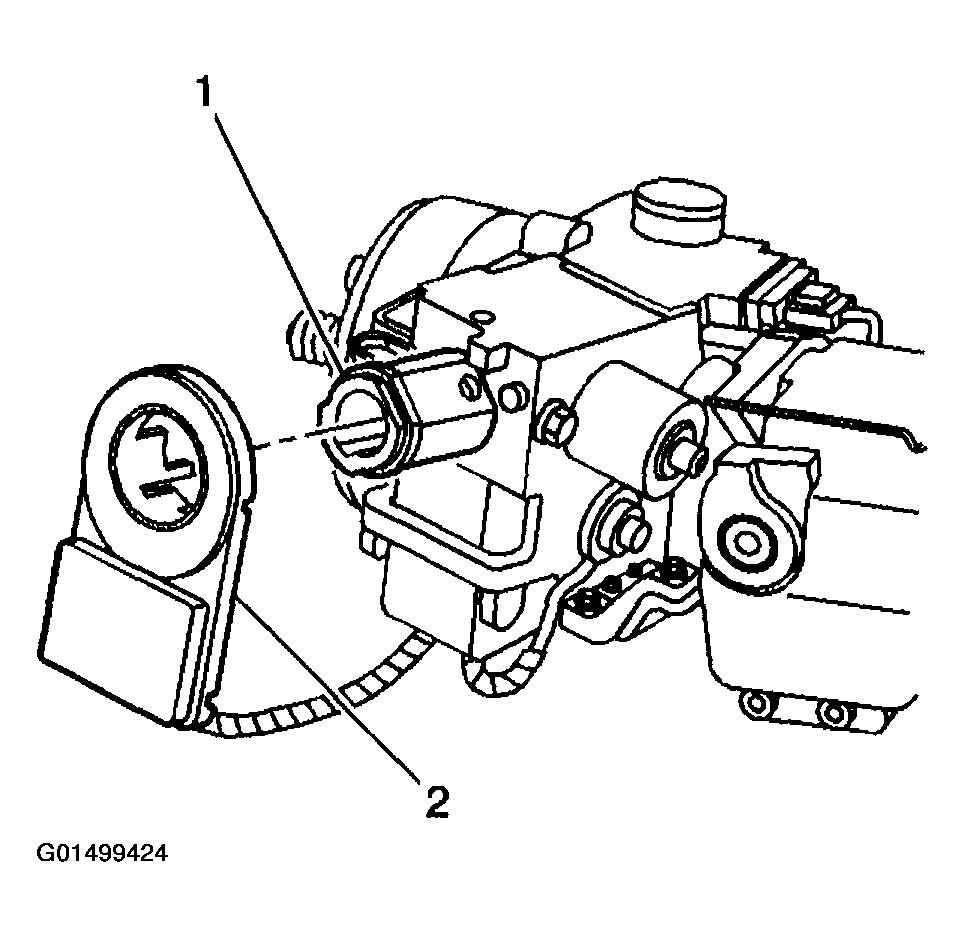

- Push the theft deterrent module (2), onto the lock cylinder housing (1).
- Install the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT
.
- Enable the SIR System. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM
.
Courtesy of GENERAL MOTORS CORP.
