Lock Cylinder Switch Connector End View - Endgate
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Lock Cylinder Switch Connector End View - Endgate

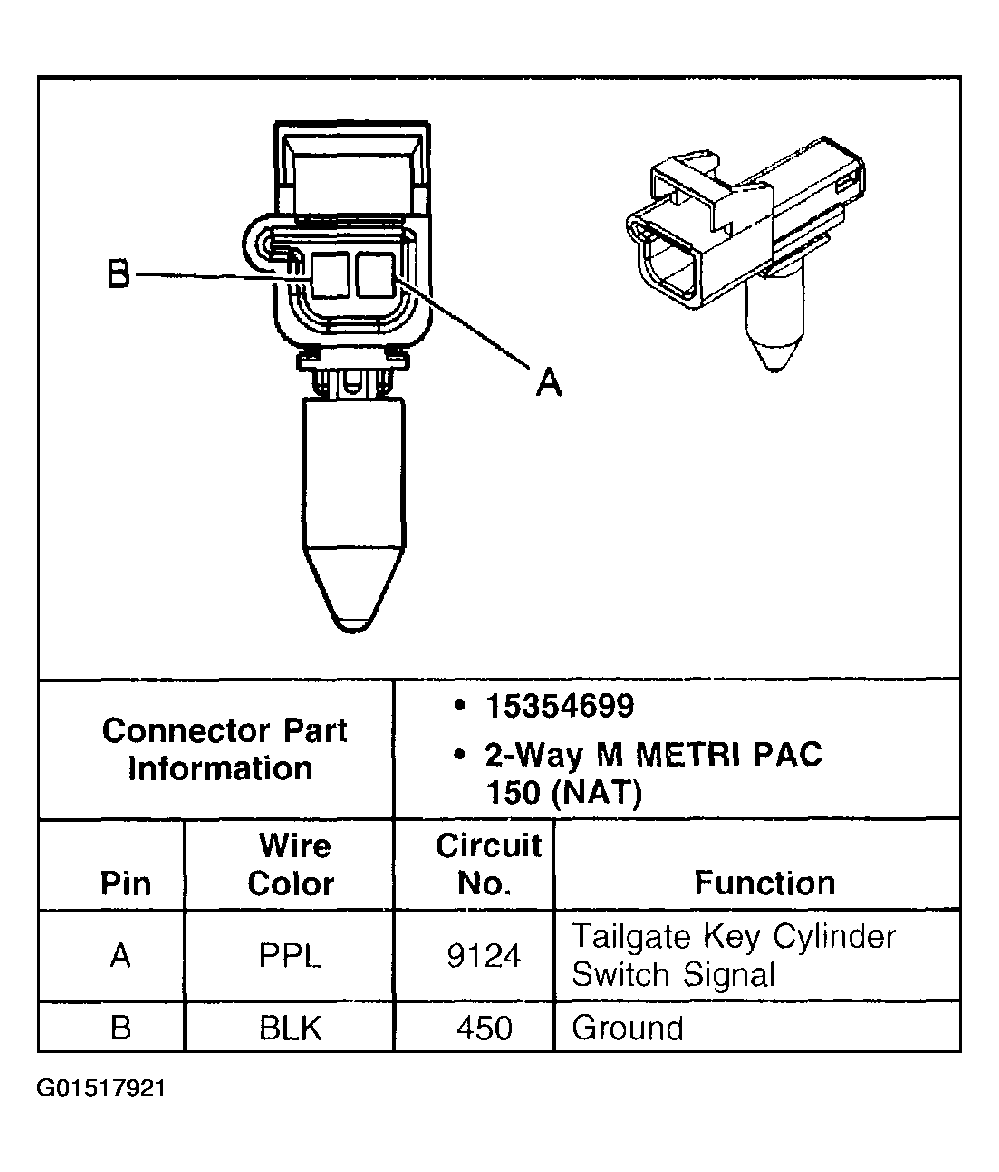

Fig 1: Lock Cylinder Switch - Endgate
Courtesy of GENERAL MOTORS CORP.
