Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear compartment lid applique. Refer to COMPARTMENT LID APPLIQUE REPLACEMENT - REAR in Body Rear End.
  2. Rotate the license lamp sockets counterclockwise to release from the license lamps on the rear compartment lid applique.
  3. Remove the license lamp bulbs from the sockets.

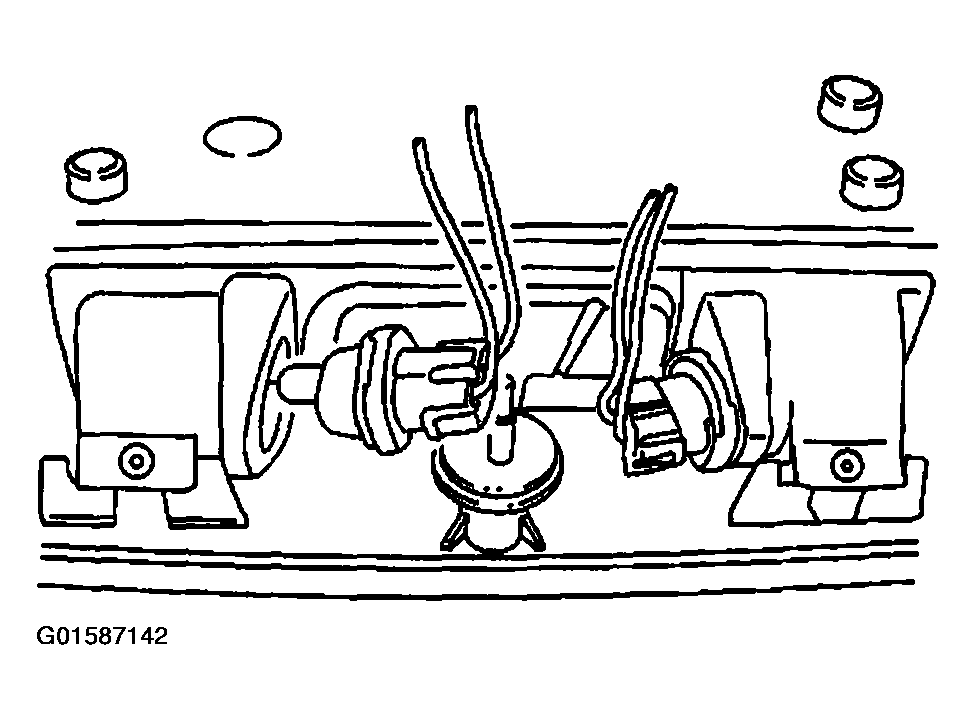

    Fig 1: Removing License Lamp Bulbs From Sockets
    G01587142Courtesy of GENERAL MOTORS CORP.
