Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the hood. Support the hood with something other than the hood hold-open rod.
  2. Remove the hood hold-open rod from the retainers.

    Pull the bottom of the rod toward you in order to release the rod from the bottom retainer.

  3. Remove the retainers from the radiator support.

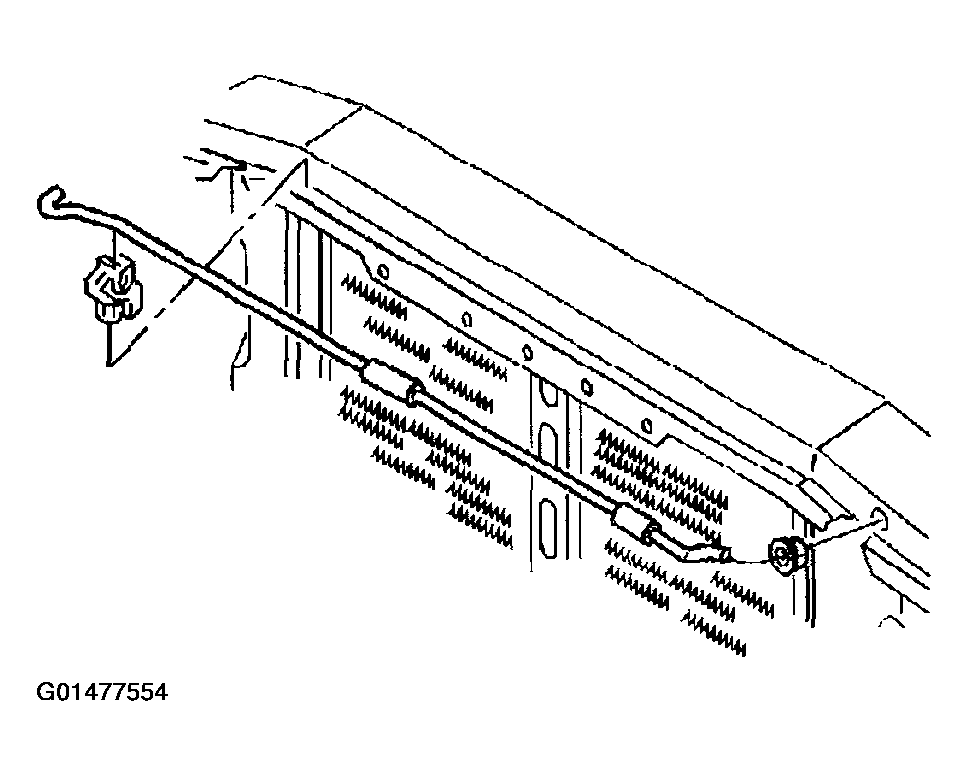

    Fig 1: Removing Hood Hold-Open Rod From Retainers
    G01477554Courtesy of GENERAL MOTORS CORP.
