Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the courtesy lamp to the opening in the closeout insulator panel (3).
  2. Push inward on the courtesy lamp in order to engage the retaining clip.
  3. Connect the electrical connector (1) to the courtesy lamp.

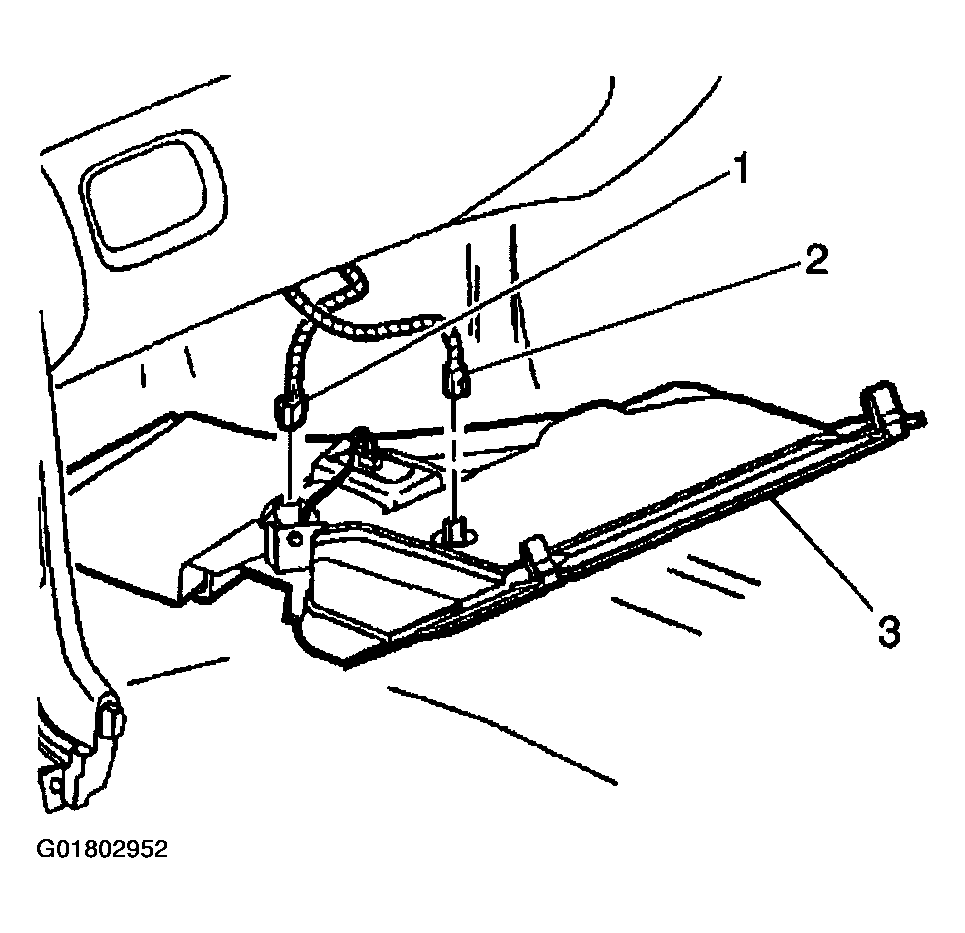

    Fig 1: Installing Right Instrument Panel Courtesy Lamp
    G01802952Courtesy of GENERAL MOTORS CORP.
  4. Position the closeout insulator panel with the instrument panel retainer.
    CAUTION: Refer to FASTENER NOTICE .
  5. Install the closeout insulator panel fasteners (1) in order to secure the panel to the retainer.

    Tighten

    Tighten the fasteners to 2 N.m (18 lb in).

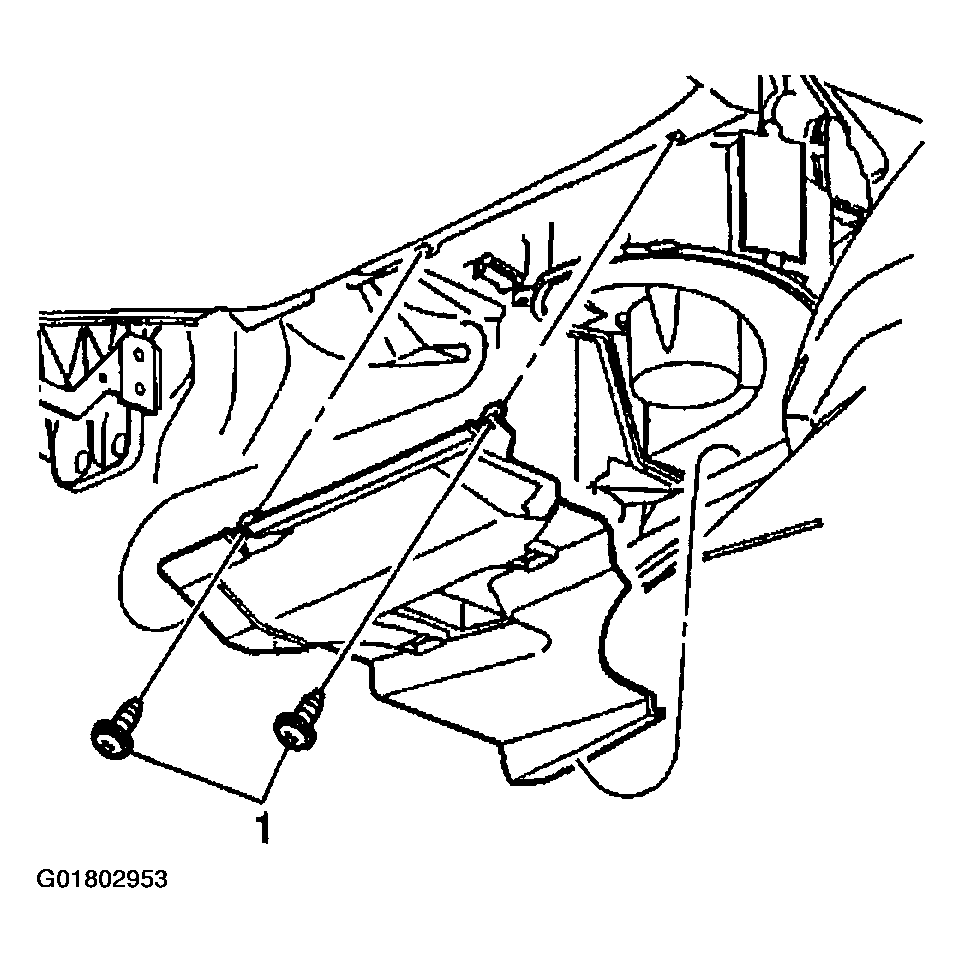

    Fig 2: Installing Right Closeout Insulator Panel Fasteners
    G01802953Courtesy of GENERAL MOTORS CORP.
