Installation Procedure

  1. Install the heat shield to the vehicle with new rivets.

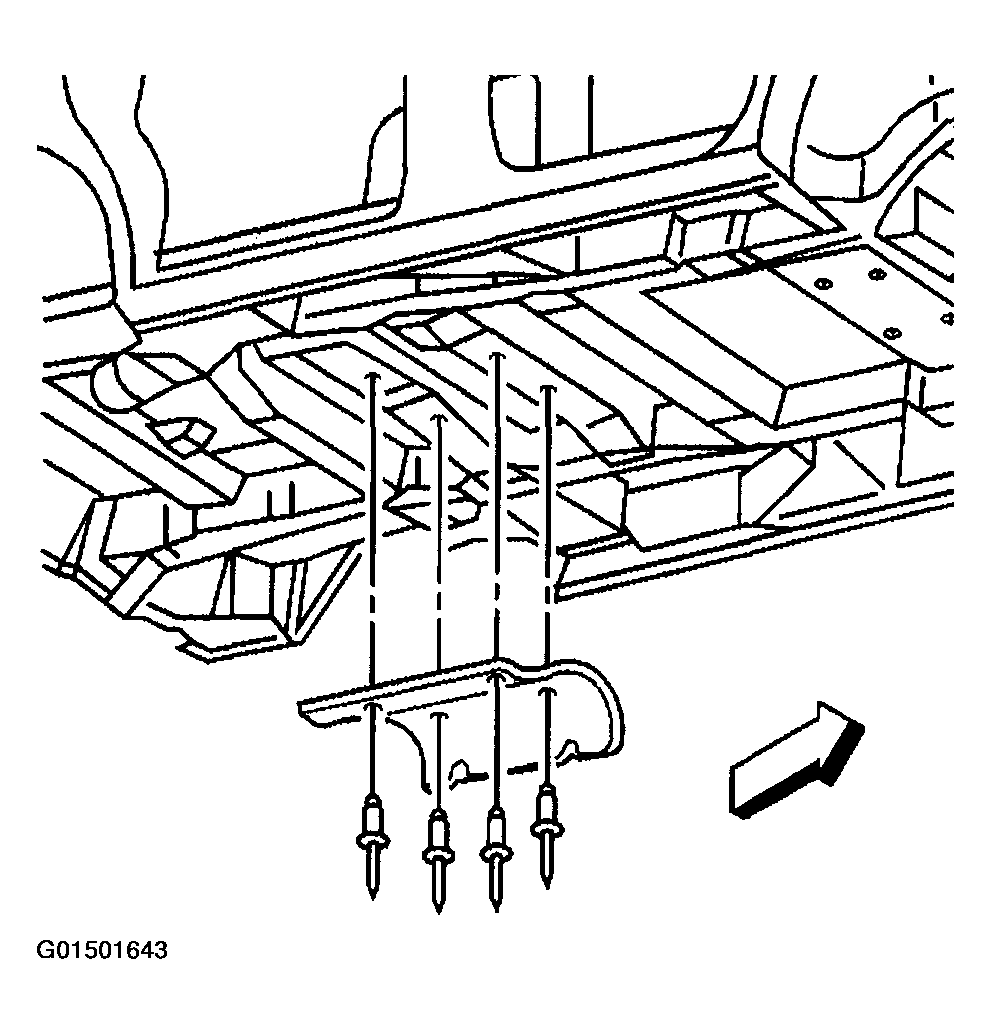

    Fig 1: Installing Heat Shield To Vehicle
    G01501643Courtesy of GENERAL MOTORS CORP.
  2. Connect the muffler to the catalytic converter. Refer to MUFFLER REPLACEMENT  .
  3. Lower the vehicle.
    Fig 2: Connecting Muffler To Catalytic Converter
    G01501644Courtesy of GENERAL MOTORS CORP.
