Input Speed Sensor Connector End View - Wiring Harness Side

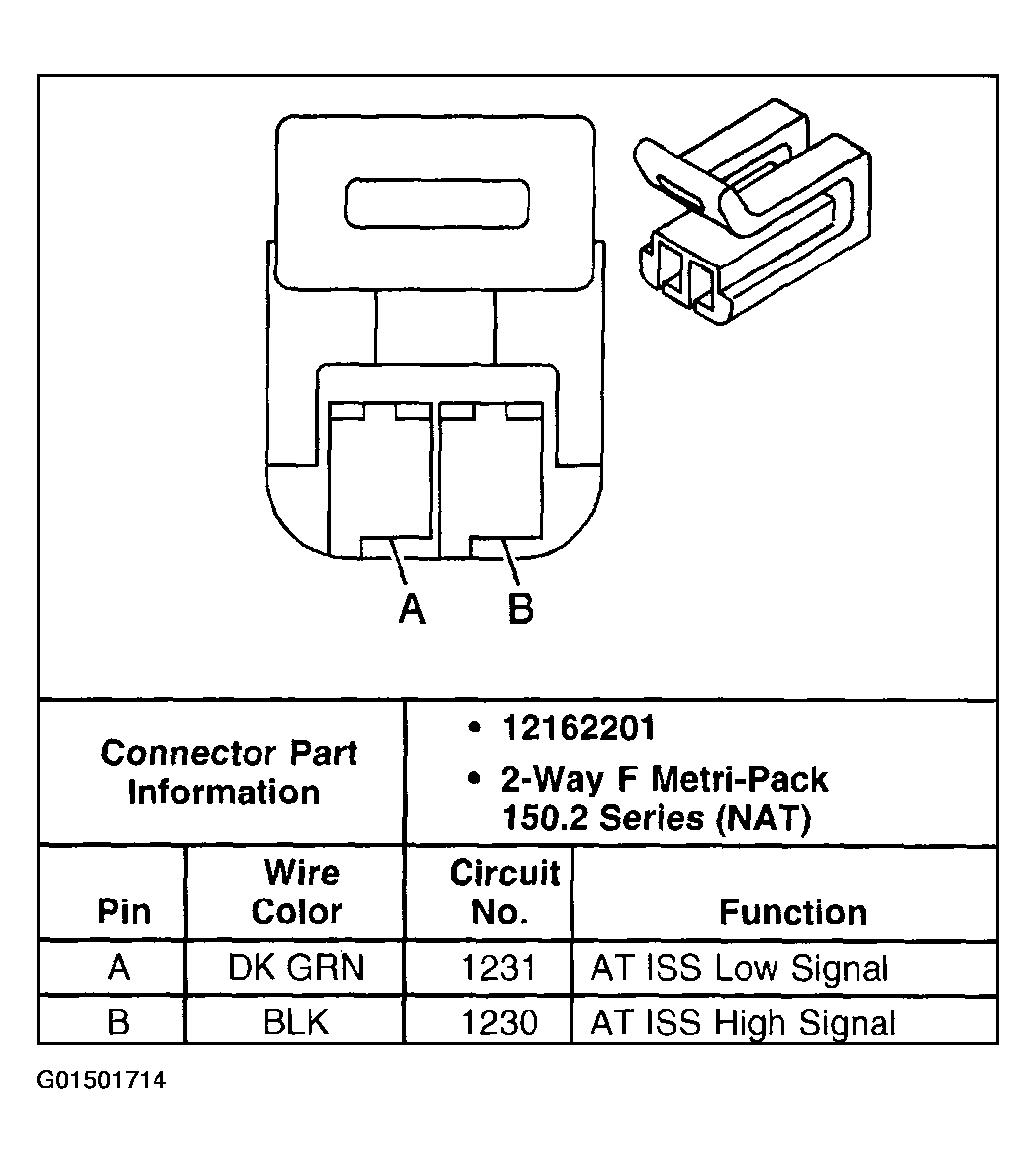

Fig 1: Input Speed Sensor Connector - Wiring Harness Side
Courtesy of GENERAL MOTORS CORP.
