Removal Procedure

  1. Disconnect the negative battery cable.
  2. Remove the front floor console. Refer to CONSOLE REPLACEMENT -- FRONT FLOOR (AZTEK) or CONSOLE REPLACEMENT -- FRONT FLOOR (RENDEZVOUS) .

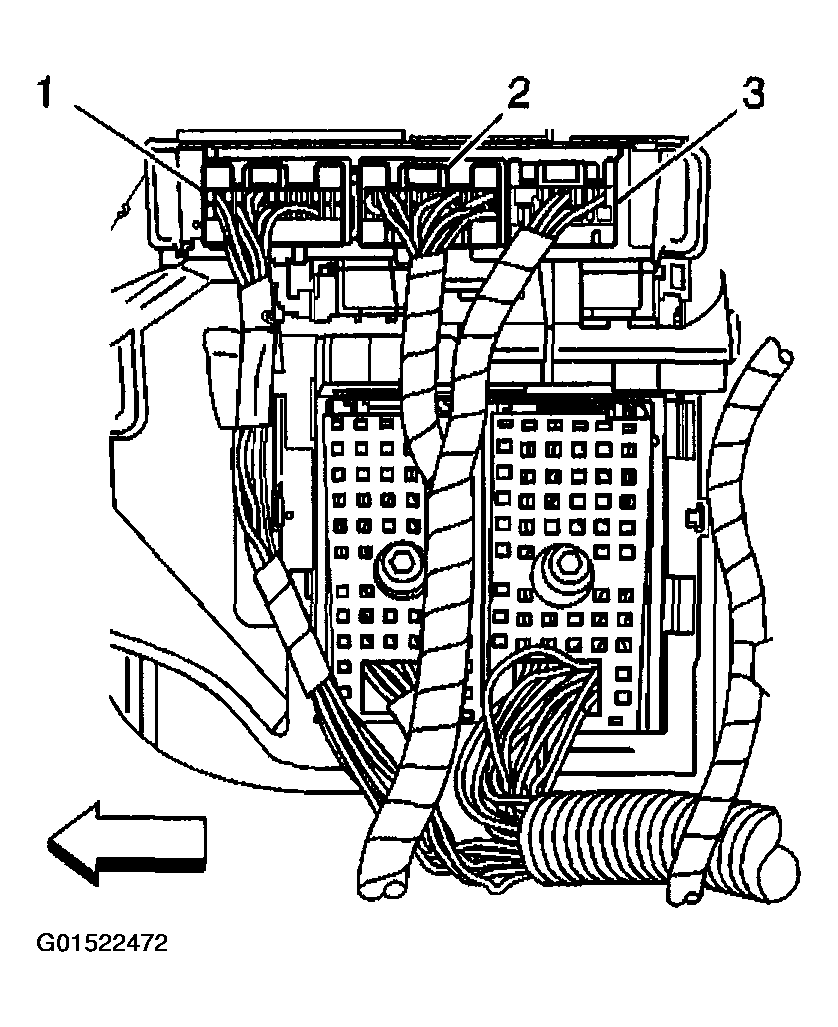

  3. Disconnect the body control module (BCM) electrical connectors (1, 2, 3).
    Fig 1: Removing Procedure Junction Block
    G01522472Courtesy of GENERAL MOTORS CORP.

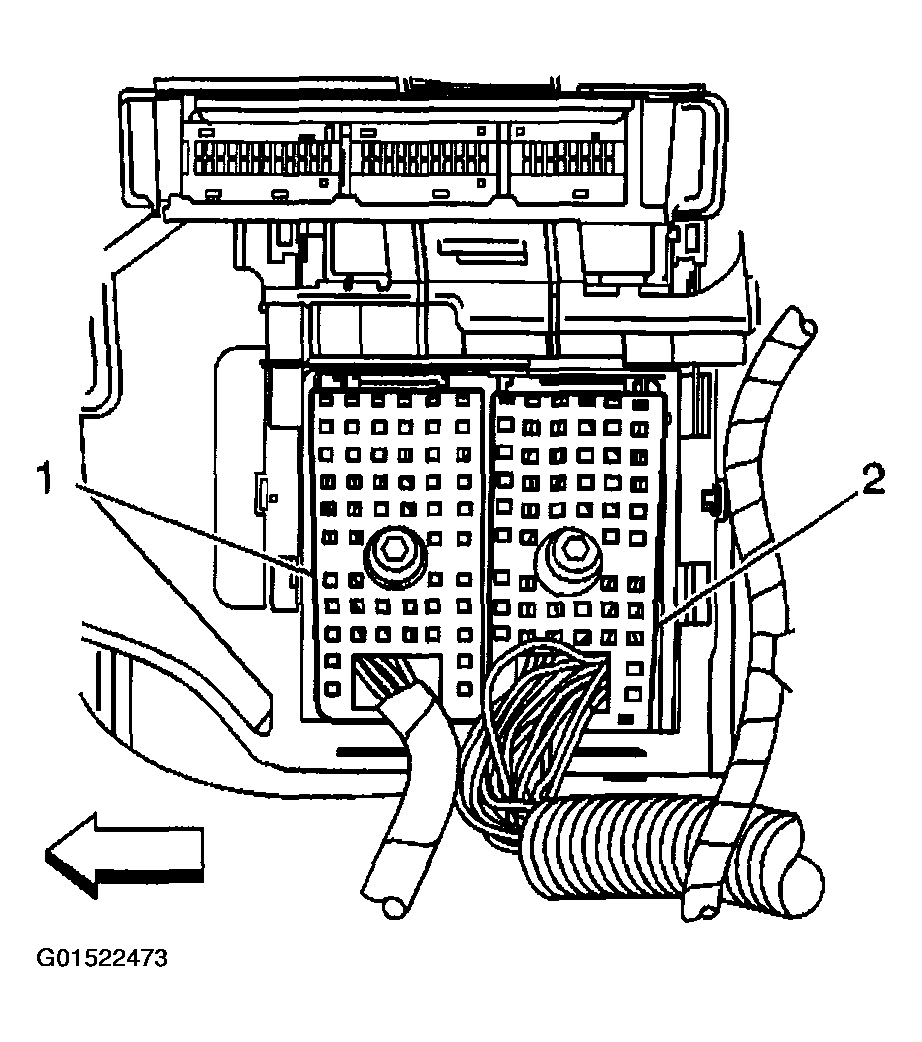

  4. Disconnect the console accessory wiring junction block electrical connectors (1, 2).
    Fig 2: Disconnecting Junction Block Connector
    G01522473Courtesy of GENERAL MOTORS CORP.

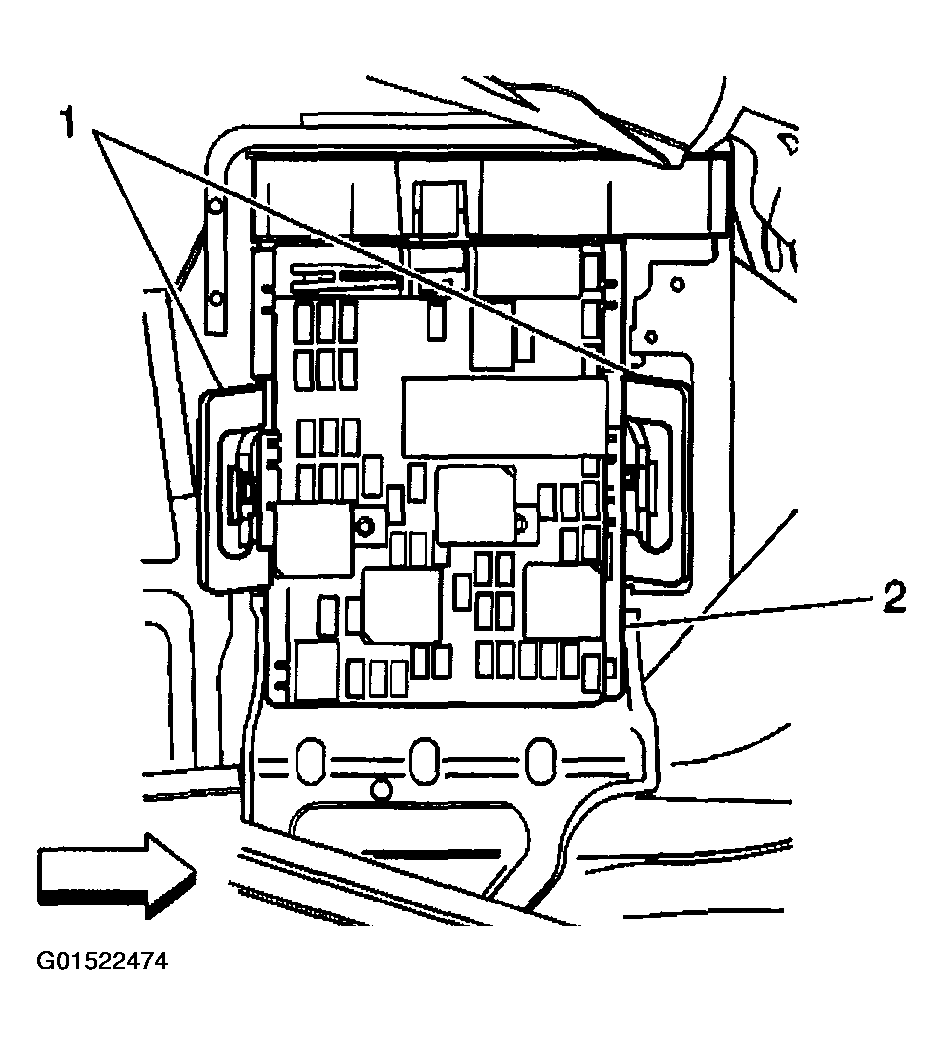

  5. Release the console accessory wiring junction block retainers (1).
  6. Remove the console accessory wiring junction block (2) out of the console accessory wiring junction block bracket.
  7. Remove the BCM. Refer to BODY CONTROL MODULE REPLACEMENT .
    Fig 3: Removing Junction Block Bracket
    G01522474Courtesy of GENERAL MOTORS CORP.
