Removal Procedure

  1. Remove the battery. Refer to BATTERY REPLACEMENT  .
  2. Remove the battery tray bolts.
  3. Remove the battery tray.

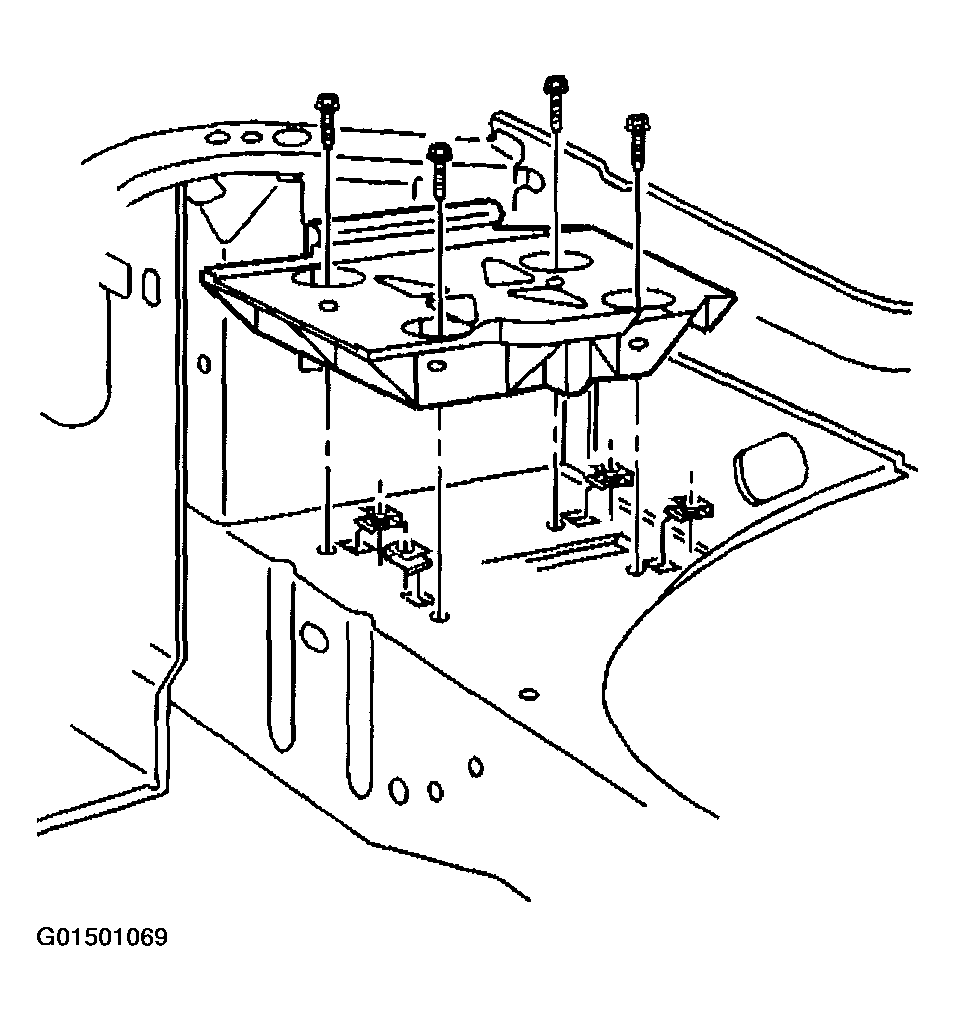

    Fig 1: Removing Battery Tray Bolts And Tray
    G01501069Courtesy of GENERAL MOTORS CORP.
