Removal Procedure

  1. Disconnect the front wheel speed sensor jumper harness to ABS harness connector (8).
  2. Raise and support the vehicle on a suitable hoist.
  3. Remove the harness (4) from the splash shield retaining clip (5).
  4. Remove the harness (4) from the control arm retaining clips (3).
    Fig 1: Removing Front Wheel Speed Sensor Jumper Harness
    G01500354Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the front wheel speed jumper harness connector (2) from the front wheel sensor.
  6. Remove the front wheel speed sensor jumper harness (1).

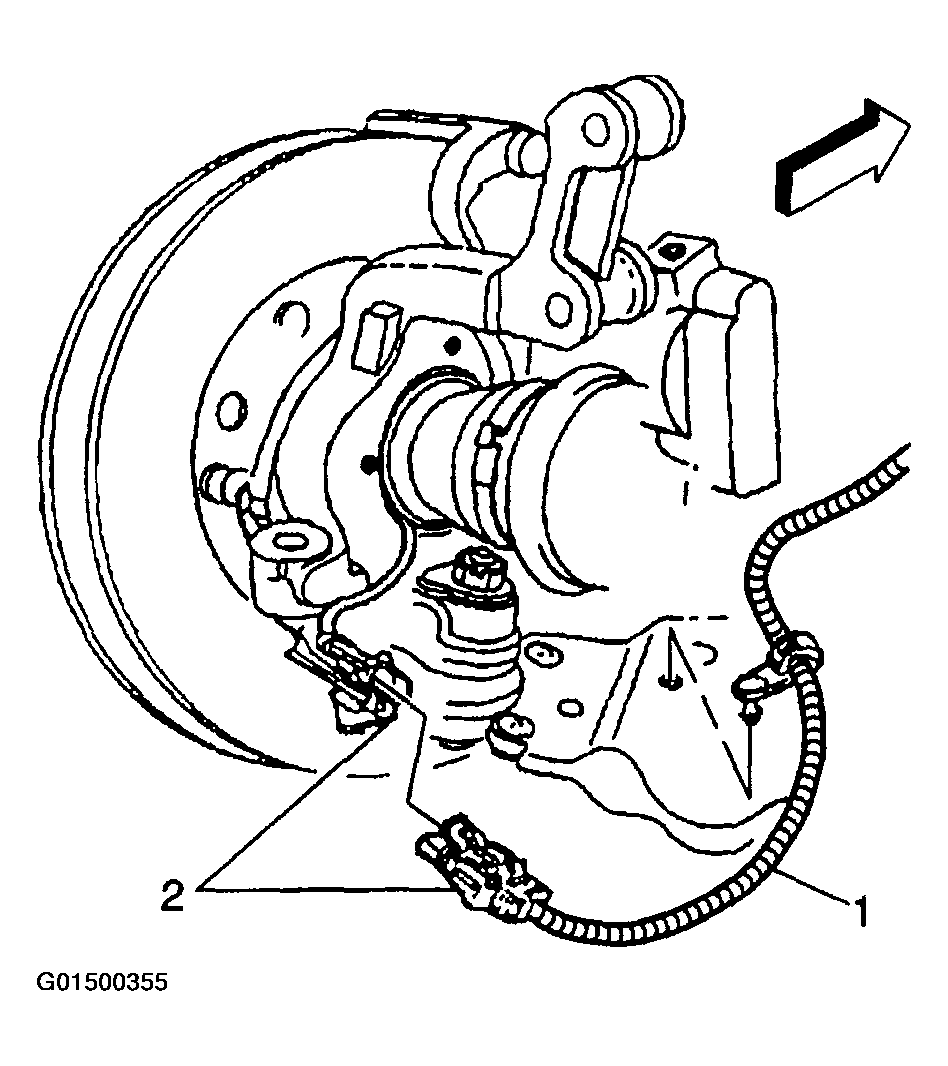

Fig 2: Removing Front Wheel Speed Sensor Jumper Harness From Sensor
G01500355Courtesy of GENERAL MOTORS CORP.
