Removal Procedure

  1. Position the front door window in the full down position.
  2. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (AZTEK)  or TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (RENDEZVOUS)  .
  3. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  4. Remove the outer belt sealing strip. Refer to SEALING STRIP REPLACEMENT - FRONT DOOR WINDOW BELT OUTER  .
  5. Remove the window weatherstrip. Refer to WEATHERSTRIP REPLACEMENT - FRONT DOOR WINDOW  .
  6. Loosen the bolts (1) to the front and rear clevis clamps.

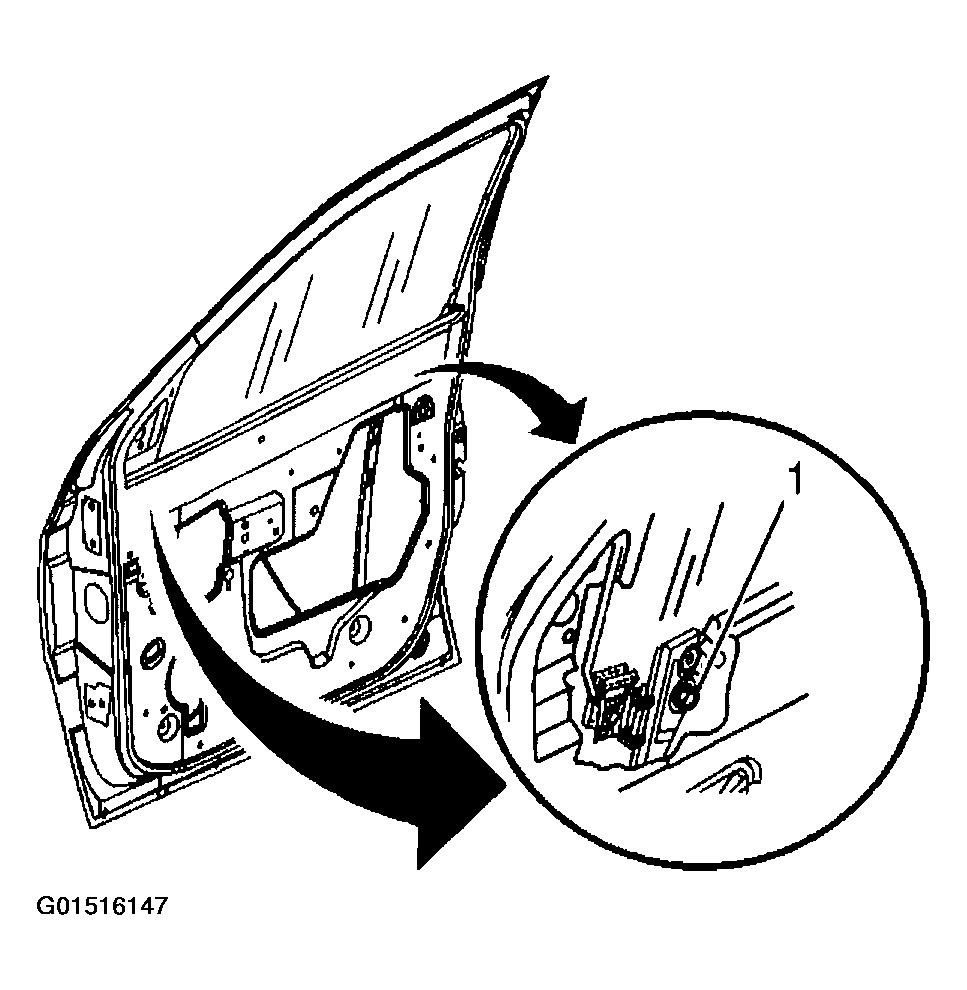

    Fig 1: Removing Front Door Window (1 Of 2)
    G01516147Courtesy of GENERAL MOTORS CORP.
  7. Remove the window from the outside of the front door.

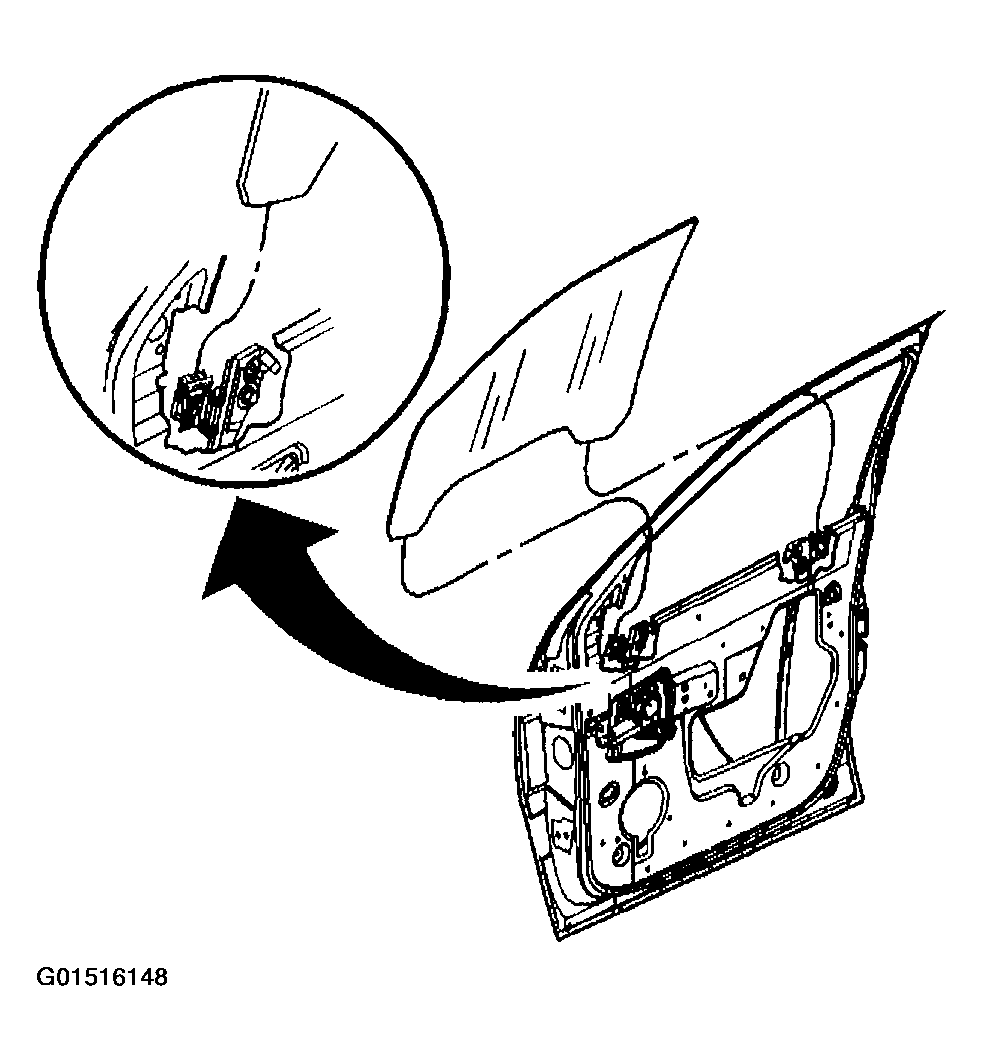

    Fig 2: Removing Front Door Window (2 Of 2)
    G01516148Courtesy of GENERAL MOTORS CORP.
