Installation Procedure

Install the rear seat back pad to the rear seat back frame.

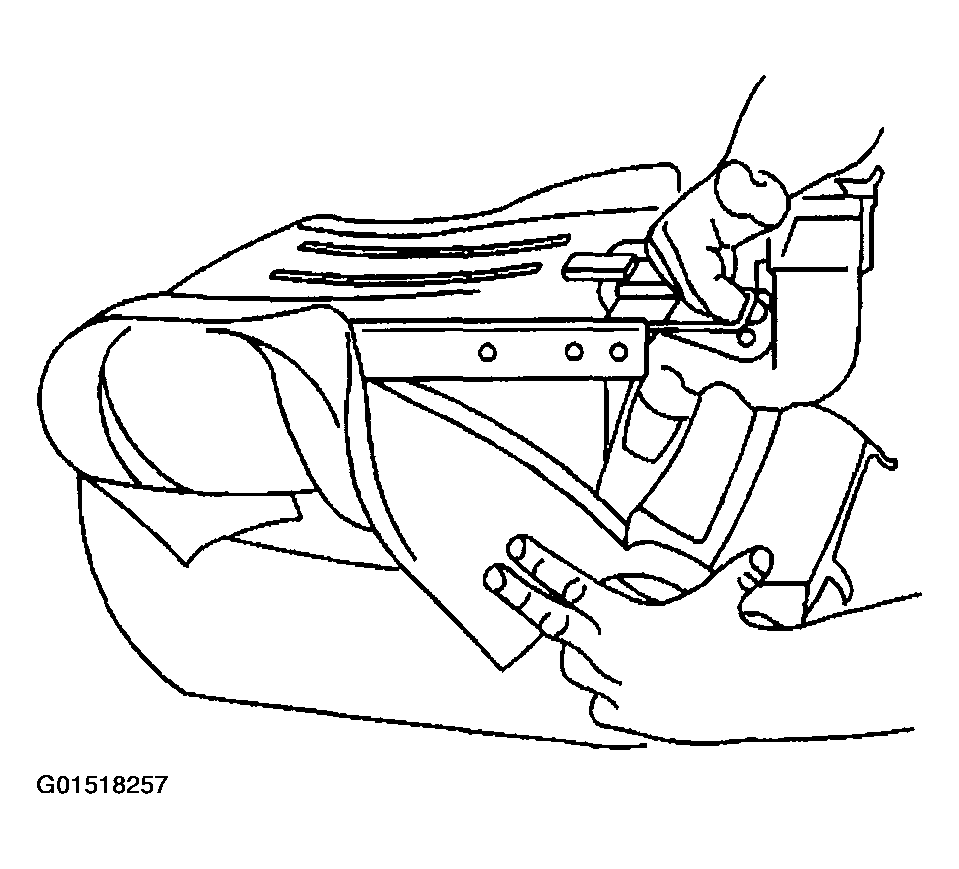

Fig 1: Installing Rear Seat Back Pad To Rear Seat Back Frame
Courtesy of GENERAL MOTORS CORP.
Install the hog rings to the rear seat back pad.
Install the rear seat back cover. Refer to SEAT BACK COVER REPLACEMENT - REAR (BUCKET) or SEAT BACK COVER REPLACEMENT - REAR (SPLIT BENCH) .

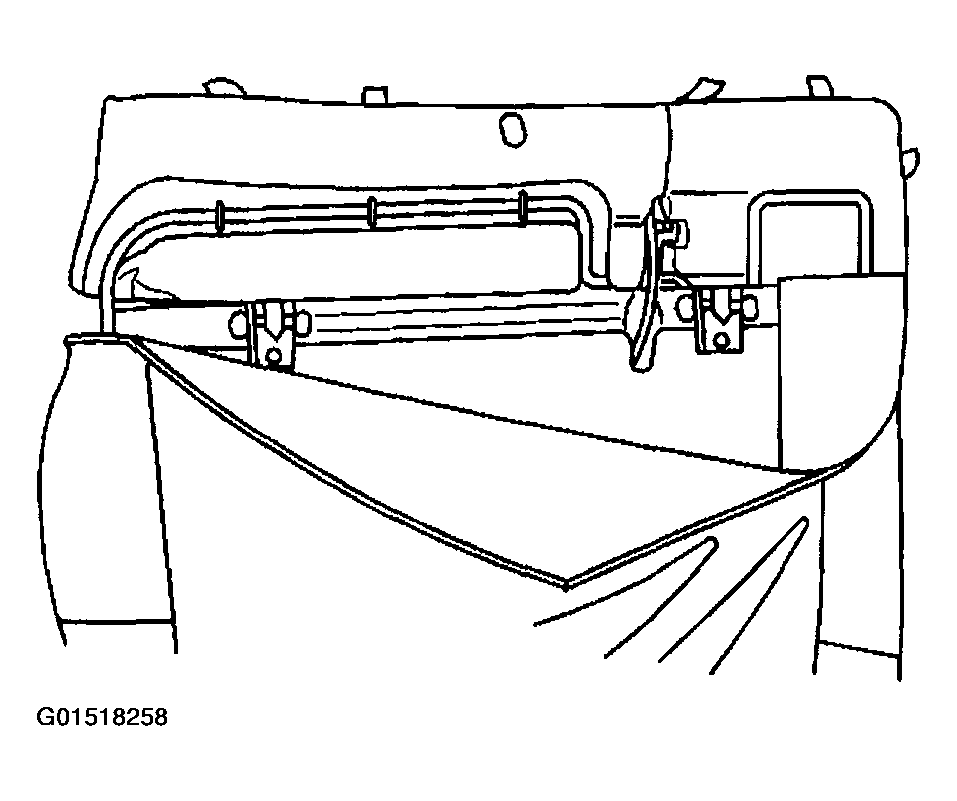

Fig 2: Installing Hog Rings To Rear Seat Back Pad
Courtesy of GENERAL MOTORS CORP.
