On-Vehicle

Specifications

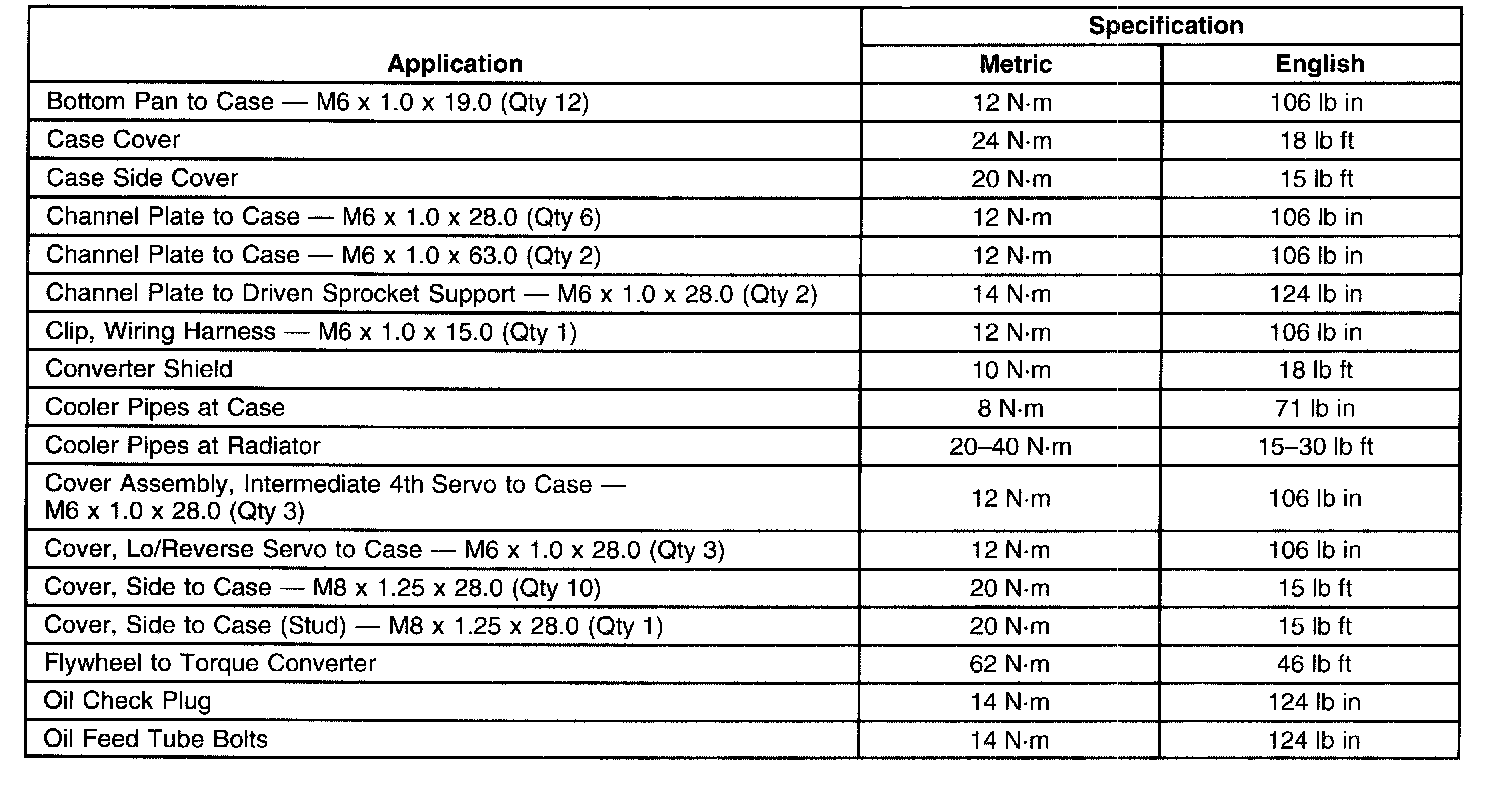

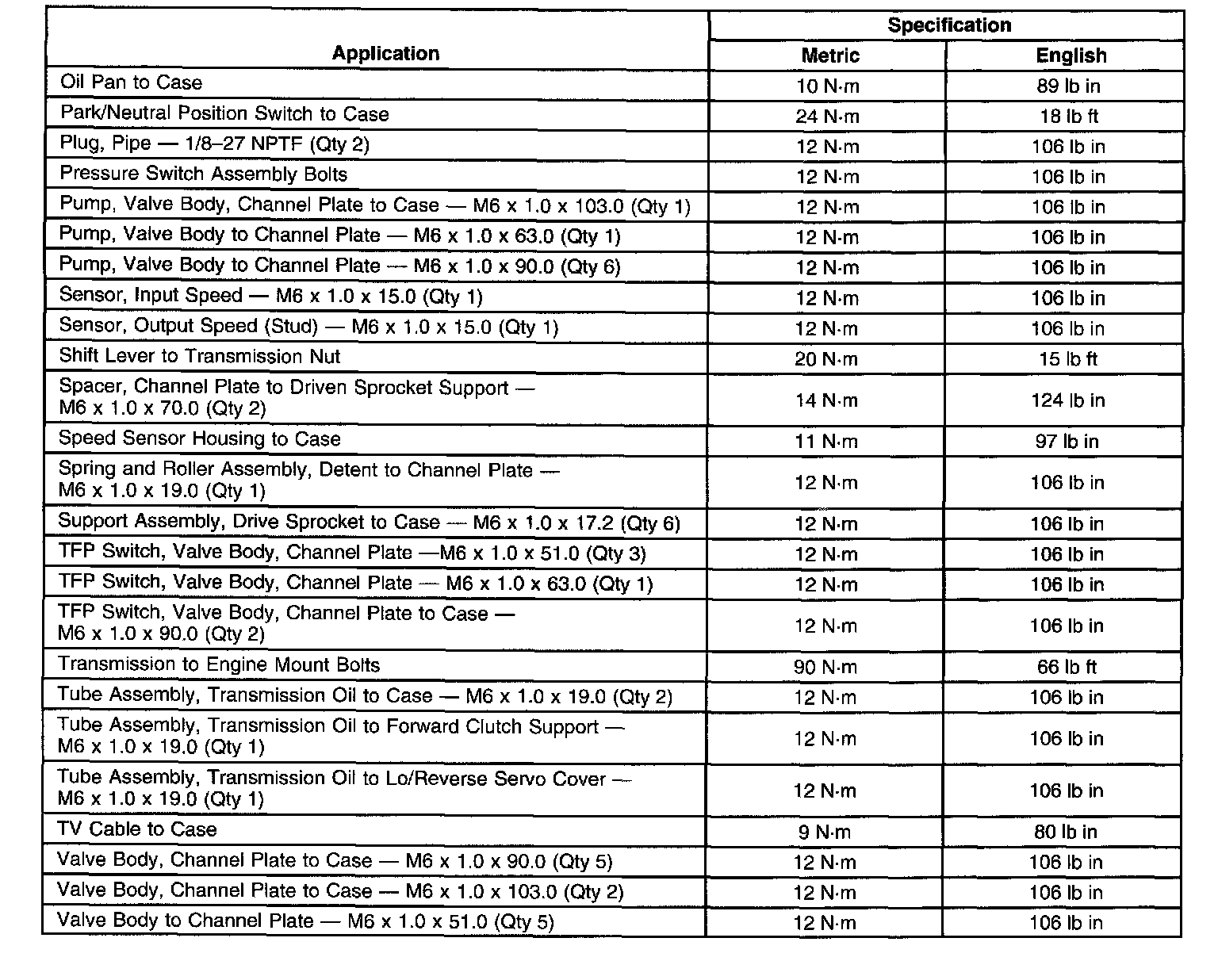

Fastener Tightening Specifications (Unit Repair)

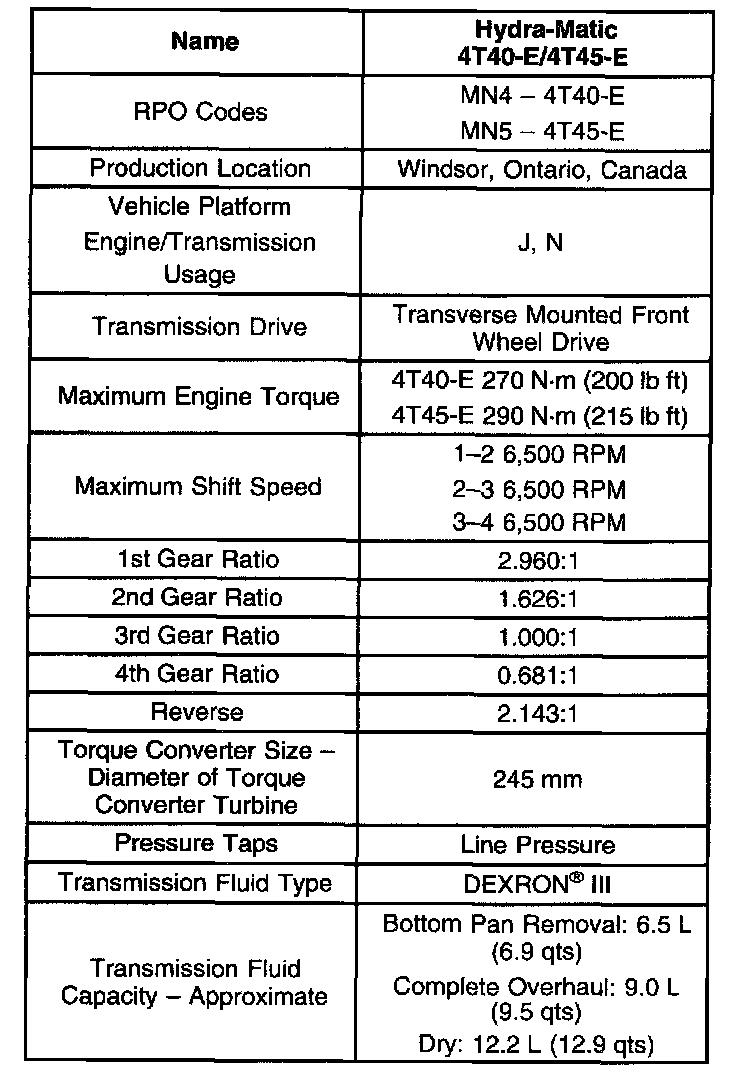

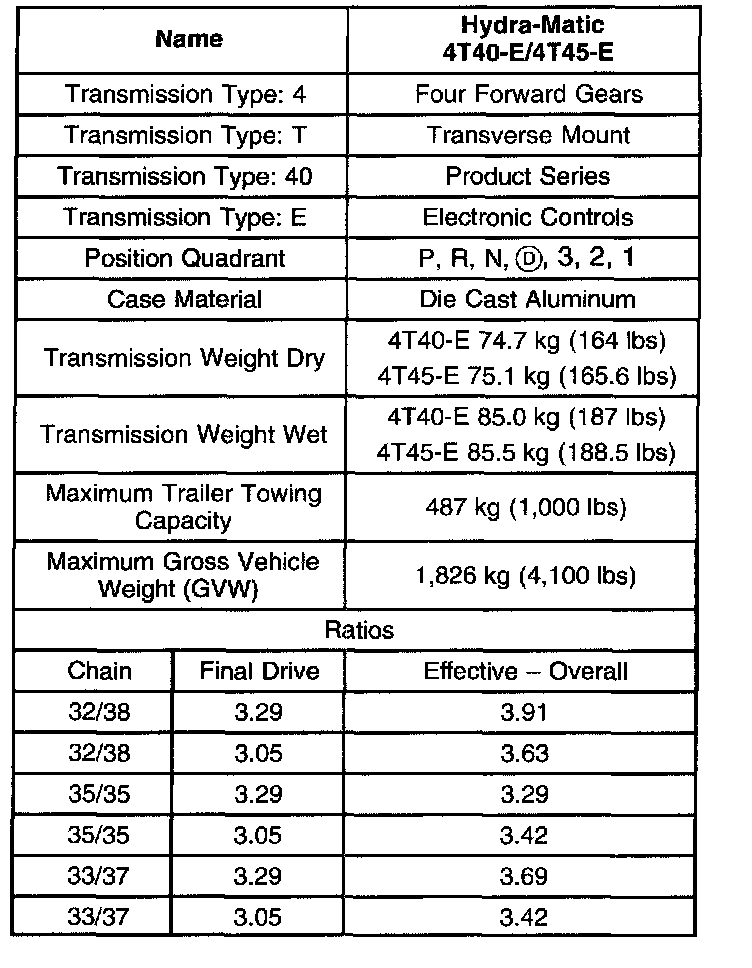

Transmission General Specifications





Range Reference

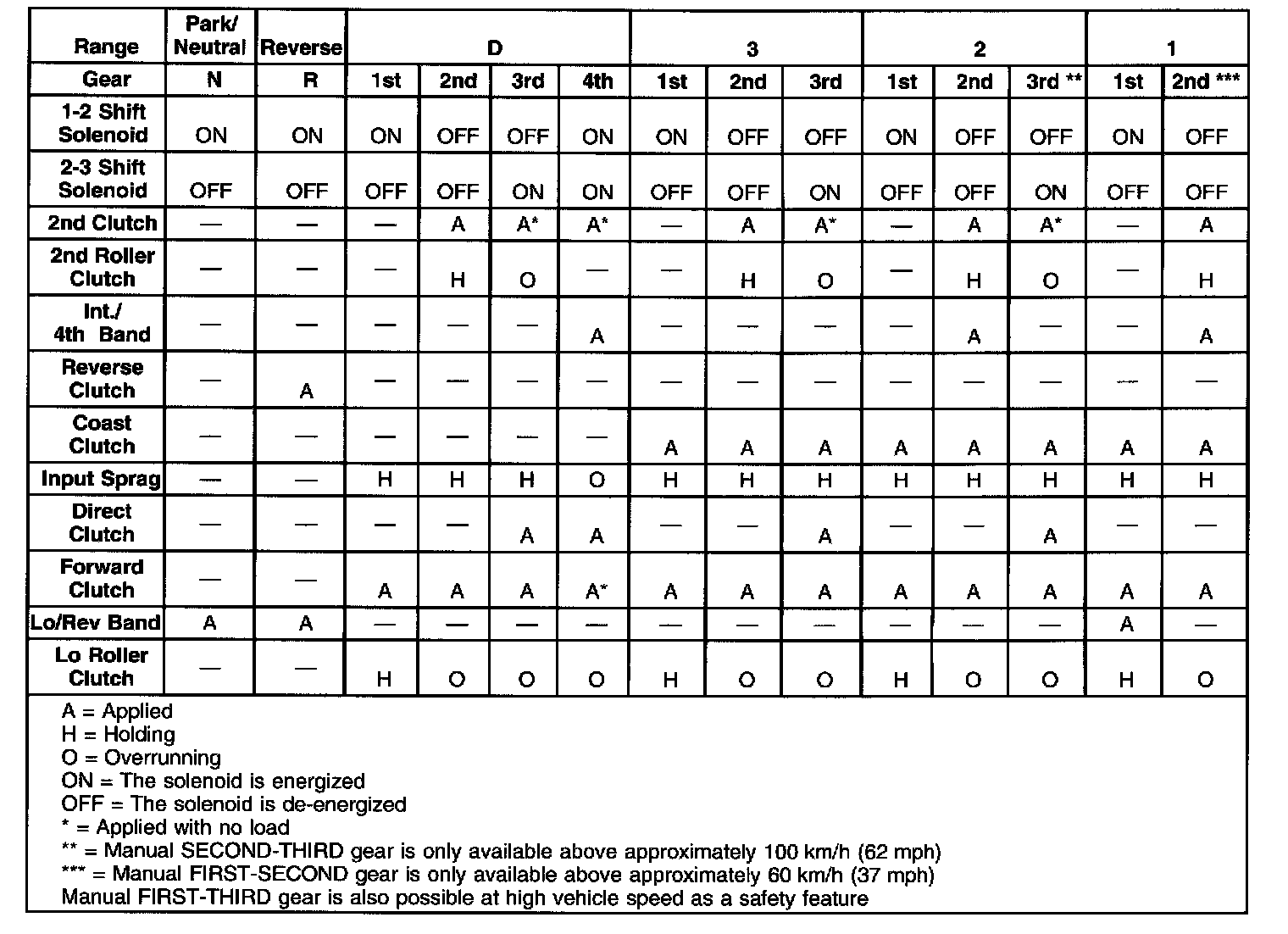

Shift Solenoid Valve State and Gear Ratio





Shift Speed
