Body Control Module (BCM)

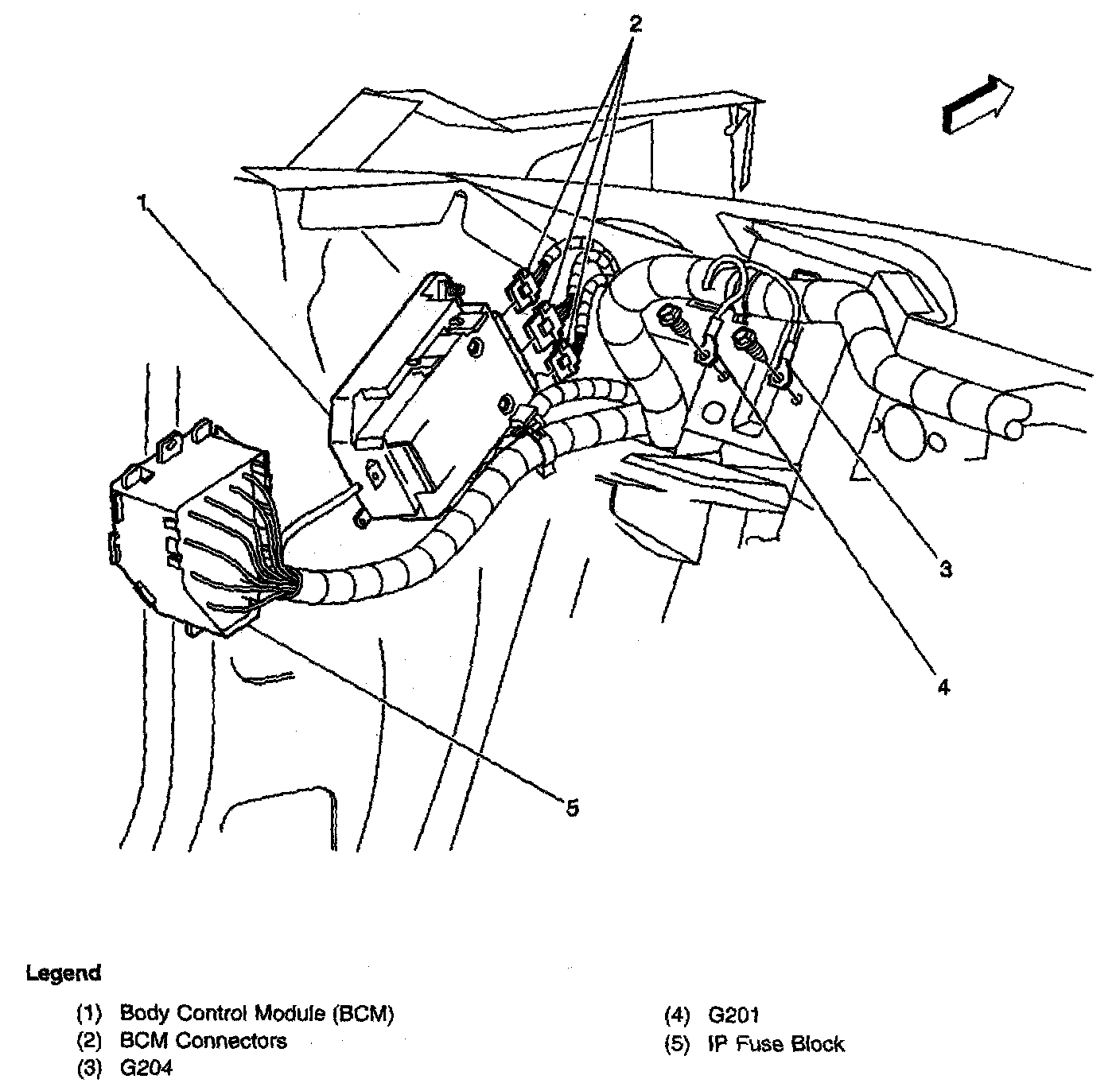

Location View:

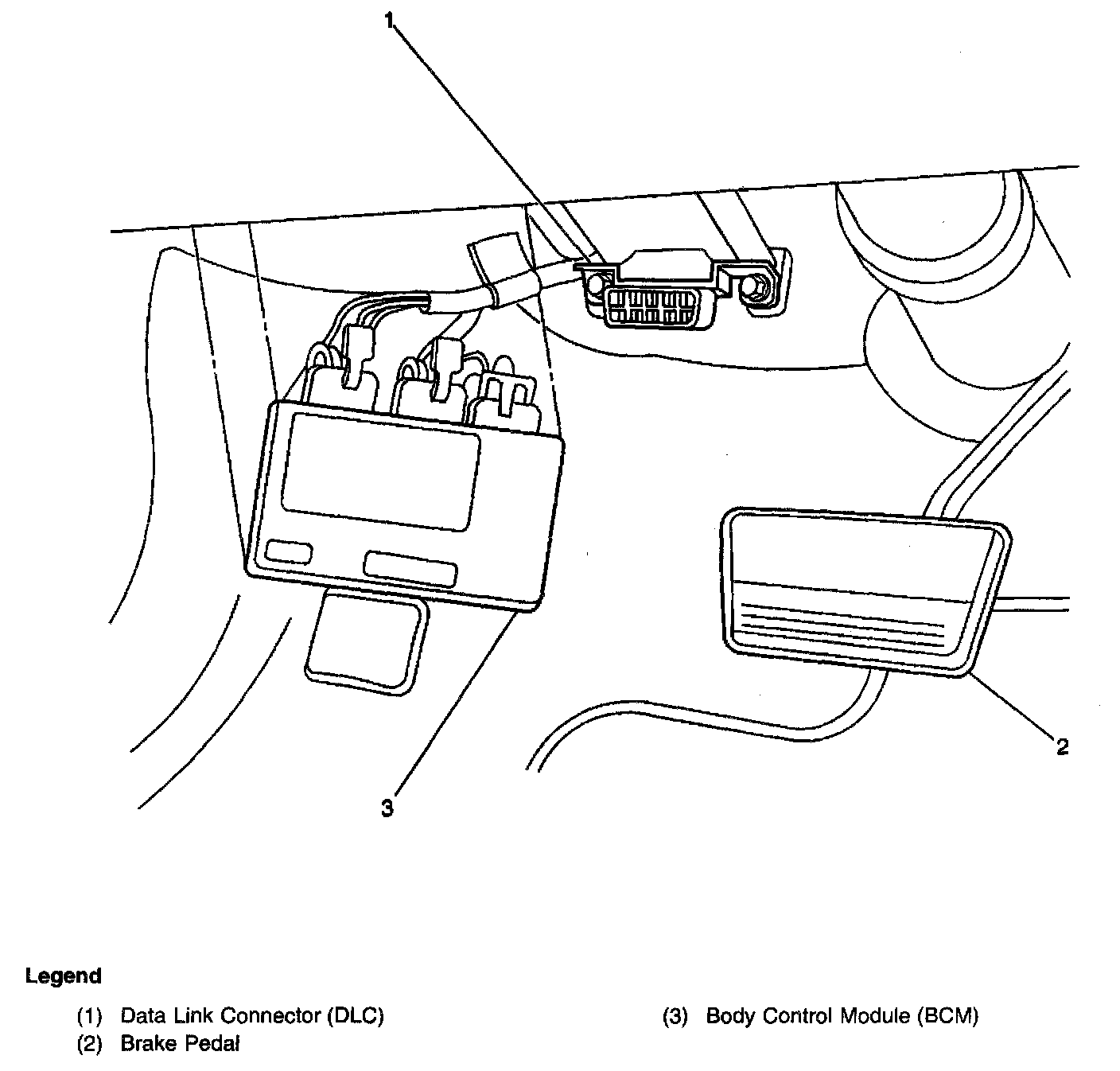

Location View:
Behind the left side of the instrument panel
