Engine Block - Right Side View

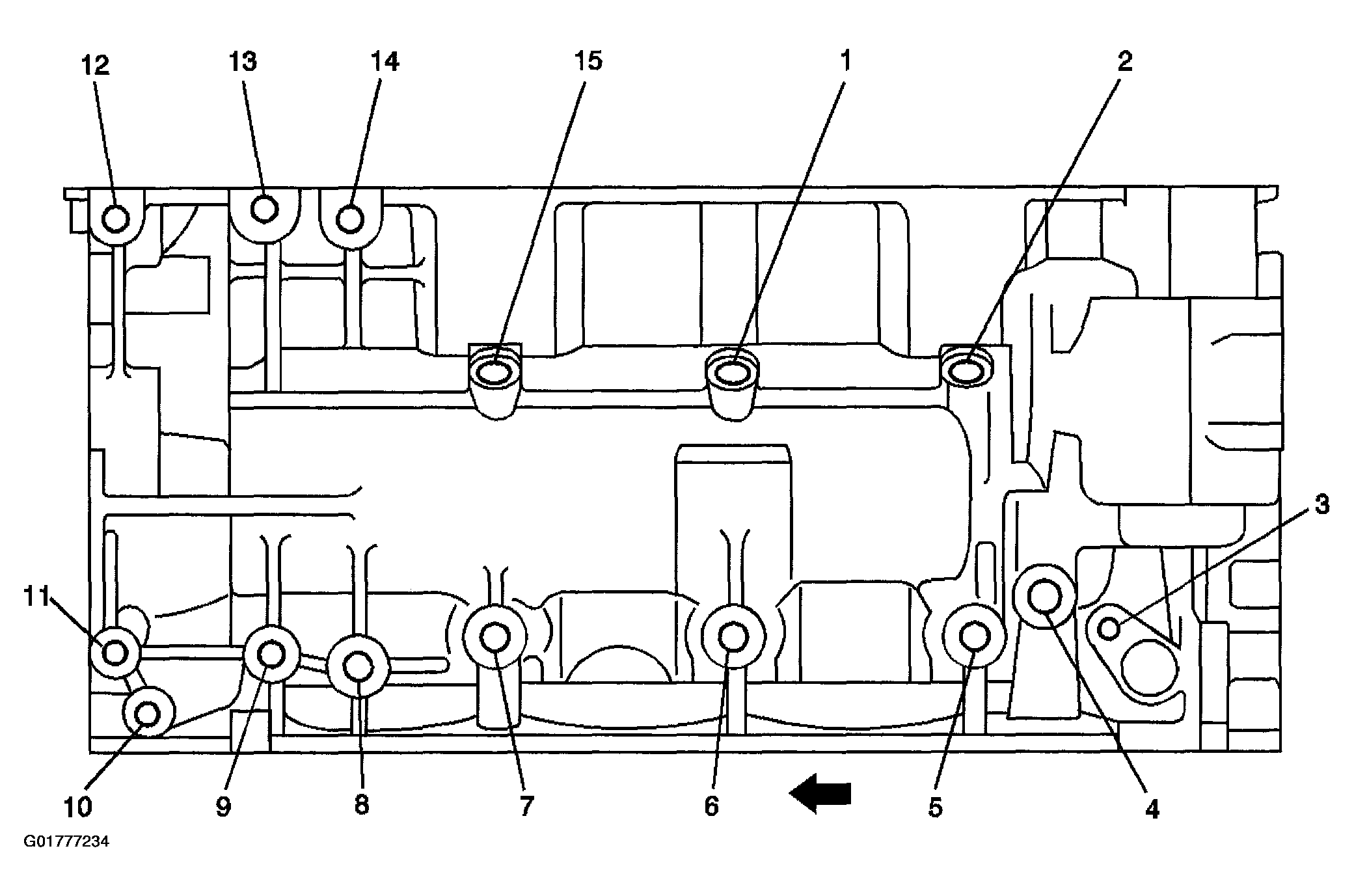

Fig 1: Engine Block - Right Side View (1 Of 3)
G01777234Courtesy of GENERAL MOTORS CORP.

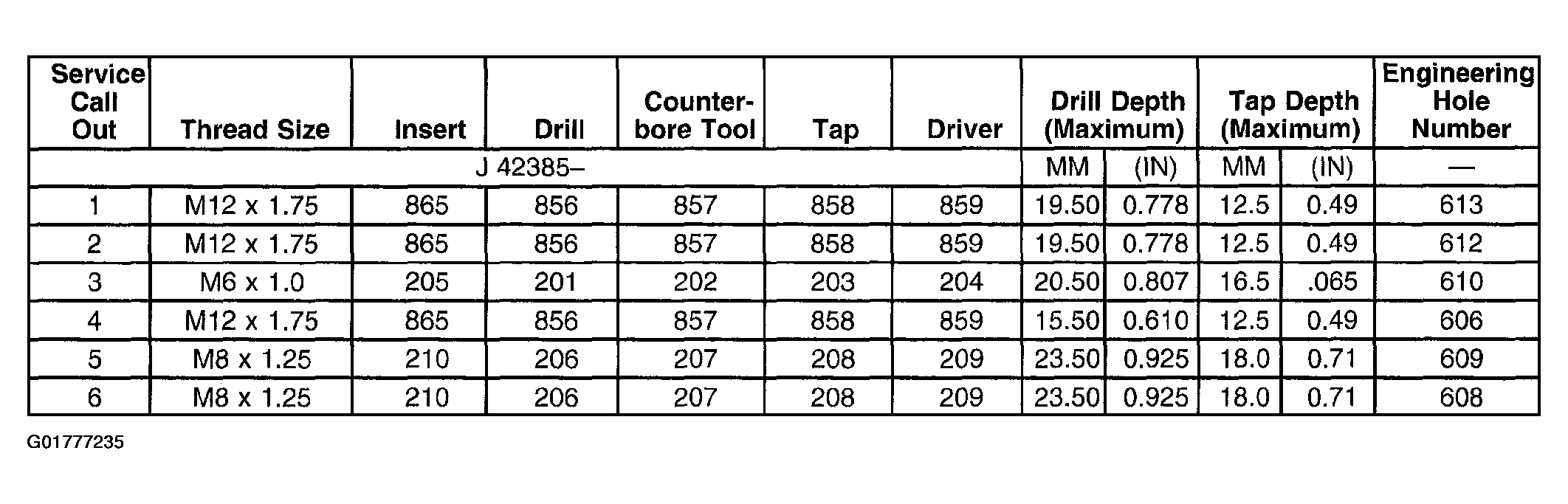

Fig 2: Engine Block - Right Side View (2 Of 3)
G01777235Courtesy of GENERAL MOTORS CORP.

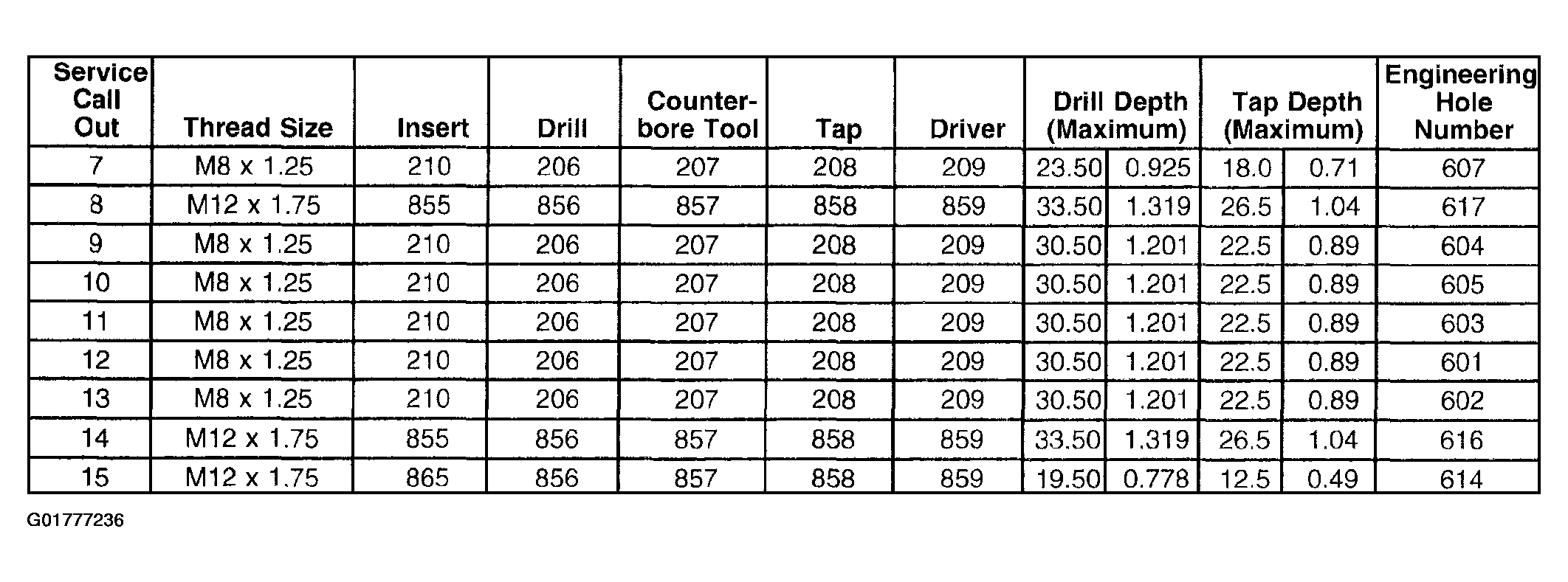

Fig 3: Engine Block - Right Side View (3 Of 3)
G01777236Courtesy of GENERAL MOTORS CORP.
