Automatic Transmission/Transaxle

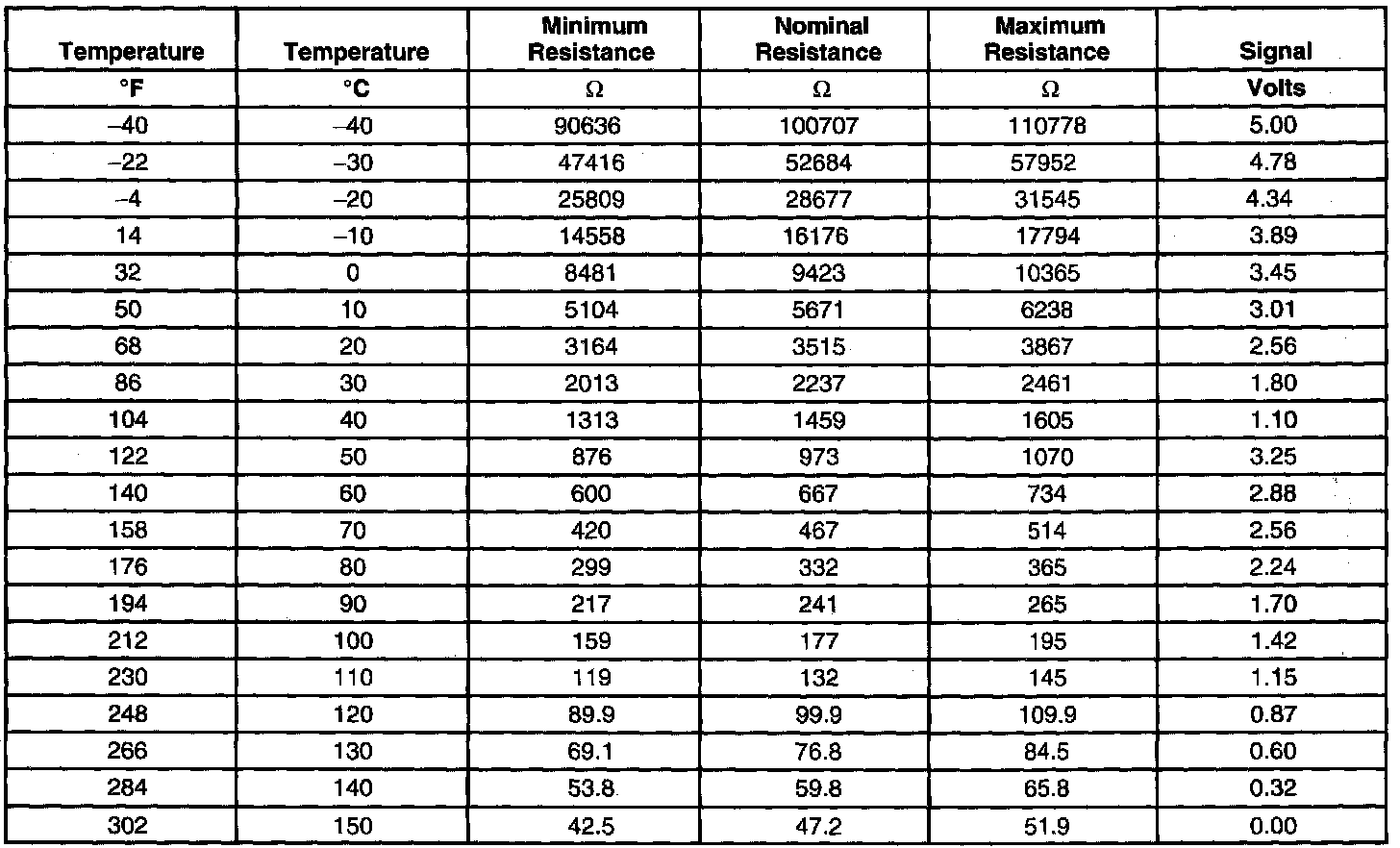

Transmission Fluid Temperature (TFT) Sensor Specifications





Transmission Fluid Pressure (TFP) Manual Valve Position Switch Logic





Tranmission Range Switch Logic

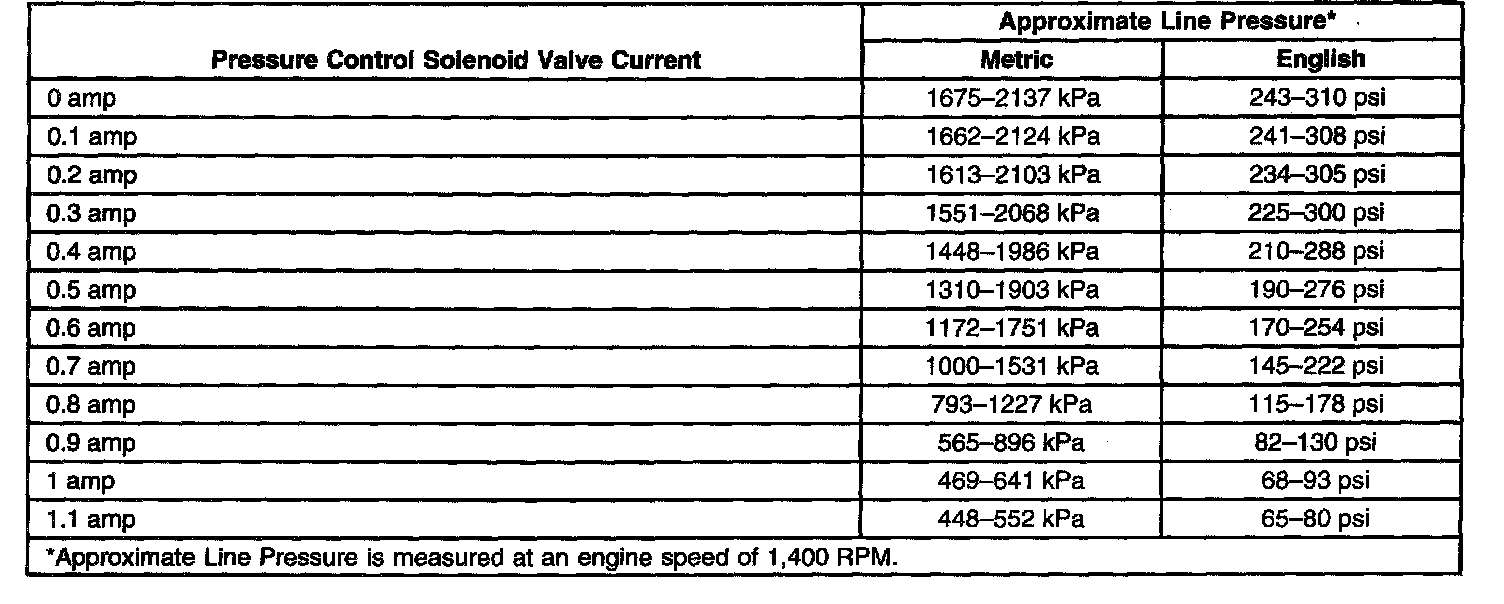

Line Pressure

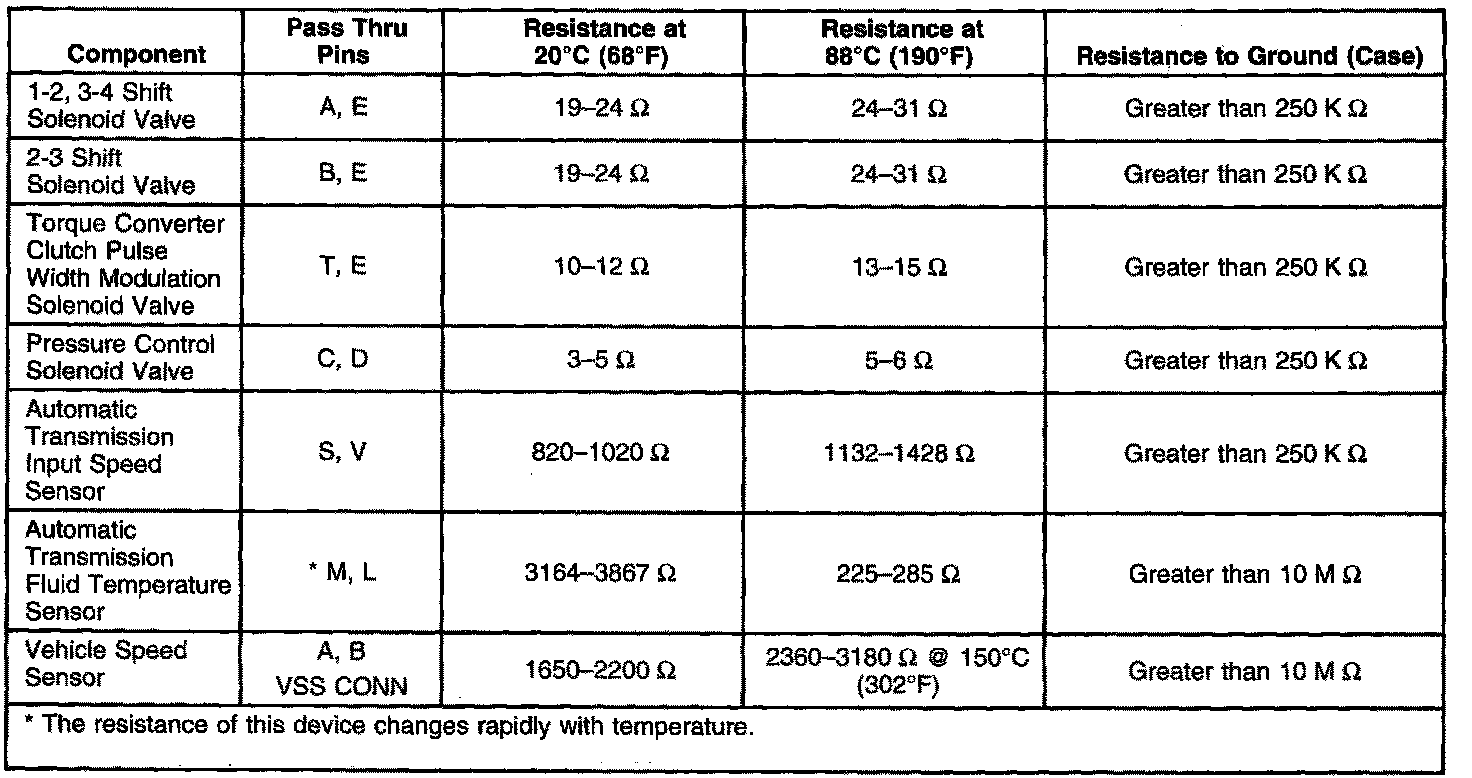

Component Resistance
