Automatic Transmission/Transaxle

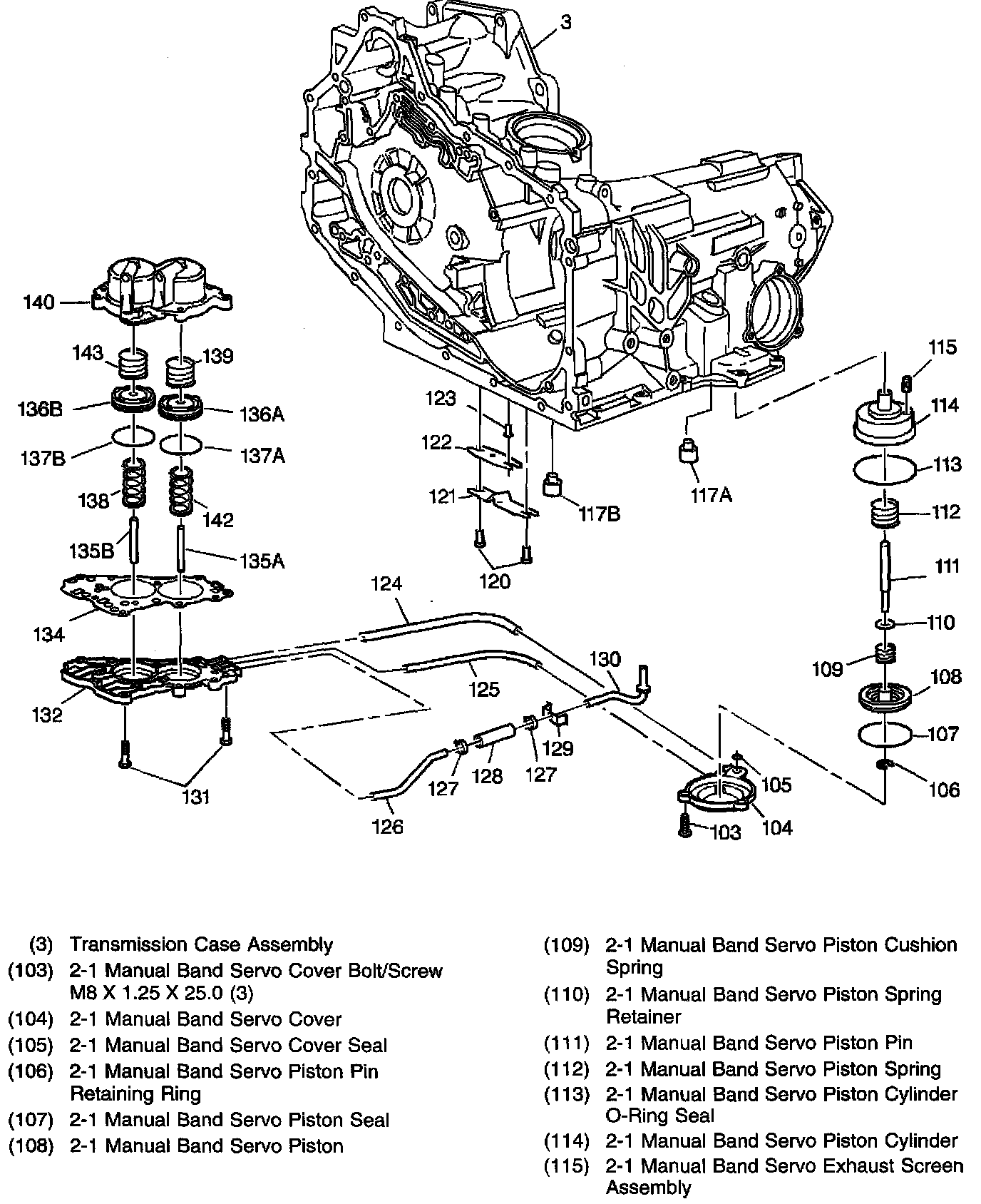

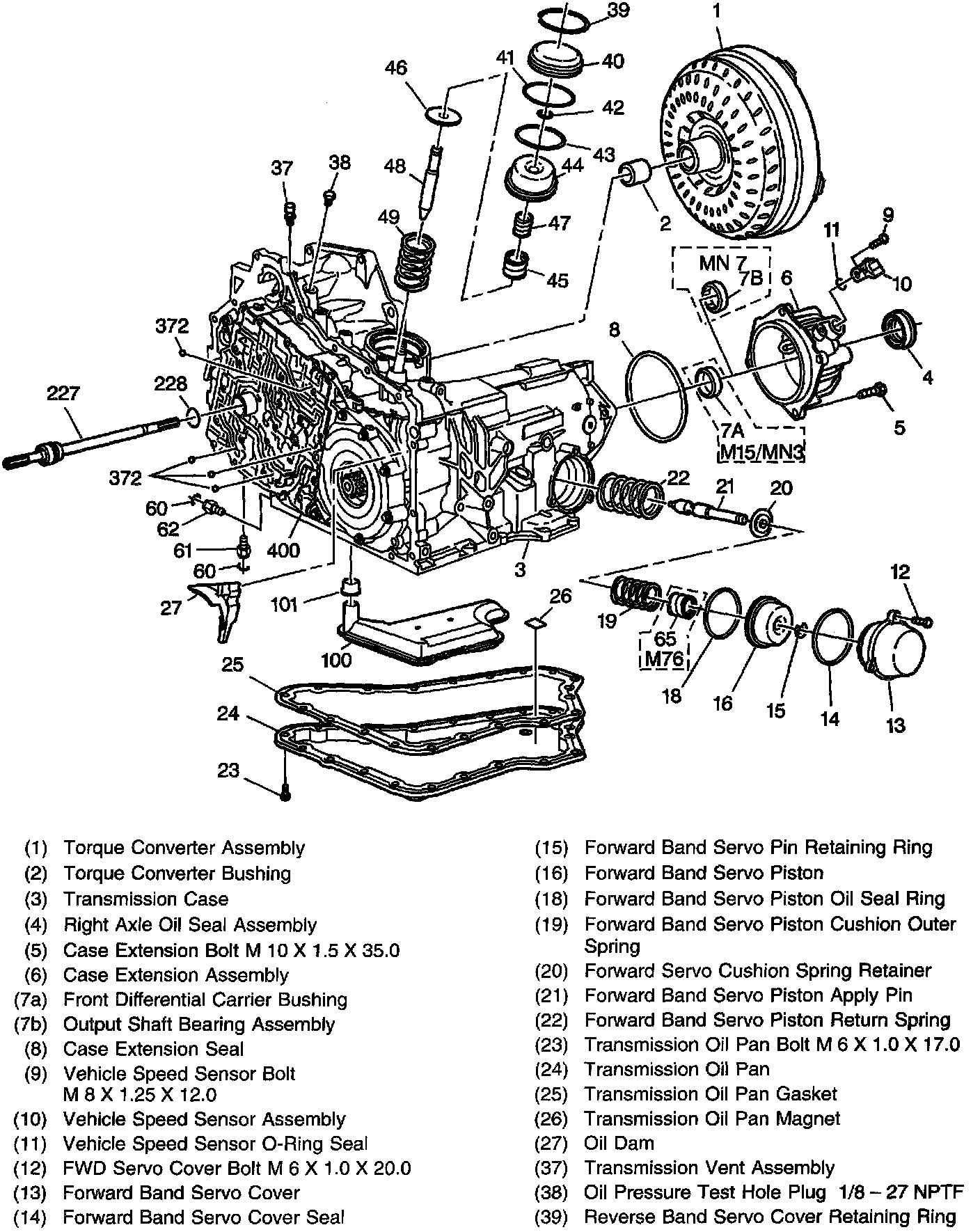

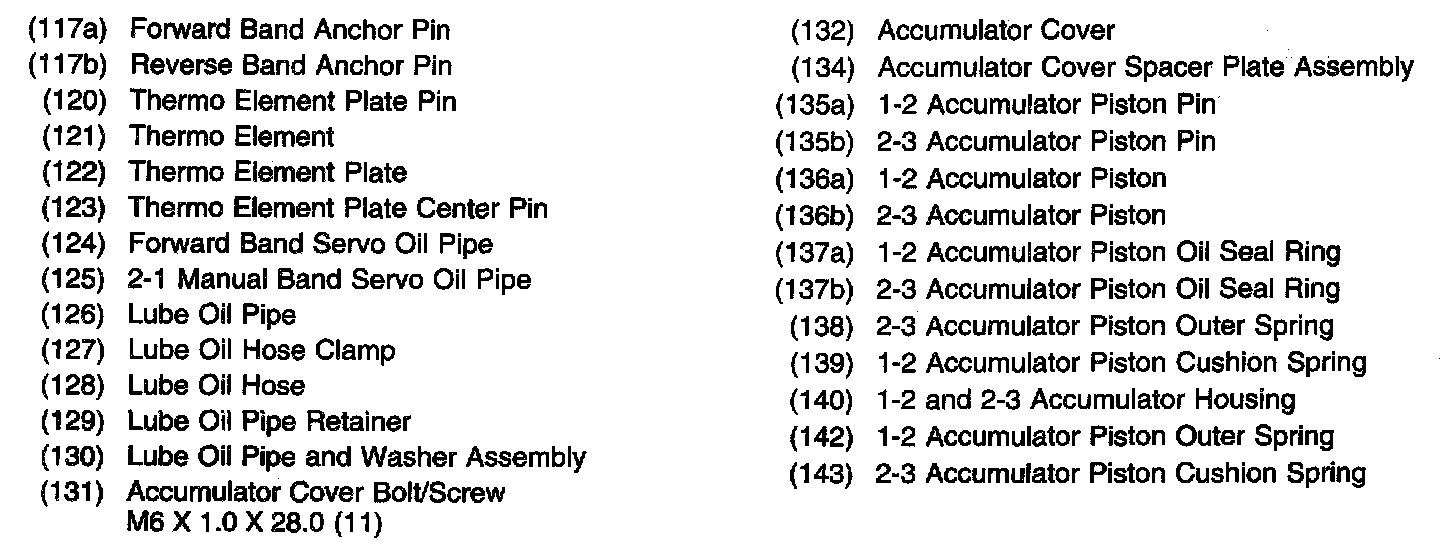

Case and Associated Parts

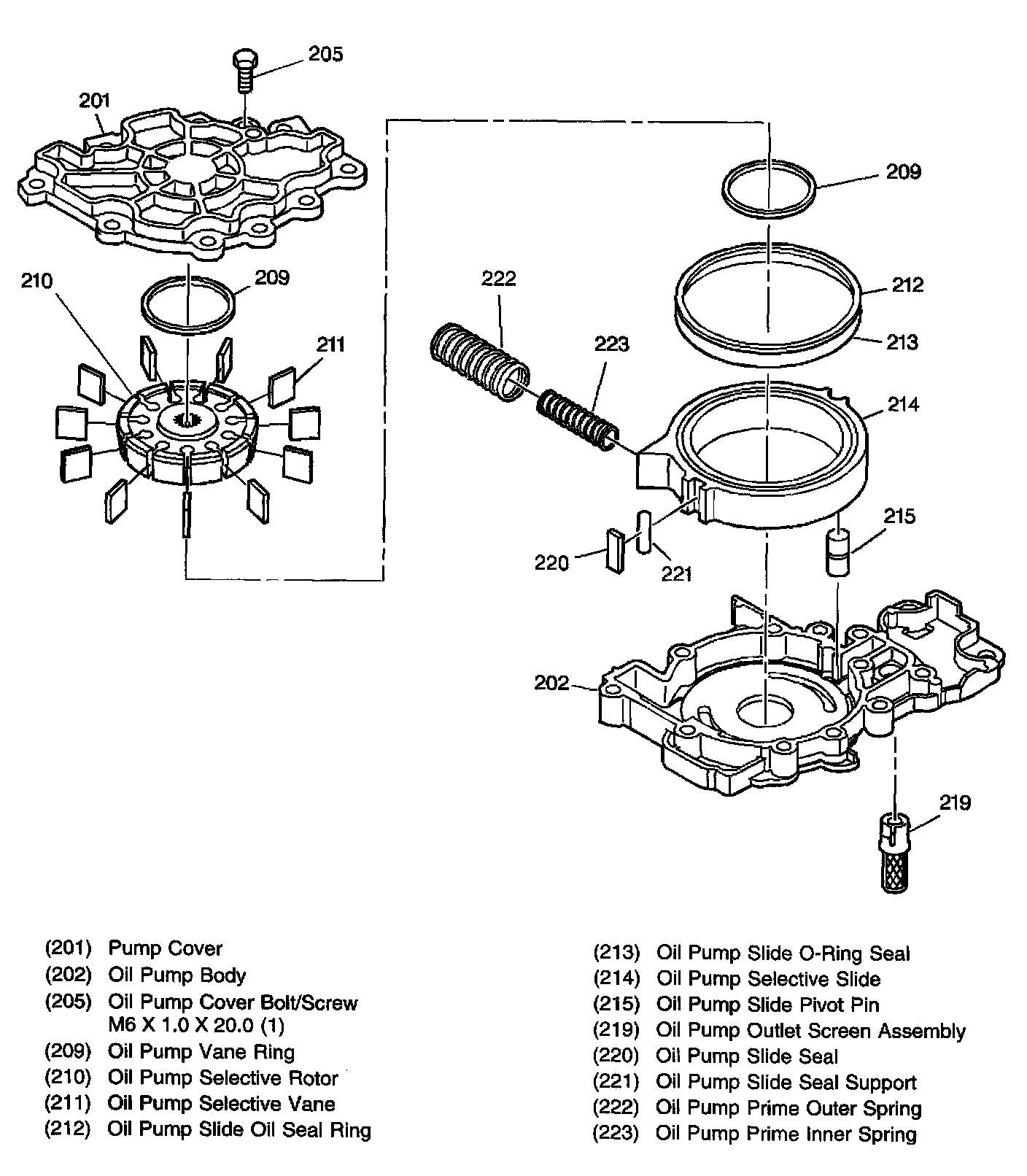

Oil Pump Assembly

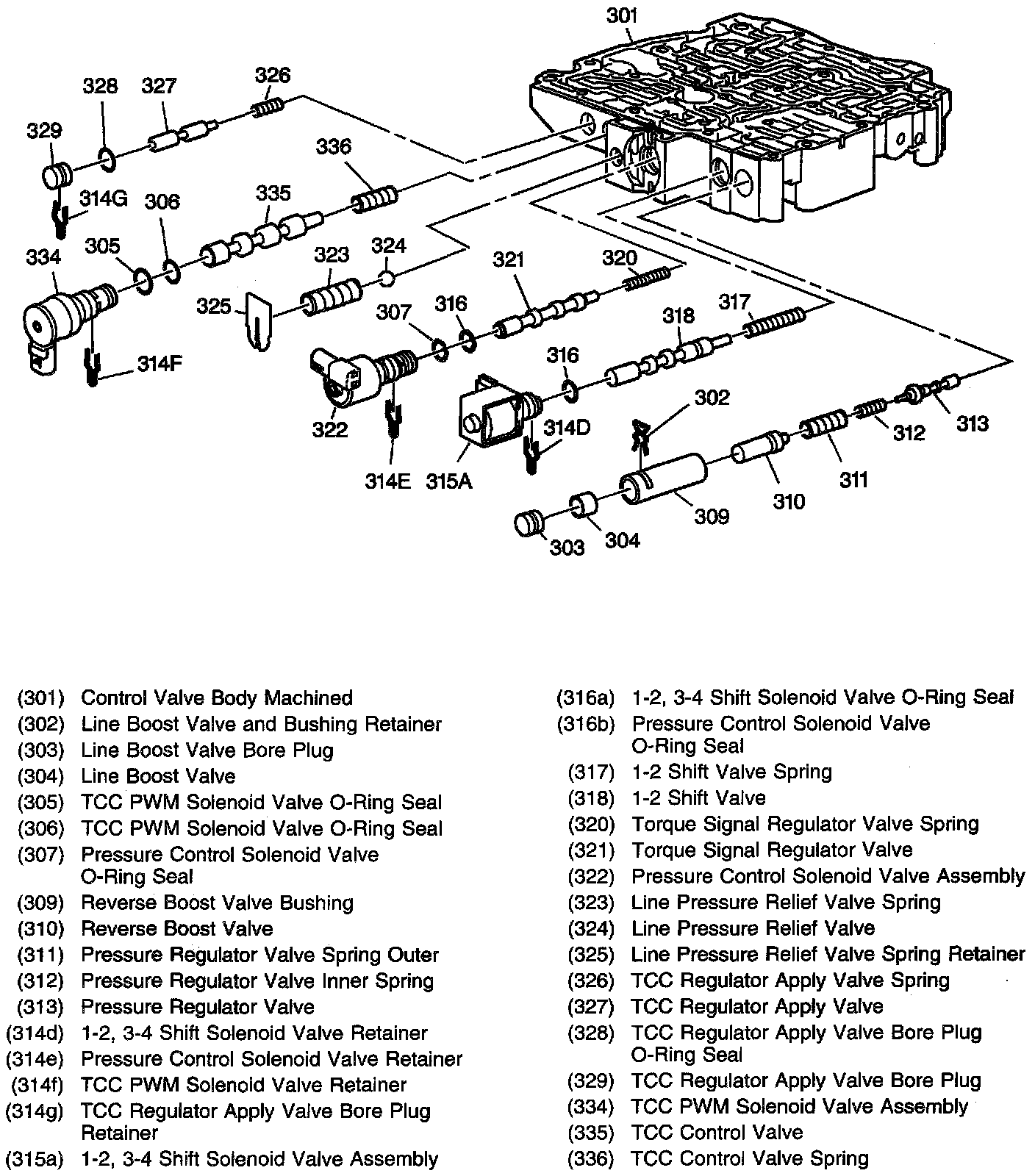

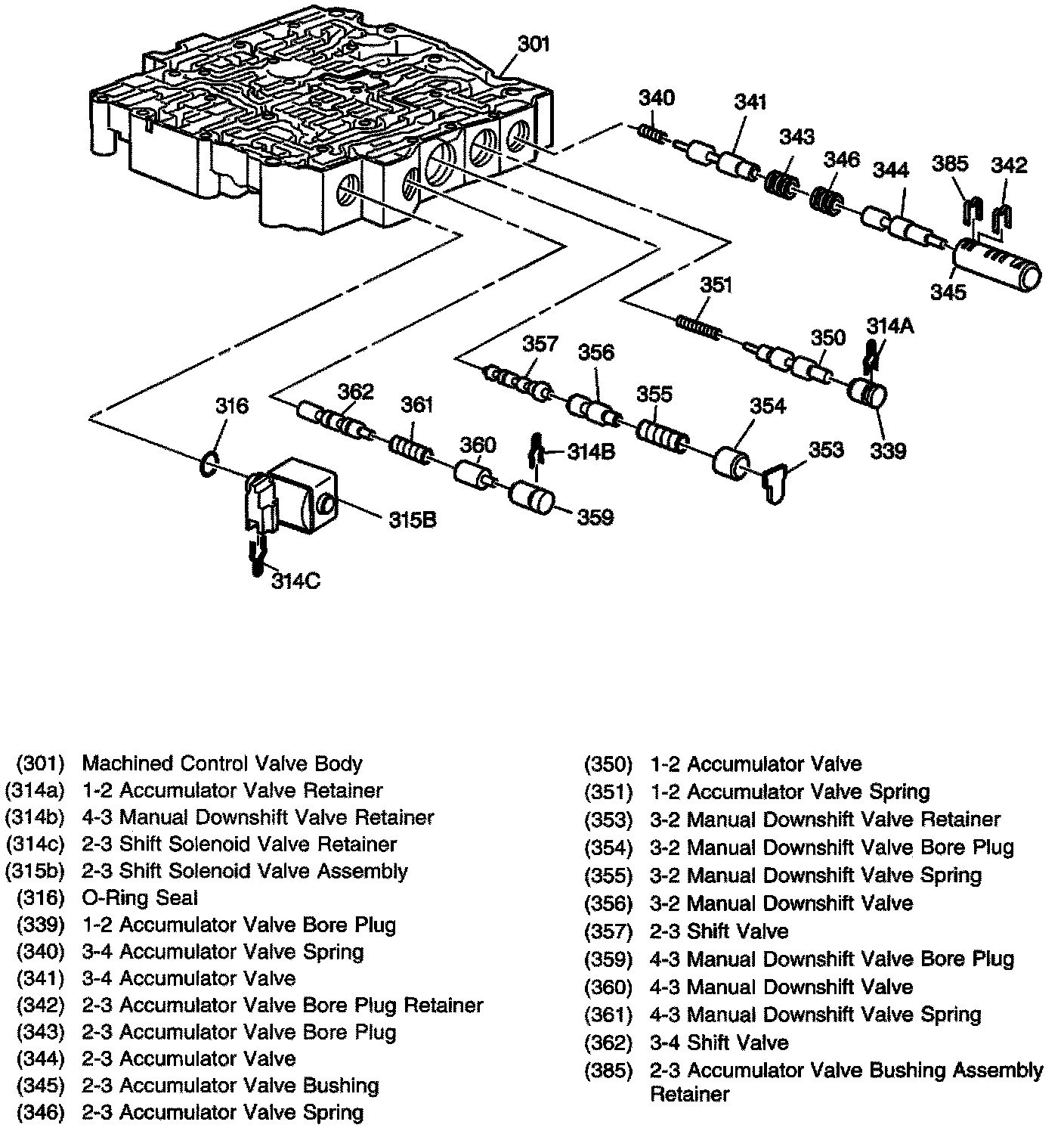

Control Valve Body Assembly

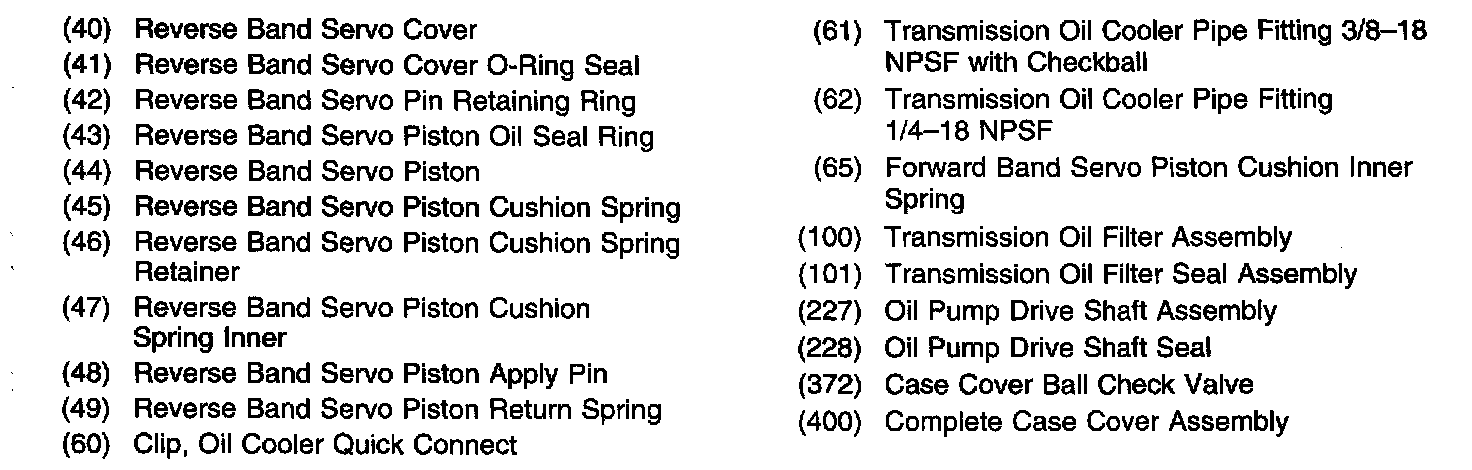

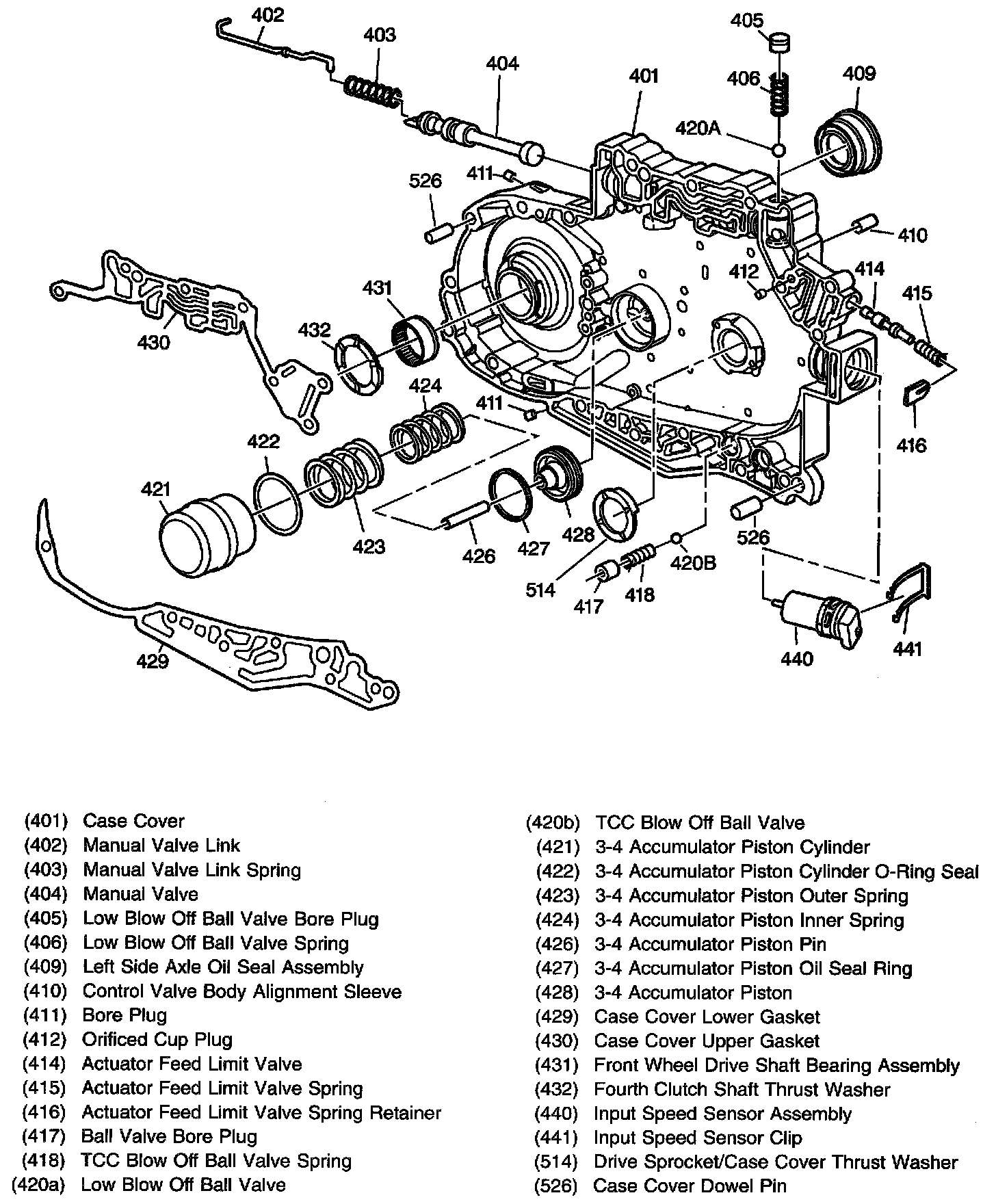

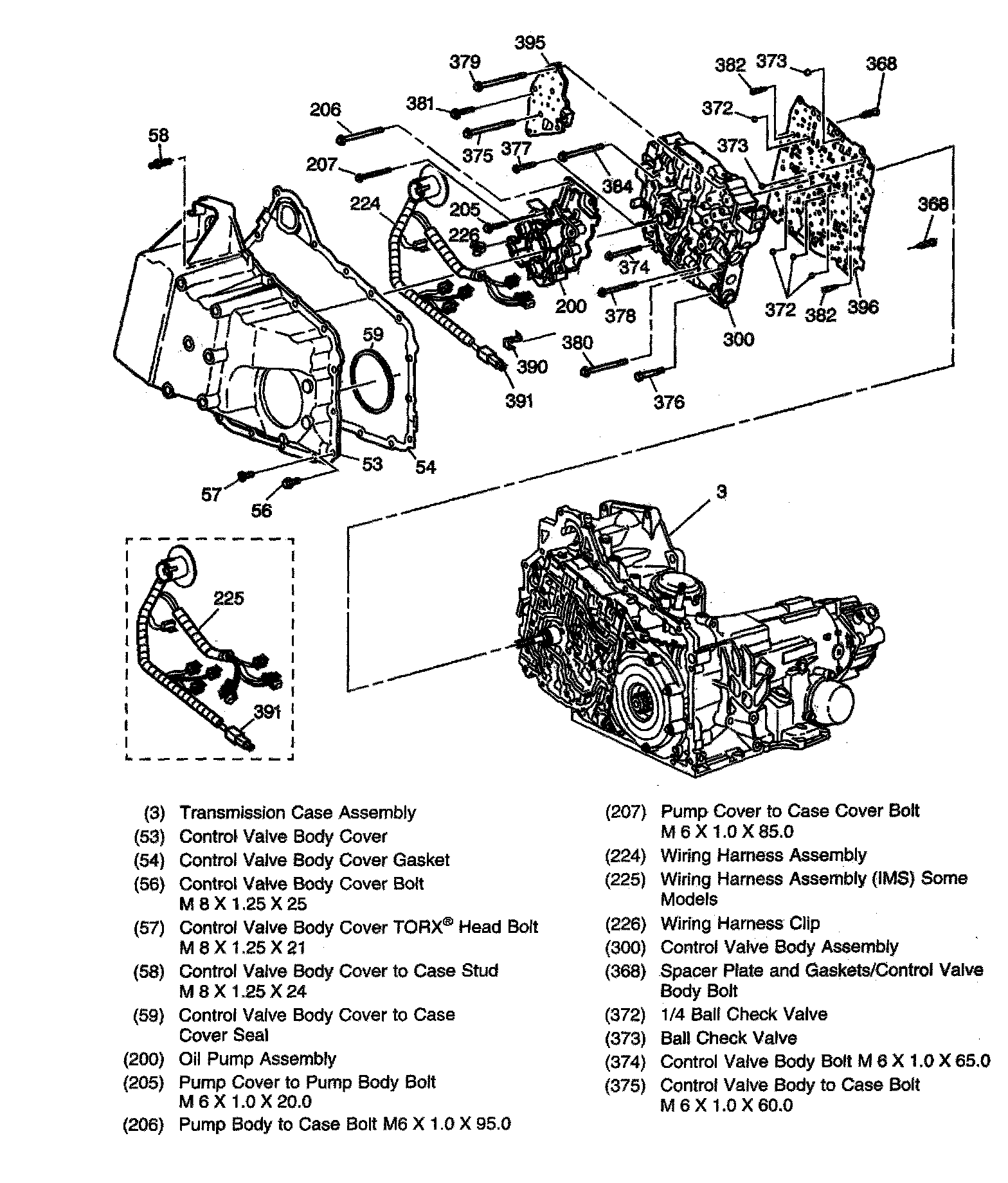

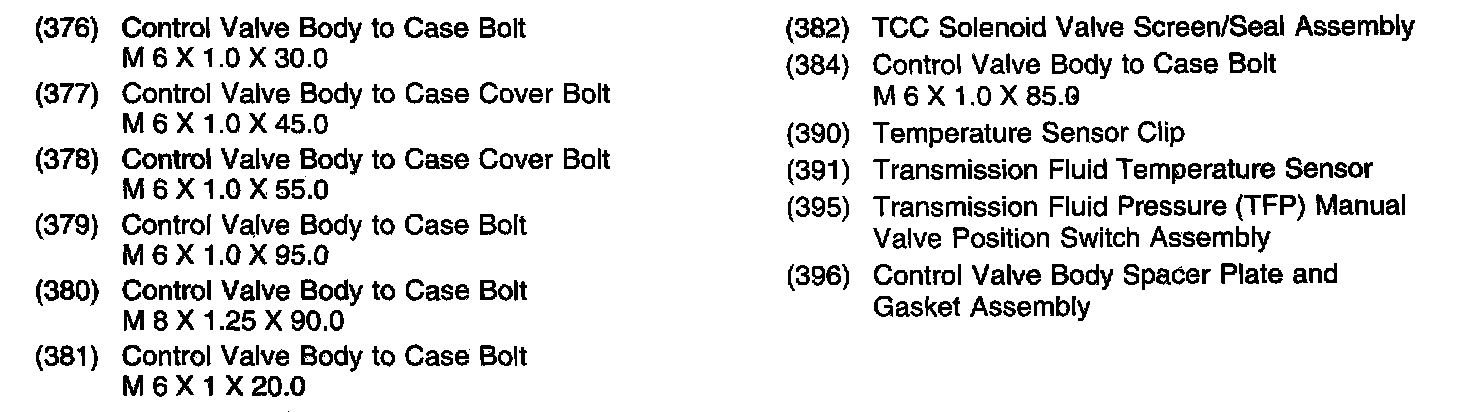

Case Cover Assembly

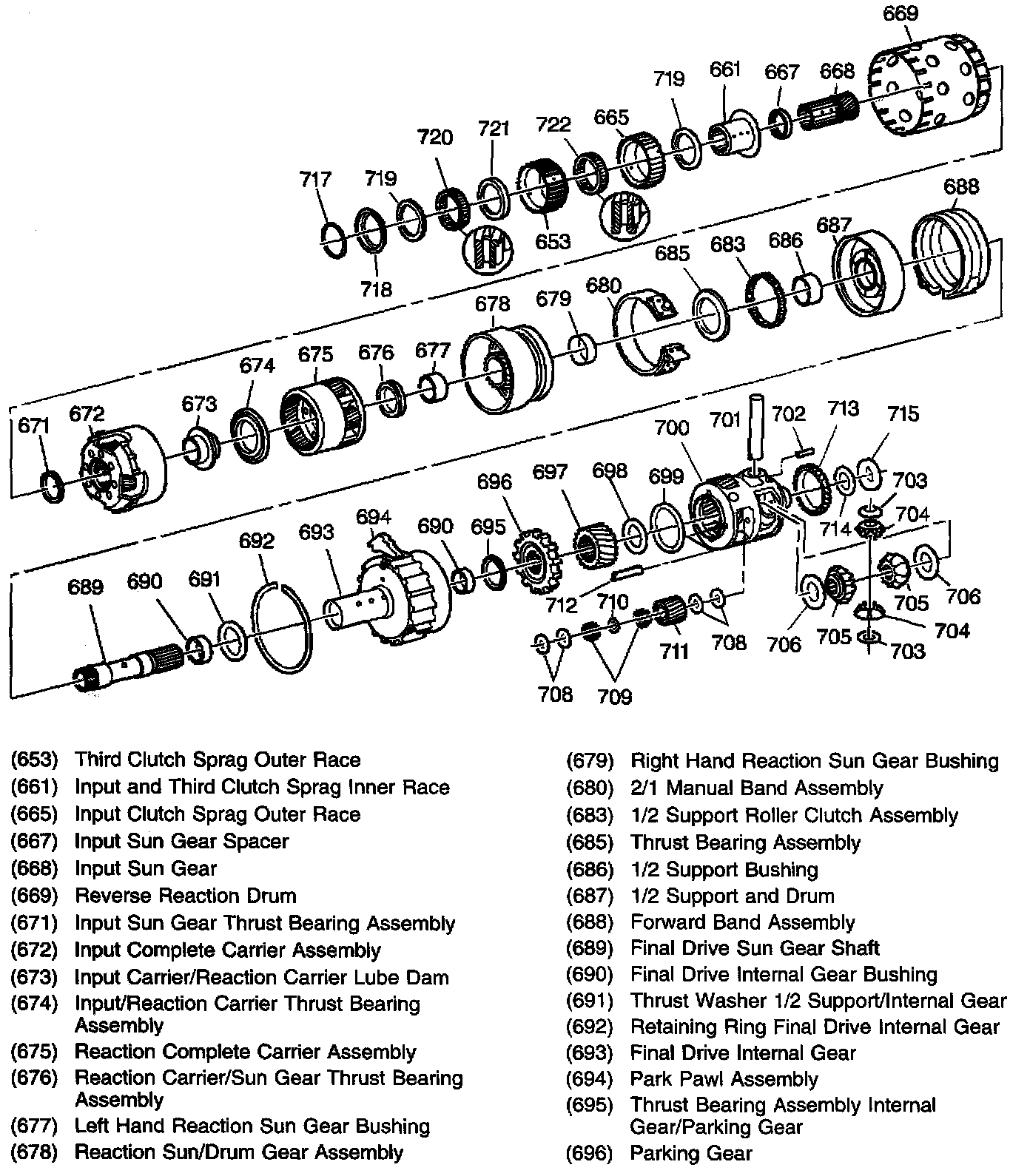

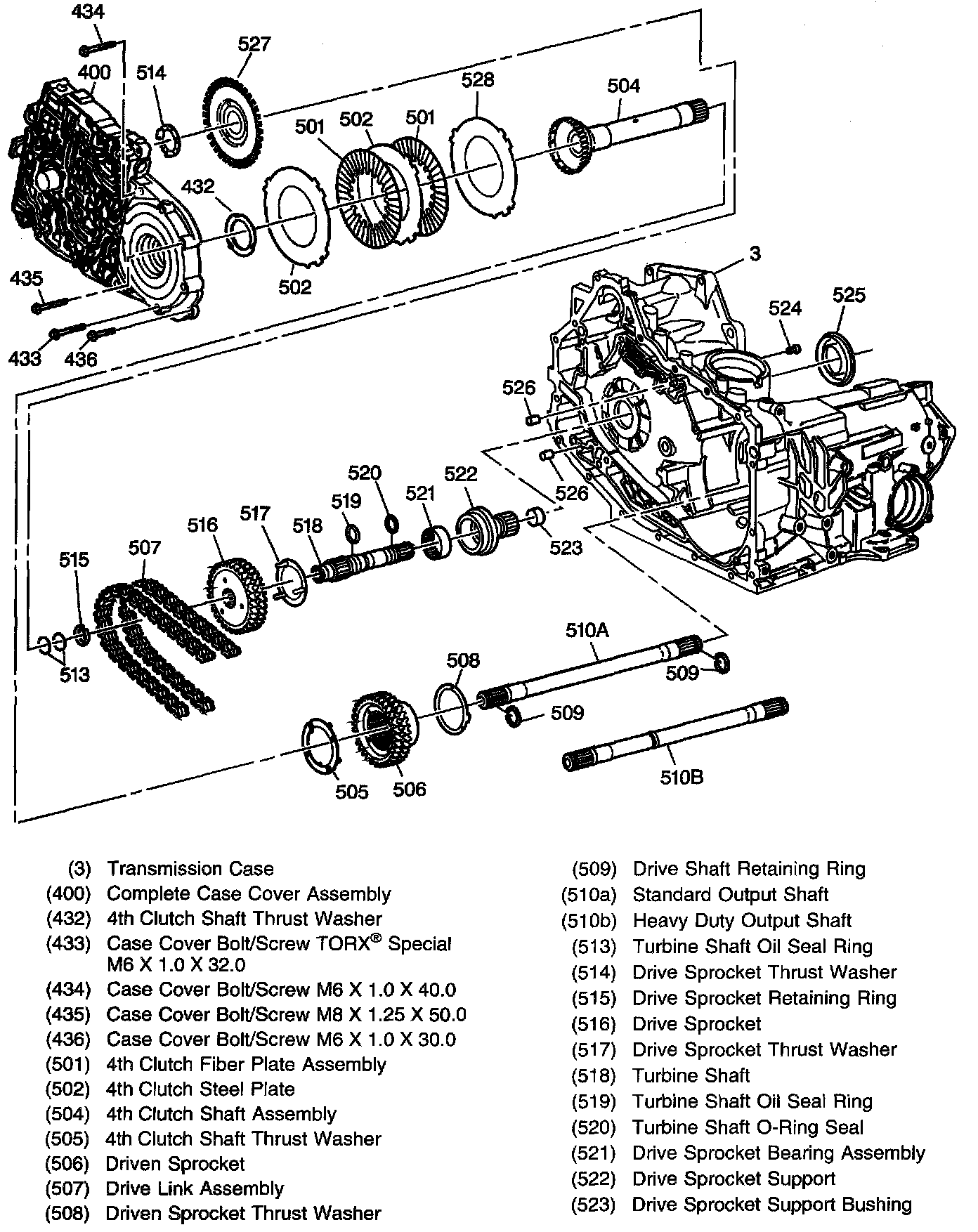

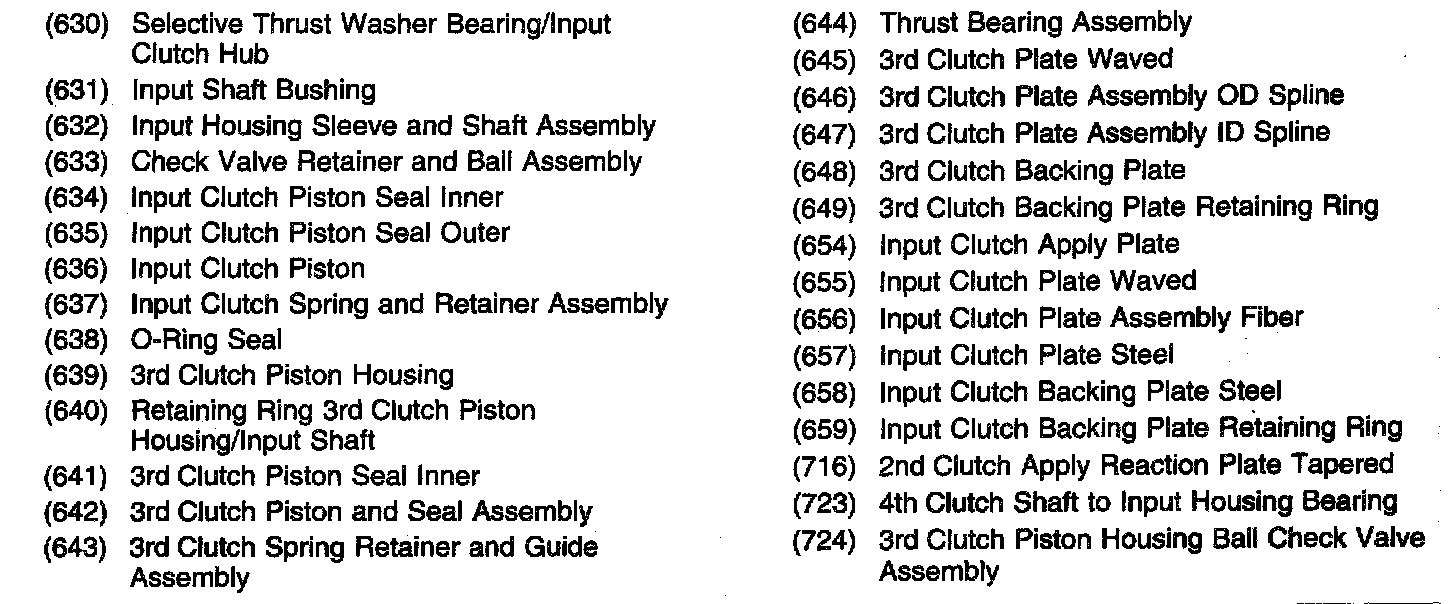

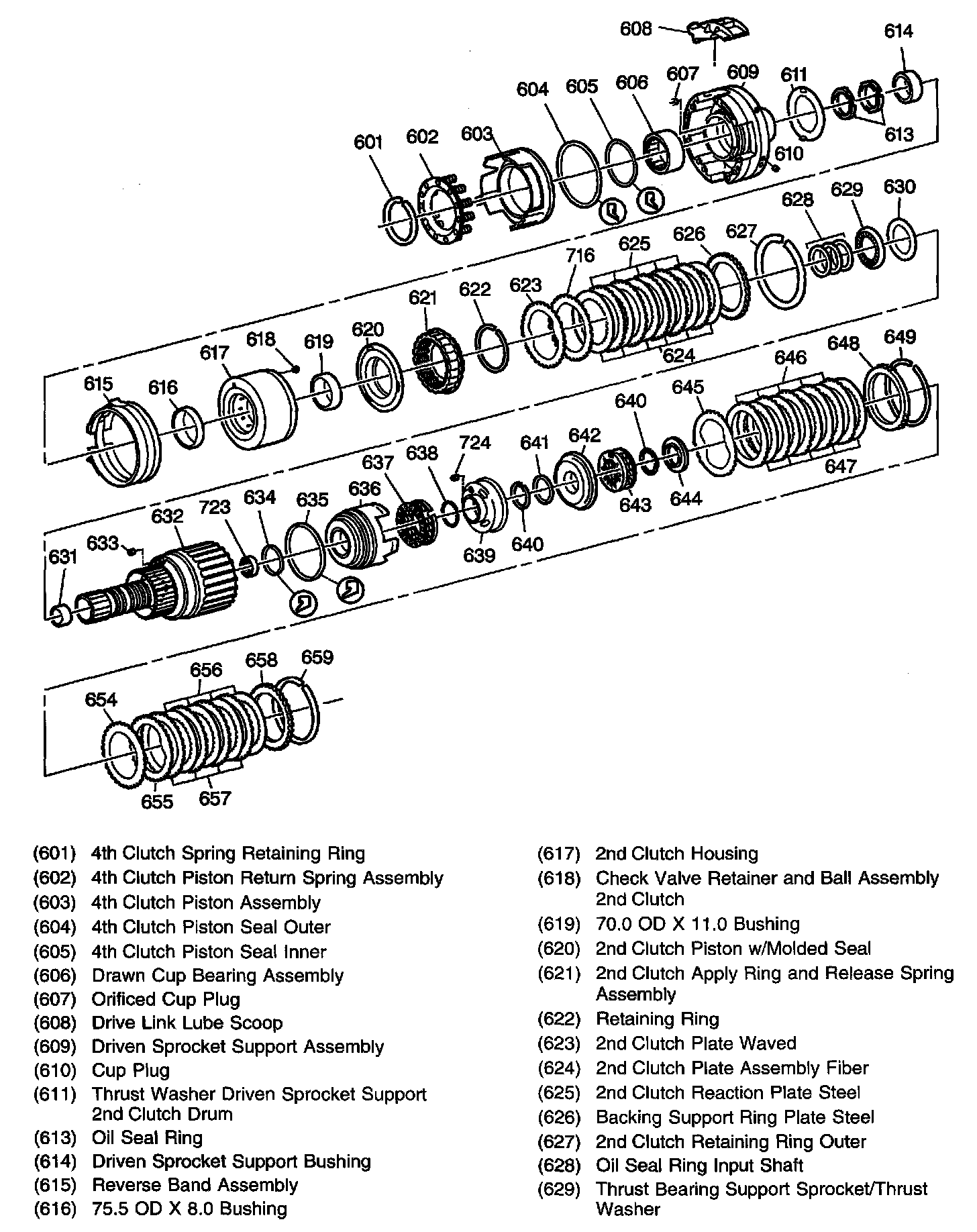

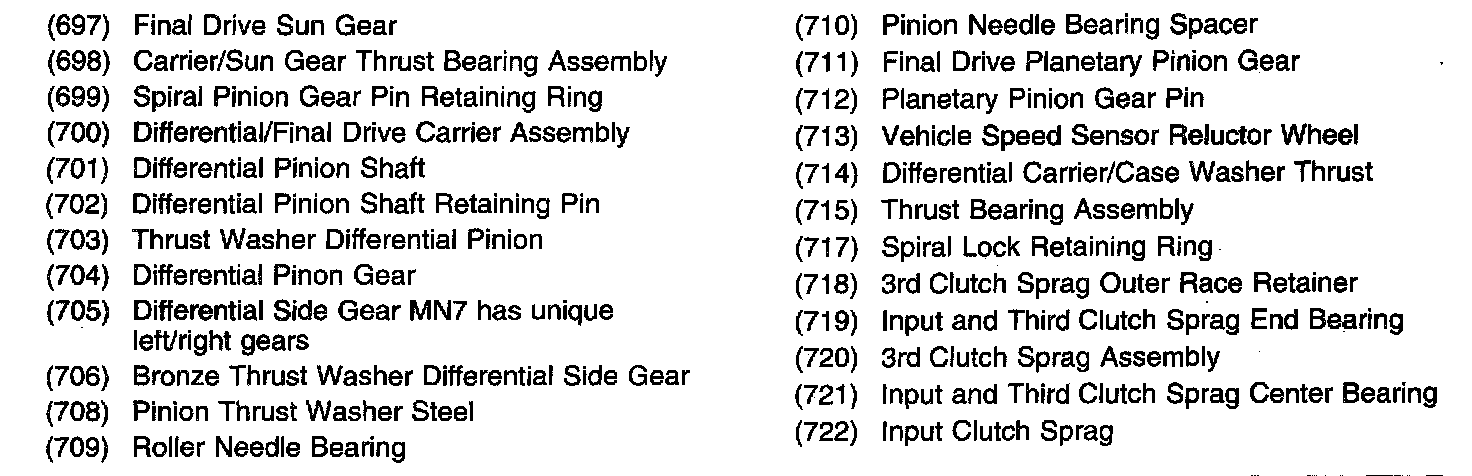

Internal Components

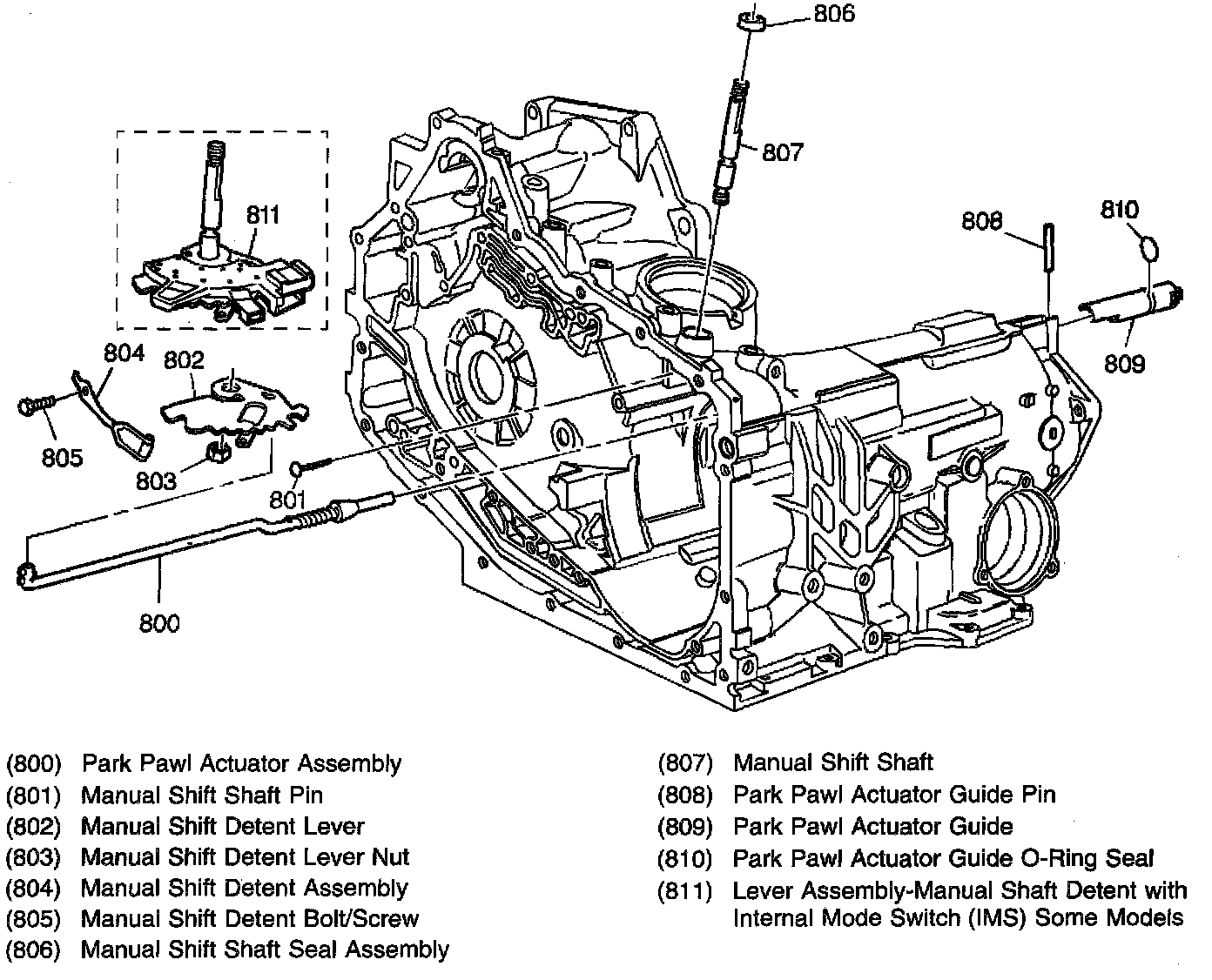

Manual Shaft and Parking System Assembly
