Steering Wheel and Column Component Views

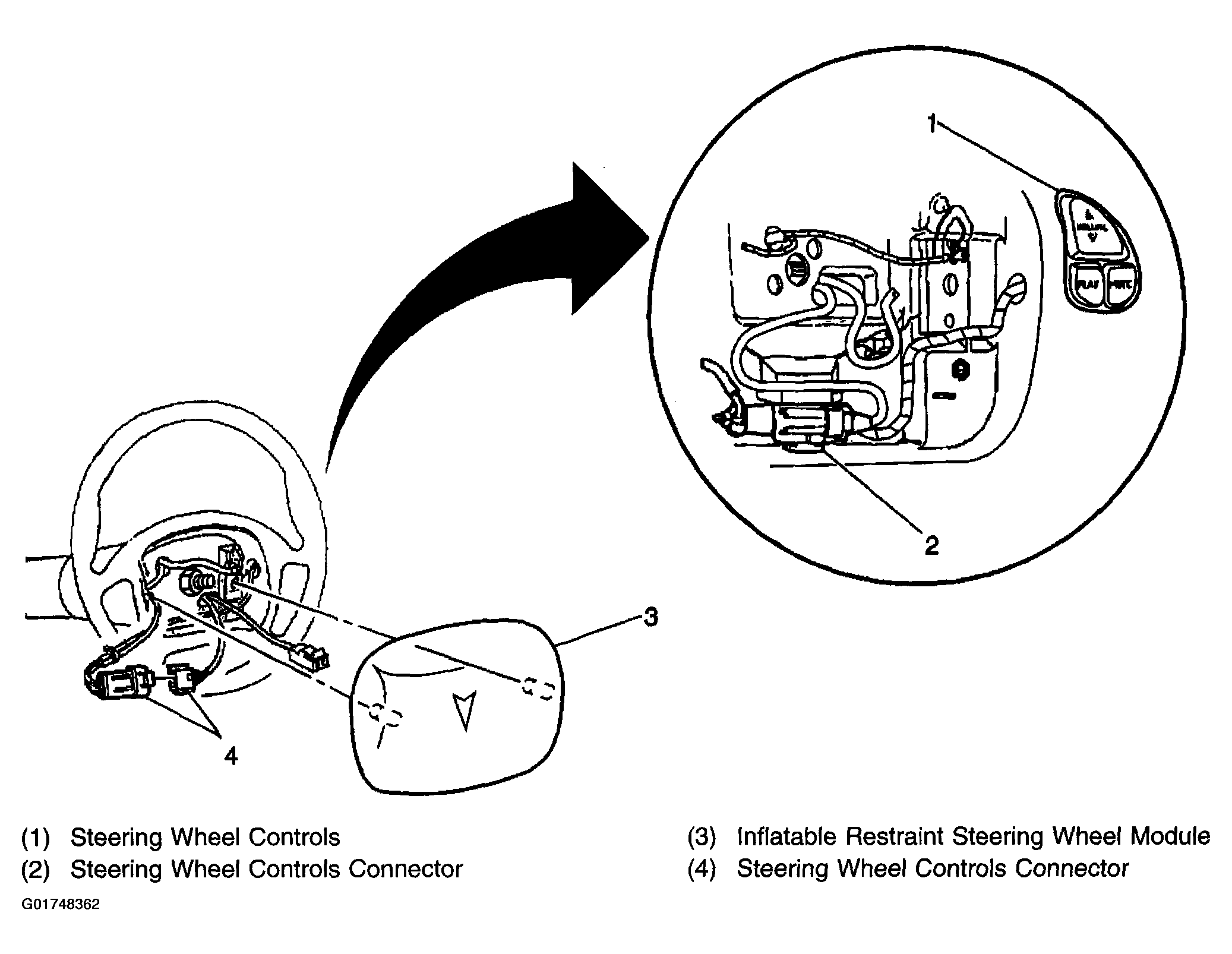

Fig 1: Steering Wheel (Pontiac)
G01748362Courtesy of GENERAL MOTORS CORP.

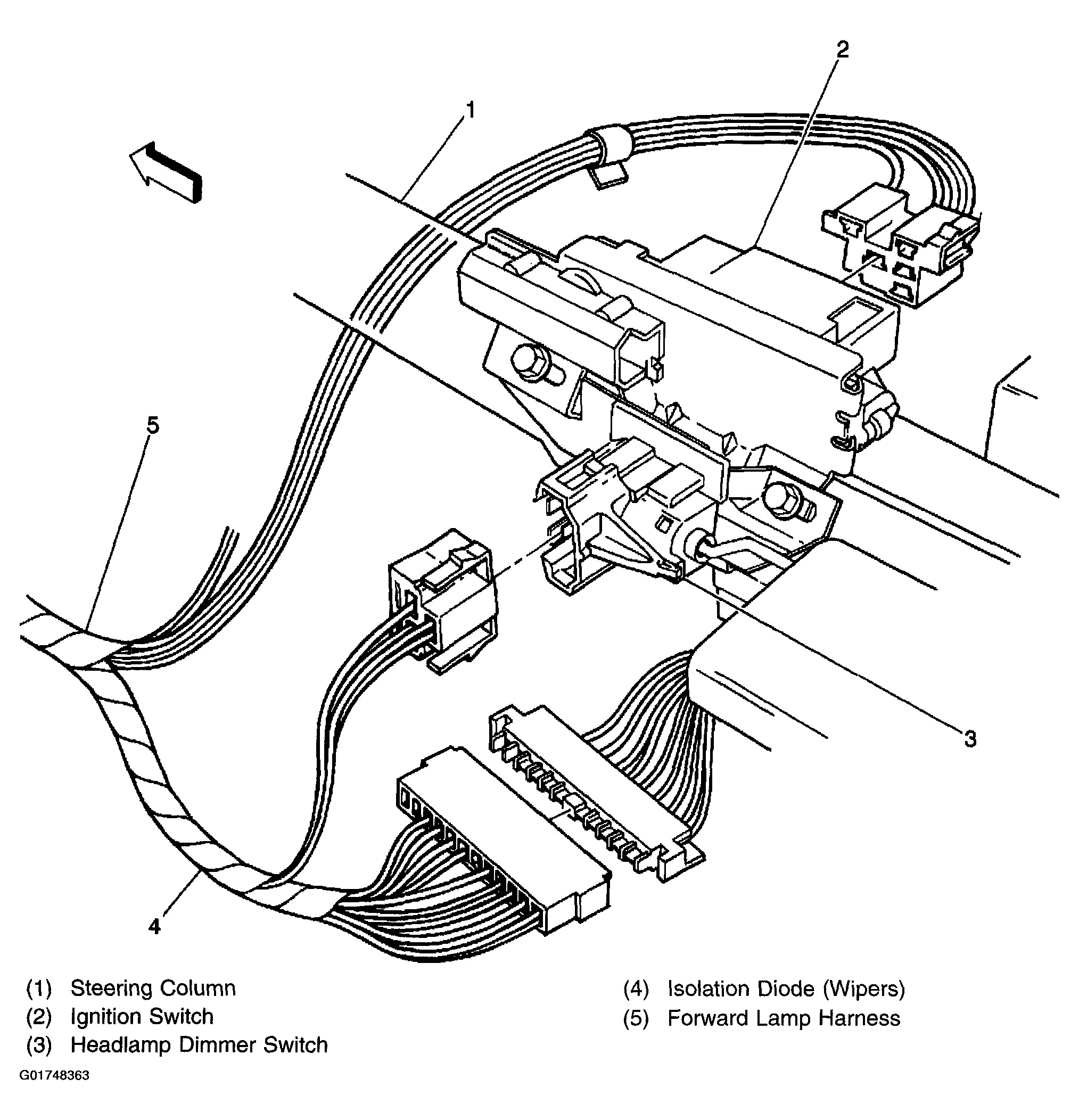

Fig 2: Base of Steering Column
G01748363Courtesy of GENERAL MOTORS CORP.
