Disassembled Views

WARNING: This page is about a different variant/trim than selected.

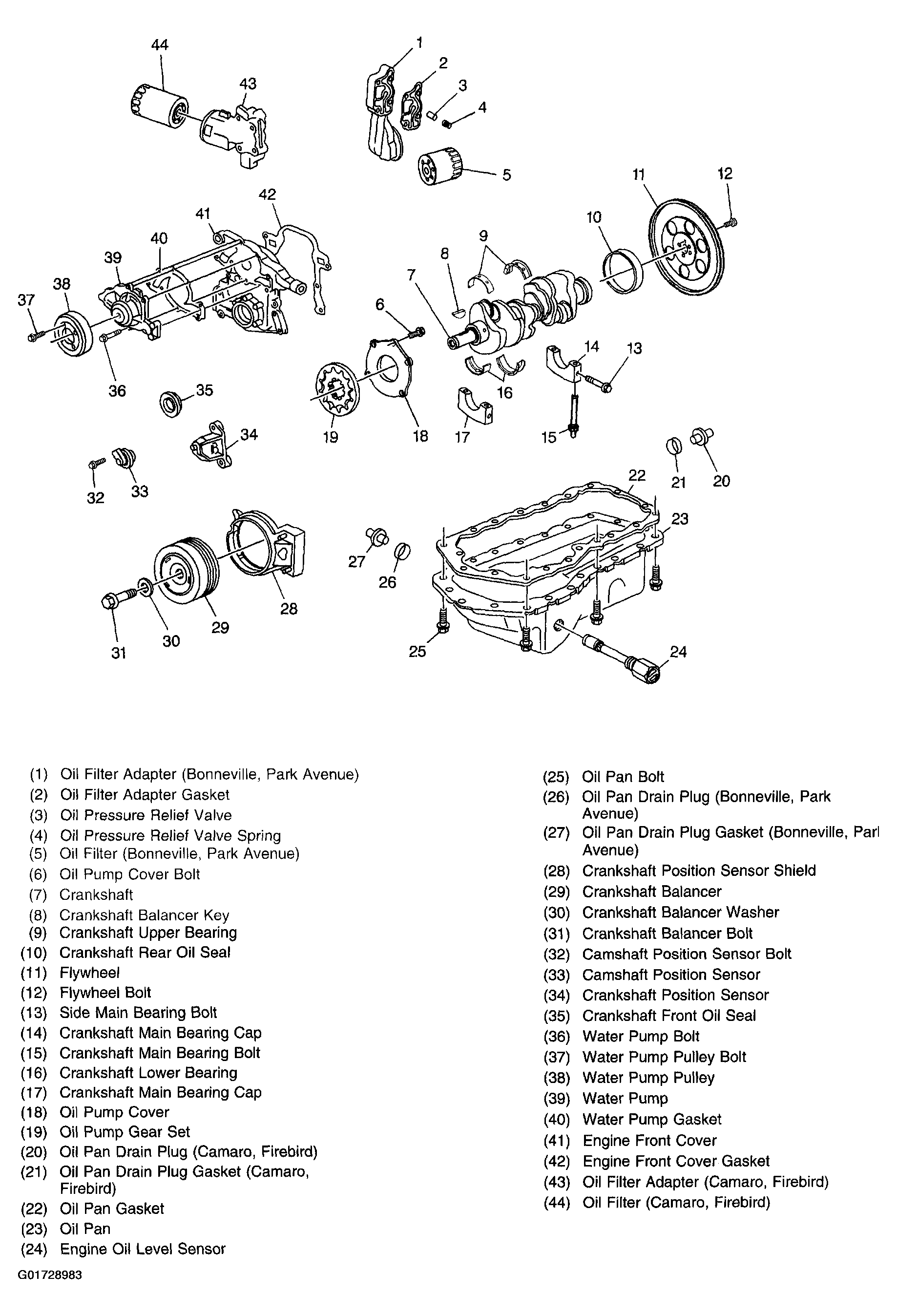

Fig 1: Engine Block and Components

Courtesy of GENERAL MOTORS CORP.

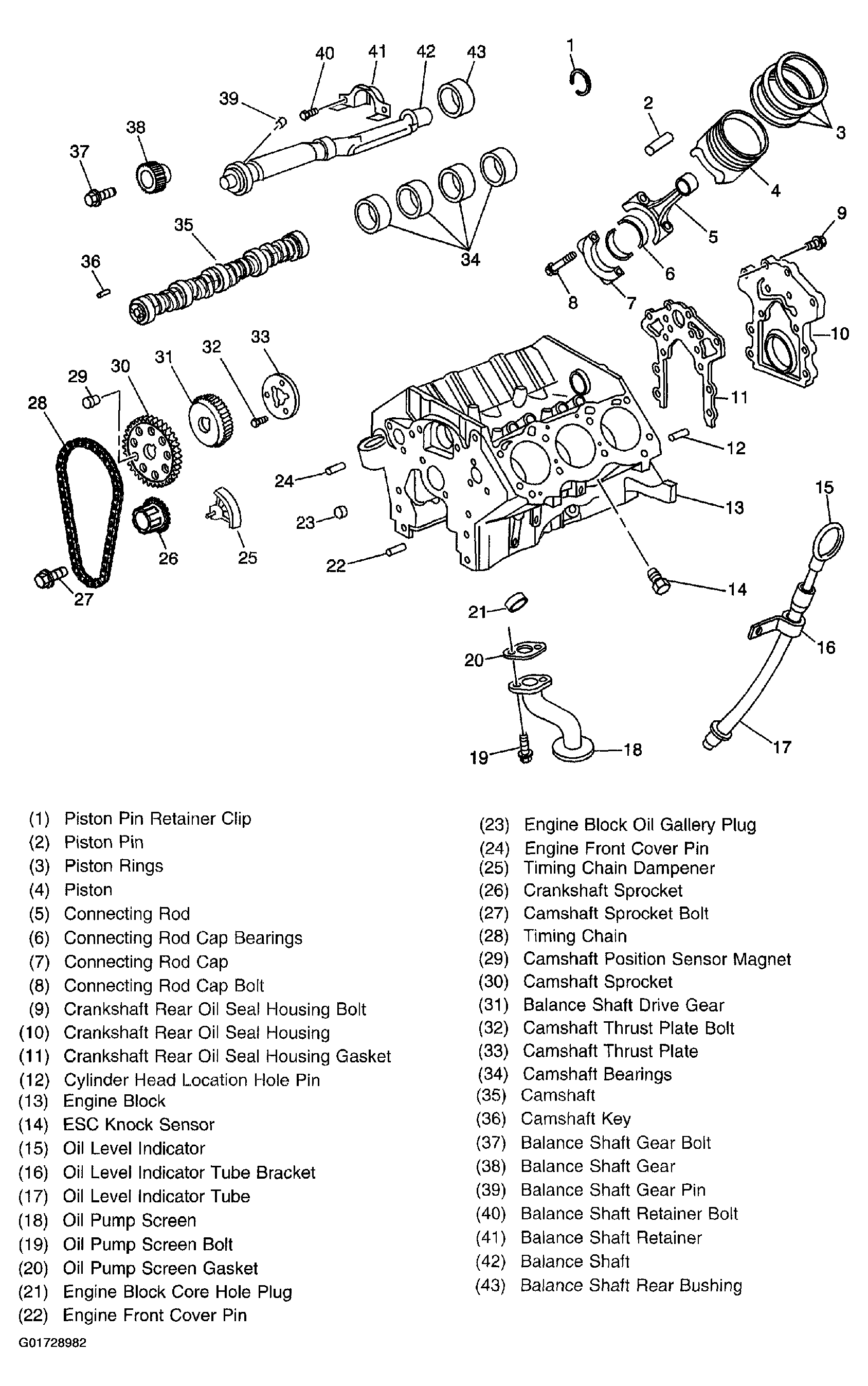

Fig 2: Crankshaft and Components

Courtesy of GENERAL MOTORS CORP.

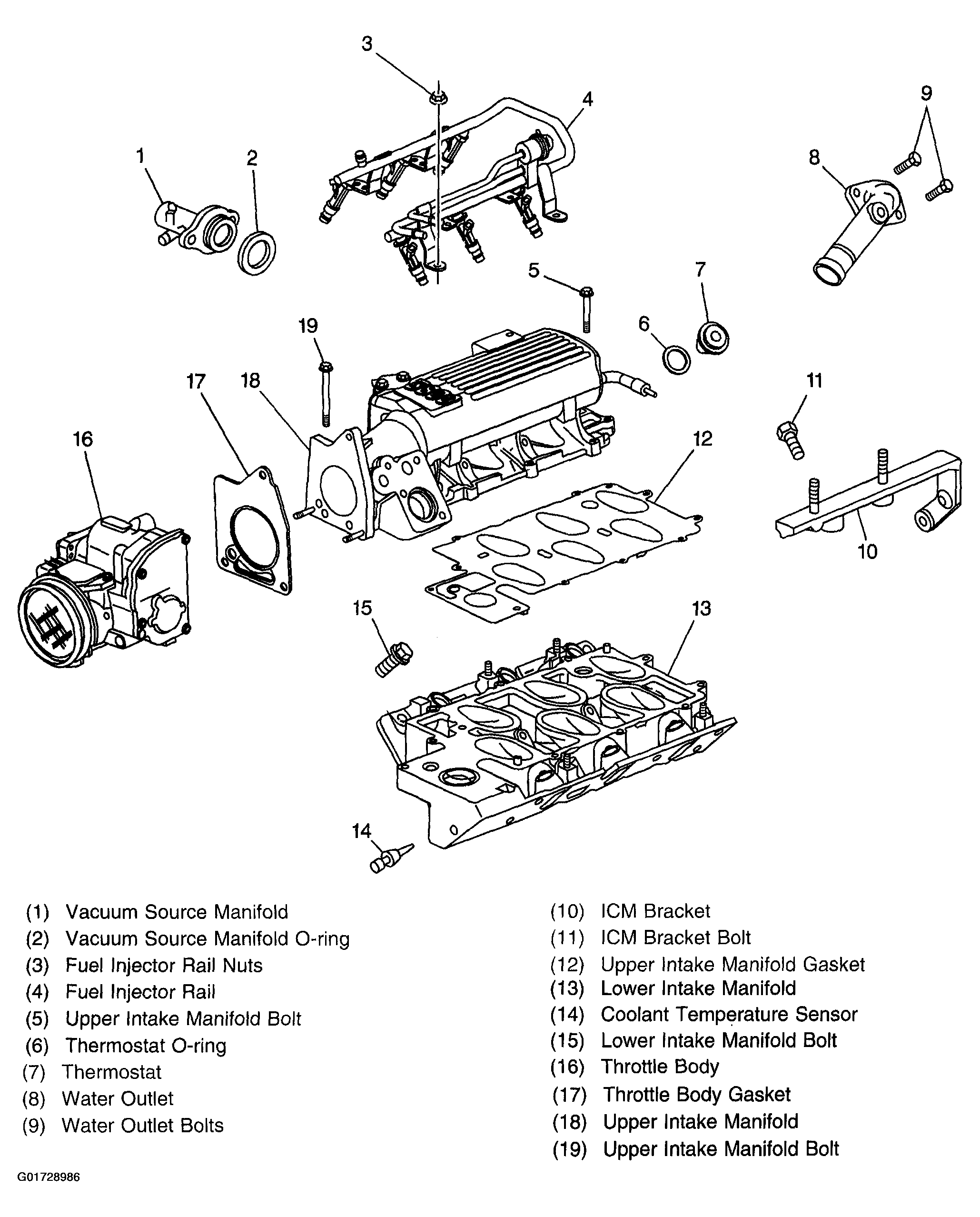

Fig 3: Intake Manifolds and Components

Courtesy of GENERAL MOTORS CORP.

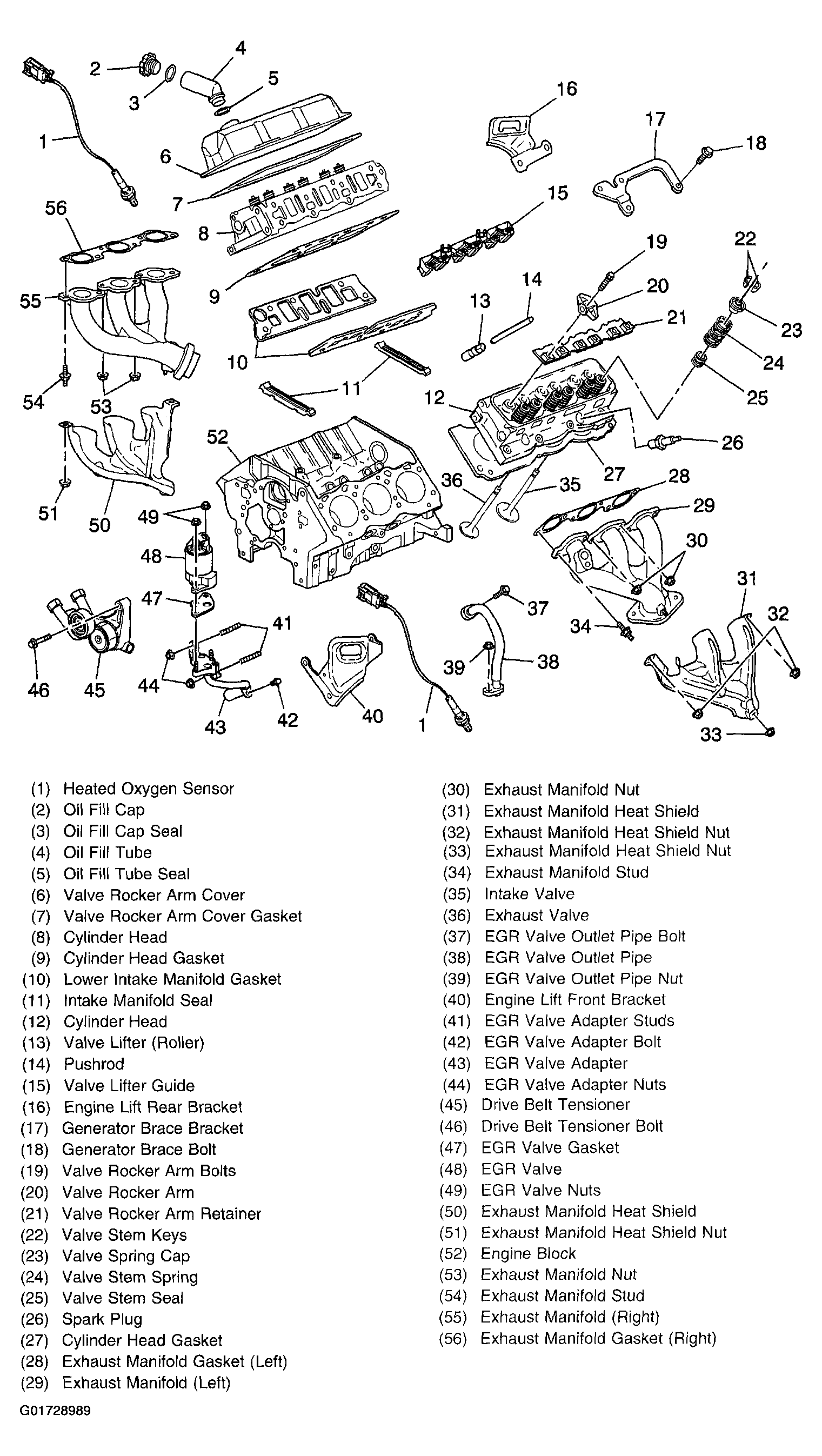

Fig 4: Cylinder Head and Components (F)

Courtesy of GENERAL MOTORS CORP.
